Processor	80386DX
Processor Speed	25/33/40MHz
Chip Set	VLSI
Max. Onboard DRAM	16MB (8MB on external memory card)
Cache	64/256KB
BIOS	AMI/DTK
Dimensions	351mm x 306mm
I/O Options	32-bit external memory card slot (PEI-306)
NPU Options	80387/3167

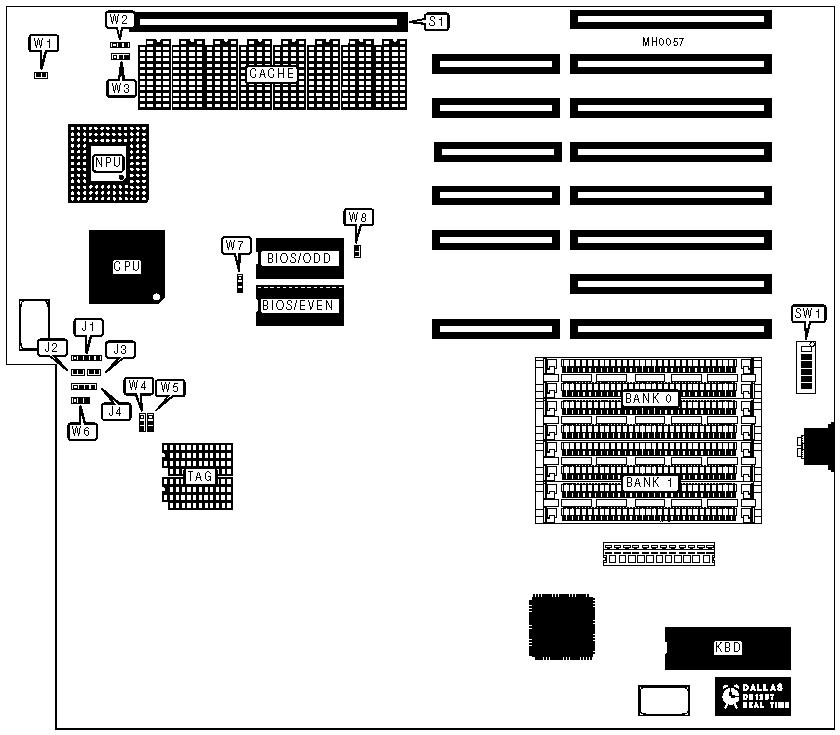

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J1	Speaker	J4
Turbo LED	J2	32-bit external memory card	S1
Reset switch	J3	Turbo switch	W6

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	NPU disabled	W1	Closed
	NPU enabled	W1	Open
»	CPU speed select fast	W6	Open
	CPU speed select slow	W6	pins 1 & 2 closed
	CPU speed switchable from keyboard	W6	pins 2 & 3 closed
»	BIOS type select 27256	W7	pins 1 & 2 closed
	BIOS type select 27512	W7	pins 2 & 3 closed
»	DMA speed select 8MHz	W8	Closed
	DMA speed select 6MHz	W8	Open
»	Monitor type select monochrome	SW1/6	Off
	Monitor type select color	SW1/6	On

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 256K x 9	(4) 1M x 9
8MB	(4) 1M x 9	(4) 1M x 9

DRAM JUMPER CONFIGURATION
Size	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	W2	W3
1MB	On	On	On	On	On	pins 2 & 3 closed	pins 2 & 3 closed
2MB	On	On	On	On	On	pins 2 & 3 closed	pins 2 & 3 closed
4MB	On	On	Off	On	Off	pins 1 & 2 closed	pins 1 & 2 closed
5MB	Off	On	Off	Off	On	pins 2 & 3 closed	pins 1 & 2 closed
8MB	Off	On	Off	Off	Off	pins 1 & 2 closed	pins 1 & 2 closed
12MB	Off	Off	On	N/A	N/A	N/A	N/A
16MB	Off	Off	Off	N/A	N/A	N/A	N/A

CACHE CONFIGURATION
Size	Bank 0	Tag
64KB	(8) 16K x 4	(2) 16K x 4
256KB	(8) 64K x 4	(2) 64K x 4

CACHE JUMPER CONFIGURATION
Size	W4	W5
64KB	pins 1 & 2 closed	pins 1 & 2 closed
256KB	pins 2 & 3 closed	pins 2 & 3 closed
