Processor	80486DX
Processor Speed	33/40MHz
Chip Set	Intel
Max. Onboard DRAM	64MB
Cache	None
BIOS	Phoenix
Dimensions	305mm x 330mm
I/O Options	Proprietary CPU module slot, auxiliary keyboard connector
NPU Options	None

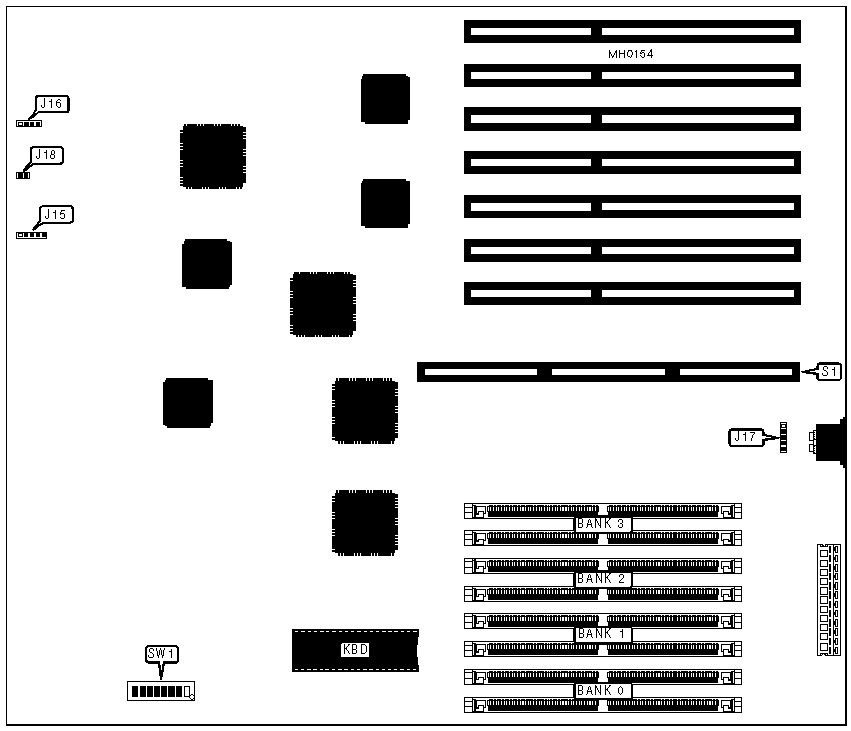

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J15	Reset switch	J18
Speaker	J16	Proprietary CPU module	S1
Auxiliary keyboard connector	J17

USER CONFIGURABLE SETTINGS
Function		Switch	Position
»	Factory configured - do not alter	SW1/1	Off
»	Factory configured - do not alter	SW1/2	Off
»	Factory configured - do not alter	SW1/3	Off
»	Factory configured - do not alter	SW1/4	Off
»	Factory configured - do not alter	SW1/5	Off
»	Factory configured - do not alter	SW1/6	Off
»	Factory configured - do not alter	SW1/7	Off
»	Factory configured - do not alter	SW1/8	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
2MB	(2) 512K x 36	NONE	NONE	NONE
4MB	(2) 512K x 36	(2) 512K x 36	NONE	NONE
6MB	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36	NONE
8MB	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
8MB	(2) 1M x 36	NONE	NONE	NONE
10MB	(2) 1M x 36	(2) 512K x 36	NONE	NONE
12MB	(2) 1M x 36	(2) 512K x 36	(2) 512K x 36	NONE
14MB	(2) 1M x 36	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
16MB	(2) 1M x 36	(2) 1M x 36	NONE	NONE
16MB	(2) 2M x 36	NONE	NONE	NONE
18MB	(2) 1M x 36	(2) 1M x 36	(2) 512K x 36	NONE
18MB	(2) 2M x 36	(2) 512K x 36	NONE	NONE
20MB	(2) 1M x 36	(2) 1M x 36	(2) 512K x 36	(2) 512K x 36
20MB	(2) 2M x 36	(2) 512K x 36	(2) 512K x 36	NONE
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	NONE
24MB	(2) 2M x 36	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
24MB	(2) 2M x 36	(2) 1M x 36	NONE	NONE
26MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	(2) 512K x 36
26MB	(2) 2M x 36	(2) 1M x 36	(2) 512K x 36	NONE
28MB	(2) 2M x 36	(2) 1M x 36	(2) 512K x 36	(2) 512K x 36
32MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 2M x 36	(2) 2M x 36	NONE	NONE
34MB	(2) 2M x 36	(2) 2M x 36	(2) 512K x 36	NONE
36MB	(2) 2M x 36	(2) 2M x 36	(2) 512K x 36	(2) 512K x 36
40MB	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36	NONE
42MB	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36	(2) 512K x 36
48MB	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36
48MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	NONE
50MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	(2) 512K x 36
56MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36
64MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
