Processor	80386SX
Processor Speed	16MHz
Chip Set	Compaq
Max. Onboard DRAM	12MB
Cache	None
BIOS	Compaq
Dimensions	332mm x 333mm
I/O Options	VGA feature connector, floppy drive interface, IDE interface, proprietary system memory card slot, parallel port, serial port, VGA port, bus mouse
NPU Options	80387SX

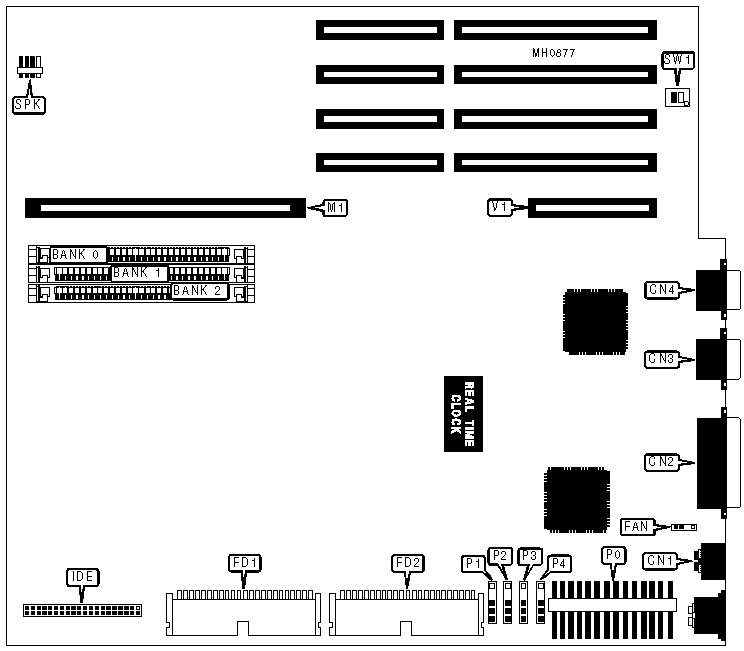

CONNECTIONS
Purpose	Location	Purpose	Location
Bus mouse port	CN1	IDE interface	IDE
Parallel port	CN2	Proprietary system memory card	M1
Serial port	CN3	Speaker	SPK
VGA port	CN4	Main power	P0
Fan power	FAN	Drive power plugs	P1-P4
3.5 inch floppy drive interface	FD1	VGA feature connector	V1
5.25 inch floppy drive interface	FD2

USER CONFIGURABLE SETTINGS
Function		Switch	Position
»	VGA port enabled	SW1/1	On
	VGA port disabled	SW1/1	Off
»	Password enabled	SW1/2	On
	Password disabled	SW1/2	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
1MB	1M x 9	NONE	NONE
2MB	1M x 9	1M x 9	NONE
3MB	1M x 9	1M x 9	1M x 9
4MB	4M x 9	NONE	NONE
5MB	4M x 9	1M x 9	NONE
6MB	4M x 9	1M x 9	1M x 9
8MB	4M x 9	4M x 9	NONE
9MB	4M x 9	4M x 9	1M x 9
12MB	4M x 9	4M x 9	4M x 9
