COMPUTREND SYSTEMS, INC.

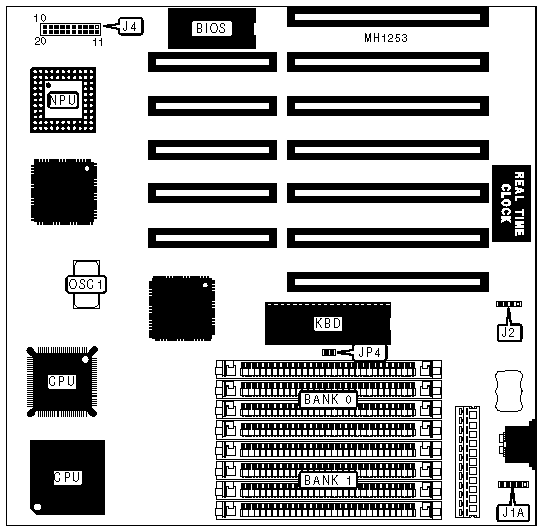

MX-386/486 (MS-3132 Ver. 1.0)
|
Processor |
80386DX/CX486DLC |
|
Processor Speed |
33/40MHz |
|
Chip Set |
MXIC |
|
Max. Onboard DRAM |
32MB |
|
SRAM Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
220mm x 220mm |
|
I/O Options |
Auxillary keyboard connector |
|
NPU Options |
80387/CX387DLC |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Auxillary keyboard |
J1A |
Turbo LED |
J4/12 & 13 |
|
External battery |
J2 |
Turbo switch |
J4/15 - 17 |
|
Power LED & keylock |
J4/1 - 5 |
Reset switch |
J4/19 & 20 |
|
Speaker |
J4/7 - 10 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Battery select internal |
J2 |
pins 2 & 3 closed |
|
Battery select external |
J2 |
Closed | |
| » |
Monitor type select monochrome |
JP4 |
Open |
|
Monitor type select color |
JP4 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
