DELL COMPUTER CORPORATION
SYSTEM 333D
|
Processor |
80386DX |
|
Processor Speed |
33MHz |
|
Chip Set |
VLSI |
|
Max. Onboard DRAM |
32MB (16MB on external memory card) |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
External memory card, floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port |
|
NPU Options |
80387DX/3167 |
|

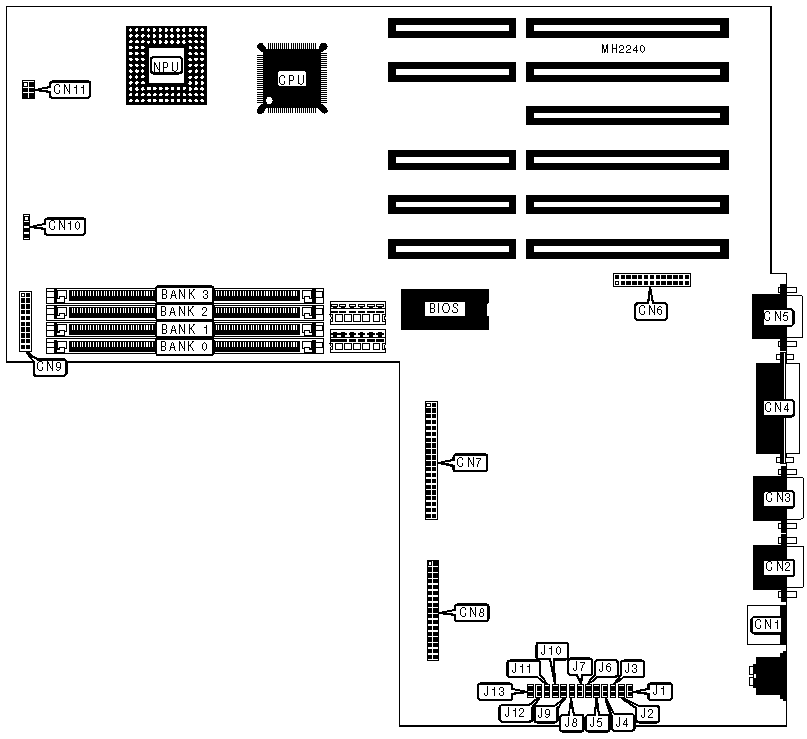

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse port |
CN1 |
VGA feature connector |
CN6 |
|
Serial port 1 |
CN2 |
IDE interface |
CN7 |
|
Serial port 2 |
CN3 |
Floppy drive interface |
CN8 |
|
Parallel port |
CN4 |
SmartVu connector |
CN9 |
|
VGA port |
CN5 |
External battery |
CN10 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
CN11 |
Open |
|
» |
CMOS memory normal operation |
J1 |
Open |
|
CMOS memory clear |
J1 |
Closed | |
|
» |
Monitor type select color |
J2 |
Closed |
|
Monitor type select monochrome |
J2 |
Open | |
|
» |
Factory configured - do not alter |
J3 |
Open |
|
» |
Password enabled |
J4 |
Closed |
|
Password disabled |
J4 |
Open | |
|
» |
Single IDE drive installed |
J5 |
Closed |
|
Dual IDE drives installed |
J5 |
Open | |
|
» |
IDE interface on board |
J6 |
Open |
|
IDE interface on expansion card |
J6 |
Closed | |
|
» |
Multisync monitor not used |
J7 |
Open |
|
Multisync monitor used |
J7 |
Closed | |
|
» |
On board VGA uses IRQ9 |
J8 |
Closed |
|
On board VGA does not use IRQ9 |
J8 |
Open | |
|
» |
On board VGA enabled |
J11 |
Closed |
|
On board VGA disabled |
J11 |
Open | |
|
» |
Factory configured - do not alter |
J12 |
Open |
|
» |
Factory configured - do not alter |
J13 |
Open |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(1) 256K x 36 |
NONE |
NONE |
NONE |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
3MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 1M x 36 |
NONE |
NONE |
NONE |
|
5MB |
(1) 1M x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
6MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
|
7MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
9MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 256K x 36 |
NONE |
|
10MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
12MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
13MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 256K x 36 |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
IDE DRIVE CONFIGURATION | ||
|
Type |
J9 |
J10 |
|
Old version |
Open |
Closed |
|
New version |
Closed |
Open |
|
Note: Old version drives were manufactured before 1/89. | ||
