COMPAQ COMPUTER CORPORATION
PRESARIO 600 SERIES (486-BASED MODELS)
|
Processor |
OPP486DX/80486DX2 |
|
Processor Speed |
50/50 (internal)/66(internal)MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
56MB |
|
Cache |
None |
|
BIOS |
Unidentified |
|
Dimensions |
258 x 218mm |
|
I/O Options |
IDE interface, riser card slot, floppy drive interface, parallel port, PS/2 mouse port, serial ports (2), VGA port |
|
NPU Options |
80487 |
|

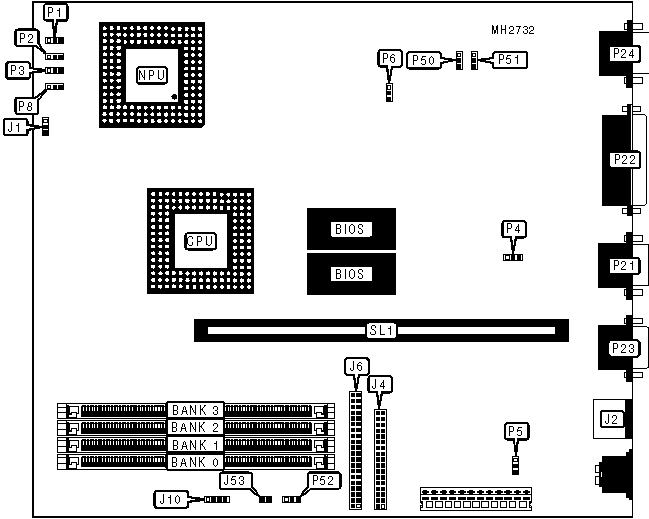

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Speaker connector |
J1 |
Serial port 1 |
P21 |
|
PS/2 mouse port |
J2 |
Parallel port |
P22 |
|
Floppy Drive Interface |
J4 |
Serial port 2 |
P23 |
|
IDE interface |
J6 |
VGA port |
P24 |
|
IDE interface LED |
J10 |
Riser card slot |
SL1 |
|
Battery connector |
J53 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Monitor type select monochrome |
P4 |
pins 1 & 2 closed |
|
Monitor type select color |
P4 |
Open | |
|
» |
I/O address select 398h/399h |
P5 |
Open |
|
I/O address select 26Eh/26Fh |
P5 |
pins 1 & 2 closed | |
|
» |
Speaker select internal |
P8 |
pins 1 & 2 closed |
|
Speaker select external |
P8 |
pins 2 & 3 closed | |
|
» |
Battery type select external |
P52 |
pins 1 & 2 closed |
|
Battery type select internal |
P52 |
pins 2 & 3 closed | |
|
CMOS memory clear |
P52 |
Open | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
4MB |
(1) 1M x 36 |
NONE |
NONE |
NONE |
|
6MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
|
6MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
6MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
8MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
8MB |
(1) 2M x 36 |
NONE |
NONE |
NONE |
|
10MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
10MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
12MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
12MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
12MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
16MB |
(1) 4M x 36 |
NONE |
NONE |
NONE |
|
18MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
18MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
20MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
20MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
24MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
|
24MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
24MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
32MB |
(1) 8M x 36 |
NONE |
NONE |
NONE |
|
34MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
34MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
36MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
36MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
40MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
40MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
48MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
48MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
48MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
56MB |
(1) 8M x 36 |
(1) 4M x 36 |
(1) 2M x 36 |
NONE |
|
CPU TYPE CONFIGURATION | ||||
|
CPU type |
P1 |
P2 |
P3 |
P11 |
|
80486DX2-50 |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
ODP486-50 |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
80486DX2-66 |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
Note: The location of P11 is unidentified. | ||||
|
ON-BOARD VIDEO CONFIGURATION | ||
|
Setting |
P50 |
P51 |
|
Disabled |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
Enabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
VESA VAIT STATE CONFIGURATION | |
|
Wait states |
P6 |
|
0 wait states |
pins 1 & 2 closed |
|
1 wait states |
Open |
