COMPAQ COMPUTER CORPORATION
DESKPRO 450/466/4100
PROLINEA 450/466/4100
(WITHOUT INTEGRATED GRAPHICS)
|
Processor |
Pentium |
|
Processor Speed |
75/90/100MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
192MB |
|
Cache |
256KB |
|
BIOS |
Unidentified |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Parallel port, PS/2 mouse port, serial port, VGA feature connector, VGA port, ethernet port, AUI port, video memory interface |
|
NPU Options |
None |
|

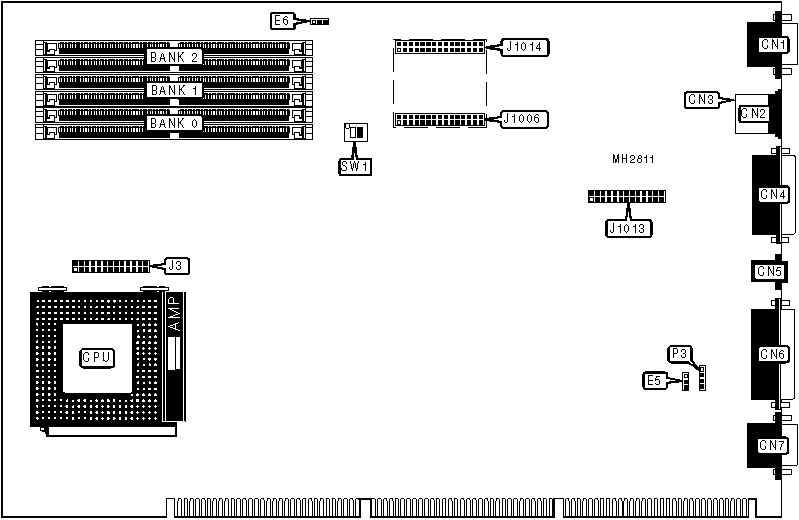

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VGA port |
CN1 |
Parallel port |
CN6 |
|
PS/2 mouse port |
CN2 |
Serial port |
CN7 |
|
Keyboard port |
CN3 |
VGA feature connector |
J1013 |
|
AUI port |
CN4 |
Video memory interface |
J1014, J1006 |
|
Ethernet port |
CN5 |
External battery |
P3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Battery type select internal |
E5 |
pins 1 & 2 closed |
|
Battery type select external |
E5 |
pins 2 & 3 closed | |
|
» |
Password enabled |
E6 |
pins 1 & 2 closed |
|
Password disabled |
E6 |
pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
J3 |
N/A |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0A |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
8MB |
NONE |
NONE |
NONE |
|
12MB |
8MB |
(2) 512K x 36 |
NONE |
NONE |
|
16MB |
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
NONE |
|
16MB |
8MB |
(2) 1M x 36 |
NONE |
NONE |
|
20MB |
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
20MB |
8MB |
(2) 512K x 36 |
(2) 1M x 36 |
NONE |
|
24MB |
8MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
24MB |
8MB |
(2) 2M x 36 |
NONE |
NONE |
|
28MB |
8MB |
(2) 512K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
28MB |
8MB |
(2) 512K x 36 |
(2) 2M x 36 |
NONE |
|
32MB |
8MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
44MB |
8MB |
(2) 512K x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
44MB |
8MB |
(2) 512K x 36 |
(2) 4M x 36 |
NONE |
|
48MB |
8MB |
(2) 1M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
48MB |
8MB |
(2) 1M x 36 |
(2) 4M x 36 |
NONE |
|
72MB |
8MB |
(2) 8M x 36 |
NONE |
NONE |
|
76MB |
8MB |
(2) 512K x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
76MB |
8MB |
(2) 512K x 36 |
(2) 8M x 36 |
NONE |
|
80MB |
8MB |
(2) 1M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
80MB |
8MB |
(2) 1M x 36 |
(2) 8M x 36 |
NONE |
|
104MB |
8MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
104MB |
8MB |
(2) 4M x 36 |
(2) 8M x 36 |
NONE |
|
136MB |
8MB |
(2) 8M x 36 |
(2) 8M x 36 |
NONE |
|
140MB |
8MB |
(2) 512K x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
144MB |
8MB |
(2) 1M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
168MB |
8MB |
(2) 4M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
192MB |
8MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Bank 0A is factory installed and is not configurable. The location is unidentified. If 192MB is installed, the factory installed 8MB is disabled. | ||||
|
CACHE CONFIGURATION |
|
Note: This board is factory installed with 256KB. It is not configurable. |
|
CPU SPEED CONFIGURATION | ||
|
Speed |
SW1/1 |
SW1/2 |
|
75MHz |
On |
Off |
|
90MHz |
Off |
Off |
|
100MHz |
On |
On |
|
VIDEO MEMORY CONFIGURATION |
|
Note: To upgrade the video memory to 1MB, install the video module on jumper P4. |
