DIAMOND FLOWER, INC.
G486-EVB (REV. B)
|
Processor |
CX486SX/80486(WB)/80486SX/SL80486SX/CX486DX/80486DX/ AM486DX/AM486DXL/SL80486DX/CX486DX2V/CX486DX2/ AM486DX2/AM486DXL2/80486DX2/SL80486DX2/AM486DX4/ 80486DX4/P24T |
|
Processor Speed |
25/33/40/50(internal)/66(internal)/75(internal)/80(internal)/ 100(internal)MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
64MB |
|
Maximum Video Memory |
None |
|
Cache |
128/256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit VESA local bus slots (3), green PC connector |
|
NPU Options |
None |
|

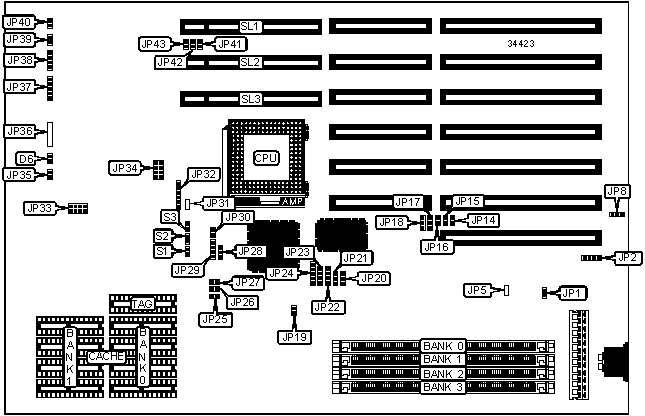

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Green PC LED |
D6 |
Green PC connector |
JP44 |
|
External battery |
JP2 |
Reset switch |
JP45 |
|
Power LED & keylock |
JP40 |
32-bit VESA local bus slots |
SL1 – SL3 |
|
Speaker |
JP41 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
BIOS type select 28F010 |
JP1 |
Closed | |
|
BIOS type select 27512 |
JP1 |
Open | |
|
» |
Factory configured - do not alter |
JP5 |
Unidentified |
|
Battery type select internal |
JP8 |
Pins 2 & 3 closed | |
|
Battery type select external |
JP8 |
Pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
JP14 |
Closed |
|
» |
Factory configured - do not alter |
JP31 |
Unidentified |
|
» |
Factory configured - do not alter |
JP43 |
Unidentified |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(1) 256K x 36 |
None |
None |
None |
|
2MB |
(1) 512K x 36 |
None |
None |
None |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 512K x 36 |
None |
(1) 512K x 36 |
None |
|
4MB |
(1) 1M x 36 |
None |
None |
None |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
None |
None |
|
8MB |
(1) 2M x 36 |
None |
None |
None |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 2M x 36 |
None |
(1) 2M x 36 |
None |
|
16MB |
(1) 4M x 36 |
None |
None |
None |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
None |
None |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
128KB |
(4) 32K x 8 |
None |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
512KB |
(4) 128K x 8 |
None |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | ||||||
|
Size |
JP19 |
JP20 |
JP21 |
JP25 |
JP26 |
JP27 |
|
128KB |
Open |
2 & 3 |
2 & 3 |
Closed |
Closed |
Open |
|
256KB |
Open |
1 & 2 |
1 & 2 |
Closed |
Closed |
Closed |
|
512KB |
Closed |
2 & 3 |
1 & 2 |
Closed |
Closed |
Closed |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU TYPE SELECTION | |||||
|
Type |
JP15 |
JP16 |
JP17 |
JP18 |
JP22 |
|
CX486SX(WB) |
Closed |
Closed |
2 & 3 |
2 & 3 |
2 & 3 |
|
CX486SX(WT) |
Closed |
Closed |
1 & 2 |
1 & 2 |
2 & 3 |
|
80486 (WB 3.3v) |
Open |
Closed |
2 & 3 |
2 & 3 |
1 & 2, 3 & 4 |
|
80486 (WB 5v) |
Open |
Closed |
2 & 3 |
2 & 3 |
1 & 2, 3 & 4 |
|
80486SX |
Open |
Open |
1 & 2 |
1 & 2 |
Open |
|
SL80486SX |
Open |
Open |
1 & 2 |
1 & 2 |
1 & 2 |
|
CX486DX(WB) |
Closed |
Closed |
2 & 3 |
2 & 3 |
2 & 3 |
|
CX486DX(WT) |
Closed |
Closed |
1 & 2 |
1 & 2 |
2 & 3 |
|
80486DX |
Open |
Open |
1 & 2 |
1 & 2 |
Open |
|
AM486DX |
Open |
Open |
1 & 2 |
1 & 2 |
Open |
|
AM486DXL |
Open |
Open |
1 & 2 |
1 & 2 |
Open |
|
SL80486DX |
Open |
Open |
1 & 2 |
1 & 2 |
1 & 2 |
|
CX486DX2V-50(WB) |
Closed |
Closed |
2 & 3 |
2 & 3 |
2 & 3 |
|
CX486DX2V-50(WT) |
Closed |
Closed |
1 & 2 |
1 & 2 |
2 & 3 |
|
CX486DX2(WB) |
Closed |
Closed |
2 & 3 |
2 & 3 |
2 & 3 |
|
CX486DX2(WT) |
Closed |
Closed |
1 & 2 |
1 & 2 |
2 & 3 |
|
AM486DX2 |
Open |
Open |
1 & 2 |
1 & 2 |
Open |
|
AM486DX2 (NV8T) |
Open |
Open |
1 & 2 |
1 & 2 |
Open |
|
AM486DXL2 |
Open |
Open |
1 & 2 |
1 & 2 |
Open |
|
80486DX2 |
Open |
Open |
1 & 2 |
1 & 2 |
Open |
|
SL80486DX2 |
Open |
Open |
1 & 2 |
1 & 2 |
1 & 2 |
|
AM486DX4 (NV8T) |
Open |
Open |
1 & 2 |
1 & 2 |
Open |
|
80486DX4 |
Open |
Open |
1 & 2 |
1 & 2 |
1 & 2 |
|
P24T(WB) |
Open |
Closed |
2 & 3 |
2 & 3 |
1 & 2 |
|
P24T(WT) |
Open |
Closed |
1 & 2 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU TYPE SELECTION (CON’T) | |||||
|
Type |
JP23 |
JP24 |
JP28 |
JP29 |
JP30 |
|
CX486SX(WB) |
2 & 3 |
2 & 3, 4 & 5 |
2 & 3 |
Open |
Open |
|
CX486SX(WT) |
2 & 3 |
2 & 3 |
2 & 3 |
Open |
Open |
|
80486 (WB 3.3v) |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
1 & 2 |
2 & 3 |
Closed |
|
80486 (WB 5v) |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
1 & 2 |
2 & 3 |
Closed |
|
80486SX |
Open |
Open |
2 & 3 |
Open |
Open |
|
SL80486SX |
1 & 2 |
1 & 2 |
2 & 3 |
Open |
Open |
|
CX486DX(WB) |
2 & 3 |
2 & 3, 4 & 5 |
1 & 2 |
2 & 3 |
Closed |
|
CX486DX(WT) |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
Closed |
|
80486DX |
Open |
Open |
1 & 2 |
2 & 3 |
Closed |
|
AM486DX |
Open |
Open |
1 & 2 |
2 & 3 |
Closed |
|
AM486DXL |
Open |
Open |
1 & 2 |
2 & 3 |
Closed |
|
SL80486DX |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
Closed |
|
CX486DX2V(WB) |
2 & 3 |
2 & 3, 4 & 5 |
1 & 2 |
2 & 3 |
Closed |
|
CX486DX2V(WT) |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
Closed |
|
CX486DX2(WB) |
2 & 3 |
2 & 3, 4 & 5 |
1 & 2 |
2 & 3 |
Closed |
|
CX486DX2(WT) |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
Closed |
|
AM486DX2 |
Open |
Open |
1 & 2 |
2 & 3 |
Closed |
|
AM486DX2 (NV8T) |
Open |
Open |
1 & 2 |
2 & 3 |
Closed |
|
AM486DXL2 |
Open |
Open |
1 & 2 |
2 & 3 |
Closed |
|
80486DX2 |
Open |
Open |
1 & 2 |
2 & 3 |
Closed |
|
SL80486DX2 |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
Closed |
|
AM486DX4 (NV8T) |
Open |
Open |
1 & 2 |
2 & 3 |
Closed |
|
80486DX4 |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
Closed |
|
P24T(WB) |
1 & 2, 3 & 4 |
1 & 2 |
1 & 2 |
1 & 2 |
Closed |
|
P24T(WT) |
1 & 2, 3 & 4 |
1 & 2 |
1 & 2 |
1 & 2 |
Closed |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU TYPE SELECTION (CON’T) | ||||
|
Type |
JP32 |
JP33 |
JP34 |
JP36 |
|
CX486SX(WB) |
2 & 3, 4 & 5 |
1 & 2, 3 & 4 |
Open |
Open |
|
CX486SX(WT) |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
80486 (WB 3.3v) |
1 & 2 |
5 & 6, 7 & 8 |
Open |
Open |
|
80486 (WB 5v) |
1 & 2 |
1 & 2, 3 & 4 |
Open |
Open |
|
80486SX |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
SL80486SX |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
CX486DX(WB) |
2 & 3, 4 & 5 |
1 & 2, 3 & 4 |
Open |
Open |
|
CX486DX(WT) |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
80486DX |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
AM486DX |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
AM486DXL |
Open |
1 & 2, 3 & 4 |
Open |
1 & 2, 3 & 4 |
|
SL80486DX |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
CX486DX2V(WB) |
2 & 3, 4 & 5 |
5 & 6, 7 & 8 |
Open |
Open |
|
CX486DX2V(WT) |
Open |
5 & 6, 7 & 8 |
Open |
Open |
|
CX486DX2(WB) |
2 & 3, 4 & 5 |
1 & 2, 3 & 4 |
Open |
Open |
|
CX486DX2(WT) |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
AM486DX2 |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
AM486DX2 (NV8T) |
Open |
5 & 6, 7 & 8 |
7 & 8 |
Open |
|
AM486DXL2 |
Open |
1 & 2, 3 & 4 |
Open |
1 & 2, 3 & 4 |
|
80486DX2 |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
SL80486DX2 |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
AM486DX4 (NV8T) |
Open |
5 & 6, 7 & 8 |
5 & 6 |
Open |
|
80486DX4 |
Open |
5 & 6, 7 & 8 |
Open |
Open |
|
P24T(WB) |
1 & 2 |
1 & 2, 3 & 4 |
Open |
Open |
|
P24T(WT) |
Open |
1 & 2, 3 & 4 |
Open |
Open |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU SPEED SELECTION | |||
|
Speed |
S1 |
S2 |
S3 |
|
25MHz |
Closed |
Open |
Open |
|
33MHz |
Closed |
Closed |
Closed |
|
40MHz |
Closed |
Closed |
Open |
|
50iMHz |
Closed |
Open |
Open |
|
66iMHz |
Closed |
Closed |
Closed |
|
75iMHz |
Closed |
Open |
Open |
|
80iMHz |
Closed |
Closed |
Open |
|
100iMHz |
Closed |
Closed |
Closed |
|
CPU TYPE SELECTION | |
|
Type |
JP35 |
|
Non SL-enhanced |
Closed |
|
SL-enhanced |
Open |
|
VL BUS WAIT STATE SELECTION | |
|
Setting |
JP41 |
|
0 |
Open |
|
1 |
Closed |
|
VL BUS SPEED SELECTION | |
|
Speed |
JP42 |
|
<= 33MHz |
Open |
|
>33 MHz |
Closed |
