DTK COMPUTER, INC.
PRM-0032I (VER. 1.00)
|
Processor |
Pentium Pro |
|
Processor Speed |
180/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
384MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB (located on Pentium Pro CPU) |
|
BIOS |
AMI |
|
Dimensions |
330mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), SCSI interface, Wide SCSI interface, parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), VRM connectors (2) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
IR connector |
J1 |
Reset switch |
J13 |
|
USB connector |
J2 |
Turbo LED |
J14 |
|
Power LED & keylock |
J3 |
Green PC connector |
J15 |
|
Speaker |
J5 |
SCSI interface LED |
J16 |
|
Serial port 1 |
J6 |
PS/2 mouse port |
J18 |
|
Floppy drive interface |
J7 |
Wide SCSI interface |
J19 |
|
IDE interface 2 |
J8 |
VRM connector |
J23 |
|
IDE interface LED |
J9 |
SCSI interface |
J24 |
|
Serial port 2 |
J10 |
VRM connector |
J25 |
|
Parallel port |
J11 |
USB connector |
JU |
|
IDE interface 1 |
J12 |
32-bit PCI slots |
PC1 – PC4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
C1 |
Unidentified |
|
» |
Factory configured - do not alter |
C2 |
Unidentified |
|
» |
Factory configured - do not alter |
C3 |
Unidentified |
|
» |
Factory configured - do not alter |
C4 |
Unidentified |
|
» |
Factory configured - do not alter |
C5 |
Unidentified |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
None |
None |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
None |
|
4MB |
(2) 512K x 36 |
None |
None |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
None |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
None |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
None |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
None |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
26MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
28MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 512K x 36 |
|
32MB |
(2) 4M x 36 |
None |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
None |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
None |
|
40MB |
(2) 4M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
42MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
None |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
50MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 256K x 36 |
|
56MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 8M x 36 |
None |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
74MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
None |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
82MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 256K x 36 |
|
84MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 512K x 36 |
|
88MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
98MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 256K x 36 |
|
100MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 512K x 36 |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 16M x 36 |
None |
None |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
132MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 512K x 36 |
|
136MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 1M x 36 |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
None |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
None |
|
144MB |
(2) 16M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
152MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
None |
|
160MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
168MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
176MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 2M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
None |
|
192MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
200MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 1M x 36 |
|
208MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 2M x 36 |
|
224MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 4M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
None |
|
256MB |
(2) 16M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
264MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 1M x 36 |
|
272MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 2M x 36 |
|
288MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 4M x 36 |
|
320MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 8M x 36 |
|
384MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. | |||
|

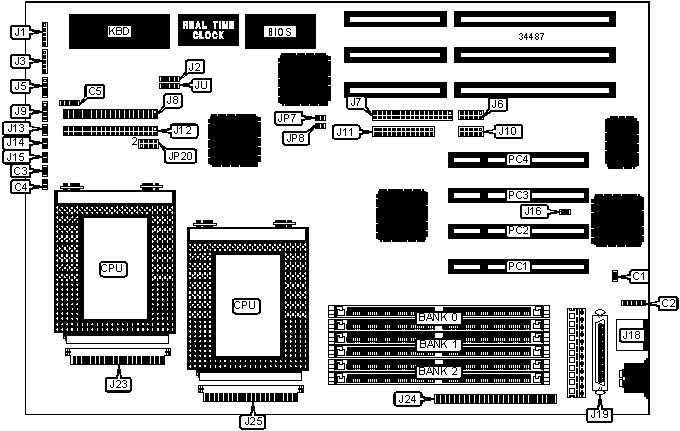

CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
|
CPU SPEED SELECTION | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP7 |
JP8 |
JP20 |
|
180MHz |
60MHz |
3x |
Closed |
Open |
1 & 2, 3 & 4, 7 & 8 |
|
200MHz |
66MHz |
3x |
Open |
Closed |
1 & 2, 3 & 4, 7 & 8 |
|
Note: Pins designated should be in the closed position. | |||||
