Processor	Pentium
Processor Speed	60/66MHz
Chip Set	SIS
Video Chip Set	None
Maximum Onboard Memory	128MB
Maximum Video Memory	None
Cache	256/512/1024KB
BIOS	Award
Dimensions	250mm x 220mm
I/O Options	32-bit PCI slots (4), green PC connector, IDE interfaces (2)
NPU Options	None

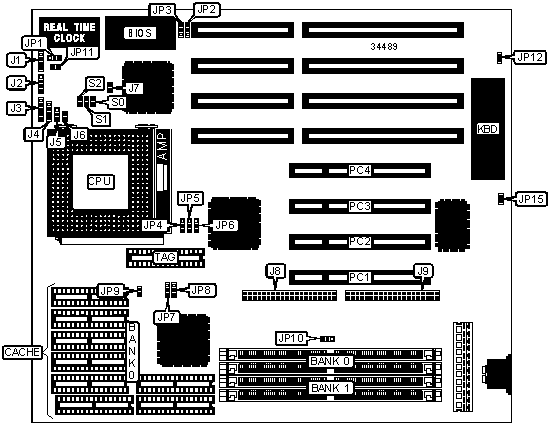

CONNECTIONS
Purpose	Location	Purpose	Location
Chassis fan power	J1	Reset switch	J7
IDE interface LED	J2	IDE interface 2	J8
Power LED & keylock	J3	IDE interface 1	J9
Speaker	J4	Green PC connector	JP11
Turbo switch	J5	32-bit PCI slots	PC1 – PC4
Turbo LED	J6

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Turbo enabled	J5	Pins 1 & 2 closed
	Turbo disabled	J5	Pins 2 & 3 closed
»	CMOS memory normal operation	JP1	Open
	CMOS memory clear	JP1	Closed
»	Cache invalidate select write cycle	JP4	Pins 2 & 3 closed
	Cache invalidate select always invalidated	JP4	Pins 1 & 2 closed
»	CPU pipeline mode disabled	JP5	Pins 1 & 2 closed
	CPU pipeline mode enabled	JP5	Pins 2 & 3 closed
»	Cache type select write back	JP6	Pins 1 & 2 closed
	Cache type select write through	JP6	Pins 2 & 3 closed
»	Monitor type select color	JP12	Closed
	Monitor type select monochrome	JP12	Open
»	IDE interface enabled	JP15	Open
	IDE interface disabled	JP15	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(2) 256K x 36	None
4MB (A)	(2) 512K x 36	None
4MB (B)	(2) 256K x 36	(2) 256K x 36
6MB	(2) 512K x 36	(2) 256K x 36
8MB (A)	(2) 1M x 36	None
8MB (B)	(2) 512K x 36	(2) 512K x 36
10MB	(2) 256K x 36	(2) 1M x 36
12MB	(2) 512K x 36	(2) 1M x 36
16MB (A)	(2) 2M x 36	(2) 1M x 36
16MB (B)	(2) 1M x 36	(2) 256K x 36
18MB	(2) 2M x 36	(2) 256K x 36
20MB	(2) 512K x 36	(2) 2M x 36
24MB	(2) 256K x 36	(2) 1M x 36
32MB (A)	(2) 4M x 36	None
32MB (B)	(2) 2M x 36	(2) 2M x 36
34MB	(2) 256K x 36	(2) 4M x 36

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
36MB	(2) 512K x 36	(2) 4M x 36
40MB	(2) 1M x 36	(2) 4M x 36
48MB	(2) 2M x 36	(2) 4M x 36
64MB (A)	(2) 8M x 36	None
64MB (B)	(2) 4M x 36	(2) 4M x 36
66MB	(2) 8M x 36	(2) 256K x 36
68MB	(2) 512K x 36	(2) 8M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 2M x 36	(2) 8M x 36
96MB	(2) 4M x 36	(2) 8M x 36
128MB	(2) 8M x 36	(2) 8M x 36

DRAM JUMPER CONFIGURATION
Size	JP10
2MB	Pins 1 & 2 closed
4MB (A)	Pins 2 & 3 closed
4MB (B)	Pins 1 & 2 closed
6MB	Pins 2 & 3 closed
8MB (A)	Pins 1 & 2 closed
8MB (B)	Pins 2 & 3 closed
10MB	Pins 1 & 2 closed
12MB	Pins 2 & 3 closed
16MB (A)	Pins 2 & 3 closed
16MB (B)	Pins 1 & 2 closed
18MB	Pins 2 & 3 closed
20MB	Pins 2 & 3 closed
24MB	Pins 2 & 3 closed
32MB (A)	Pins 1 & 2 closed
32MB (B)	Pins 2 & 3 closed
34MB	Pins 1 & 2 closed
36MB	Pins 2 & 3 closed
40MB	Pins 1 & 2 closed
48MB	Pins 2 & 3 closed
64MB (A)	Pins 2 & 3 closed
64MB (B)	Pins 1 & 2 closed
66MB	Pins 2 & 3 closed
68MB	Pins 2 & 3 closed
72MB	Pins 2 & 3 closed
80MB	Pins 2 & 3 closed
96MB	Pins 2 & 3 closed
128MB	Pins 2 & 3 closed

CACHE CONFIGURATION
Size	Bank 0	TAG
256KB	(8) 32K x 8	(1) 8K x 8
512KB	(8) 64K x 8	(1) 32K x 8
1MB	(8) 128K x 8	(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP7	JP8	JP9
256KB	Pins 1 & 2 closed	Pins 1 & 2 closed	Closed
512KB	Pins 2 & 3 closed	Pins 1 & 2 closed	Open
1MB	Pins 2 & 3 closed	Pins 2 & 3 closed	Closed

CPU SPEED SELECTION
Speed	S0	S1	S2
50MHz	Closed	Open	Open
60MHz	Open	Closed	Open
66MHz	Closed	Open	Closed

BIOS SELECTION
Setting	JP2	JP3
EPROM	Pins 2 & 3 closed	Pins 2 & 3 closed
Flash	Pins 1 & 2 closed	Pins 1 & 2 closed
