DIAMOND FLOWER, INC.
586ITBD (REV. AD+)
|
Processor |
CX 6X86L/CX 686MX/IBM 6X86L/IBM 686MX AM K5/AM K6/Pentium |
|
Processor Speed |
90/100/120/133/150/166/180/200/233MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
256MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector |
|
NPU Options |
None |
|

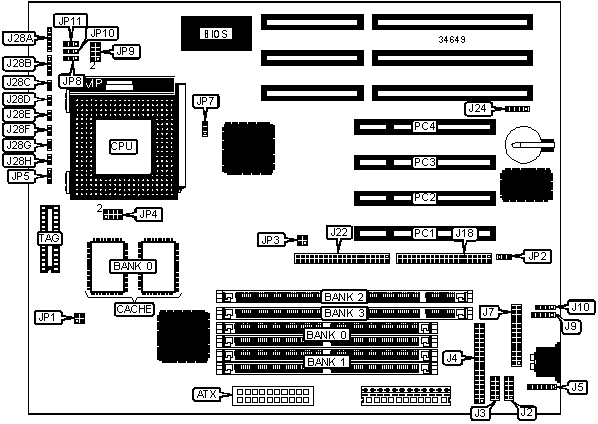

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Power LED & keylock |
J28A |
|
Serial port 2 |
J2 |
Speaker |
J28B |
|
Serial port 1 |
J3 |
Reset switch |
J28C |
|
Floppy drive interface |
J4 |
Green PC connector |
J28D |
|
PS/2 mouse interface |
J5 |
Soft off power supply |
J28E |
|
Parallel port |
J7 |
Green PC LED |
J28F |
|
USB connector |
J9 |
IDE interface LED |
J28G |
|
USB connector |
J10 |
ATX LED |
J28H |
|
IDE interface 2 |
J18 |
Wake on modem connector |
JP2 |
|
IDE interface 1 |
J22 |
CPU fan power |
JP5 |
|
IR connector |
J24 |
32-bit PCI slots |
PC1 – PC4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
JP7 |
Pins 1 & 2 closed |
|
CMOS memory clear |
JP7 |
Pins 2 & 3 closed | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. | ||
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
512KB |
(2) 64K x 32 |
Unidentified |
|
CPU SPEED SELECTION (CX 6X86L) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP3 |
JP4 |
|
150MHz |
60MHz |
2x |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
|
166MHz |
66MHz |
2x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (CX 6X86L, CON’T) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP10 |
JP11 |
|
150MHz |
60MHz |
2x |
Open |
1 & 2 |
2 & 3 |
|
166MHz |
66MHz |
2x |
Open |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (CX 6X86MX) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP3 |
JP4 |
|
166MHz |
60MHz |
2.5x |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
|
200MHz |
66MHz |
3x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (CX 6X86MX, CON’T) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP10 |
JP11 |
|
166MHz |
60MHz |
2.5x |
Open |
2 & 3 |
2 & 3 |
|
200MHz |
66MHz |
3x |
Open |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (IBM 6X86L) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP3 |
JP4 |
|
150MHz |
60MHz |
2x |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
|
166MHz |
66MHz |
2x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (IBM 6X86L, CON’T) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP3 |
JP4 |
|
150MHz |
60MHz |
2x |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
|
166MHz |
66MHz |
2x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (IBM 6X86MX) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP3 |
JP4 |
|
166MHz |
60MHz |
2.5x |
3 & 4 |
3 & 4 |
1 & 2, 3 & 4 |
|
200MHz |
66MHz |
3x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (IBM 6X86MX, CON’T) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP10 |
JP11 |
|
166MHz |
60MHz |
2.5x |
Open |
2 & 3 |
2 & 3 |
|
200MHz |
66MHz |
3x |
Open |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (AM K5) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP3 |
JP4 |
|
90MHz |
60MHz |
1.5x |
3 & 4 |
3 & 4 |
5 & 6, 7 & 8 |
|
100MHz |
66MHz |
1.5x |
3 & 4 |
Open |
5 & 6, 7 & 8 |
|
120MHz |
60MHz |
1.5x |
3 & 4 |
3 & 4 |
5 & 6, 7 & 8 |
|
133MHz |
66MHz |
1.5x |
3 & 4 |
Open |
5 & 6, 7 & 8 |
|
166MHz |
66MHz |
2.5x |
3 & 4 |
Open |
5 & 6, 7 & 8 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (AM K5, CON’T) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP10 |
JP11 |
|
90MHz |
60MHz |
1.5x |
Open |
1 & 2 |
1 & 2 |
|
100MHz |
66MHz |
1.5x |
Open |
1 & 2 |
1 & 2 |
|
120MHz |
60MHz |
1.5x |
Open |
1 & 2 |
1 & 2 |
|
133MHz |
66MHz |
1.5x |
Open |
1 & 2 |
1 & 2 |
|
166MHz |
66MHz |
2.5x |
Open |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (AM K6) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP3 |
JP4 |
|
166MHz |
66MHz |
2.5x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
200MHz |
66MHz |
3x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
233MHz |
66MHz |
3.5x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
266MHz |
66MHz |
4x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (AM K6, CON’T) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP10 |
JP11 |
|
166MHz |
66MHz |
2.5x |
Open |
2 & 3 |
2 & 3 |
|
200MHz |
66MHz |
3x |
Open |
2 & 3 |
1 & 2 |
|
233MHz |
66MHz |
3.5x |
Open |
1 & 2 |
1 & 2 |
|
266MHz |
66MHz |
4x |
2 & 3 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (INTEL) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP3 |
JP4 |
|
90MHz |
60MHz |
1.5x |
3 & 4 |
3 & 4 |
5 & 6, 7 & 8 |
|
100MHz |
66MHz |
1.5x |
3 & 4 |
Open |
5 & 6, 7 & 8 |
|
120MHz |
60MHz |
2x |
3 & 4 |
3 & 4 |
5 & 6, 7 & 8 |
|
133MHz |
66MHz |
2x |
3 & 4 |
Open |
5 & 6, 7 & 8 |
|
150MHz |
60MHz |
2.5x |
3 & 4 |
3 & 4 |
5 & 6, 7 & 8 |
|
166MHz |
66MHz |
2.5x |
3 & 4 |
Open |
5 & 6, 7 & 8 |
|
200MHz |
66MHz |
3x |
3 & 4 |
Open |
5 & 6, 7 & 8 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (INTEL, CON’T) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP10 |
JP11 |
|
90MHz |
60MHz |
1.5x |
Open |
1 & 2 |
1 & 2 |
|
100MHz |
66MHz |
1.5x |
Open |
1 & 2 |
1 & 2 |
|
120MHz |
60MHz |
2x |
Open |
1 & 2 |
2 & 3 |
|
133MHz |
66MHz |
2x |
Open |
1 & 2 |
2 & 3 |
|
150MHz |
60MHz |
2.5x |
Open |
2 & 3 |
2 & 3 |
|
166MHz |
66MHz |
2.5x |
Open |
2 & 3 |
2 & 3 |
|
200MHz |
66MHz |
3x |
Open |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (INTEL MMX) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP3 |
JP4 |
|
166MHz |
66MHz |
2.5x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
200MHz |
66MHz |
3x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
233MHz |
66MHz |
3.5x |
3 & 4 |
Open |
1 & 2, 3 & 4 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU SPEED SELECTION (INTEL MMX, CON’T) | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP8 |
JP10 |
JP11 |
|
166MHz |
66MHz |
2.5x |
Open |
2 & 3 |
2 & 3 |
|
200MHz |
66MHz |
3x |
Open |
2 & 3 |
1 & 2 |
|
233MHz |
66MHz |
3.5x |
Open |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU VOLTAGE SELECTION | ||
|
Voltage |
JP9 | |
| » |
2.8v |
Pins 7 & 8 closed |
|
2.9v |
Pins 1 & 2, 7 & 8 closed | |
|
3.2v |
Pins 5 & 6, 7 & 8 closed | |
|
3.3v |
Pins 1 & 2, 5 & 6, 7 & 8 closed | |
|
3.5v |
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed | |
