Processor	Pentium II
Processor Speed	233/266/300MHz
Chip Set	Intel
Video Chip Set	ATI
Maximum Onboard Memory	512MB (EDO supported)
Maximum Video Memory	1MB
Cache	512KB (located on Pentium II CPU)
BIOS	Phoenix
Dimensions	305mm x 244mm
I/O Options	32-bit PCI slots (3), floppy drive interface, Ultra Wide SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, SMM connector
NPU Options	None

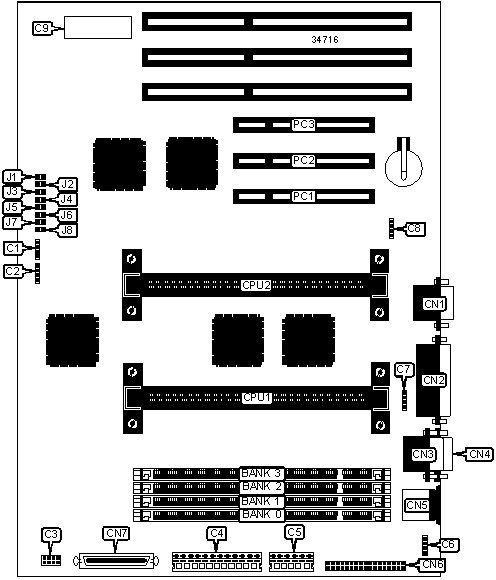

CONNECTIONS
Purpose	Location	Purpose	Location
Chassis fan power	C1	VGA port	CN1
IDE interface LED	C2	Parallel port	CN2
Front PANEL connector	C3	Serial port 1	CN3
3.3v power	C4	Serial port 2	CN4
3.3v auxiliary power	C5	PS/2 mouse port	CN5
Chassis fan power	C6	Floppy drive interface	CN6
Temperature sensor 1	C7	Ultra Wide SCSI interface	CN7
Temperature sensor 2	C8	32-bit PCI slots	PC1 – PC3
SMM connector	C9

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	System boot normal operation	J1	Open
	System boot from a BIOS expansion card	J1	Closed
»	On board video enabled	J2	Closed
	On board video disabled	J2	Open
»	EISA configuration normal operation	J3	Open
	EISA configuration clear	J3	Closed
»	Password enabled	J4	Closed
	Password disabled	J4	Open
»	Factory configured - do not alter	J8	Open

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
8MB	(1) 1M x 64	None	None	None
16MB	(1) 2M x 64	None	None	None
16MB	(1) 1M x 64	(1) 1M x 64	None	None
24MB	(1) 2M x 64	(1) 1M x 64	None	None
24MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64	None
32MB	(1) 4M x 64	None	None	None
32MB	(1) 2M x 64	(1) 2M x 64	None	None
32MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
40MB	(1) 4M x 64	(1) 1M x 64	None	None
48MB	(1) 4M x 64	(1) 2M x 64	None	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	None
64MB	(1) 8M x 64	None	None	None
64MB	(1) 4M x 64	(1) 4M x 64	None	None
64MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
72MB	(1) 8M x 64	(1) 1M x 64	None	None
80MB	(1) 8M x 64	(1) 2M x 64	None	None
96MB	(1) 8M x 64	(1) 4M x 64	None	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	None

DIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
128MB	(1) 16M x 64	None	None	None
128MB	(1) 8M x 64	(1) 8M x 64	None	None
128MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
136MB	(1) 16M x 64	(1) 1M x 64	None	None
144MB	(1) 16M x 64	(1) 2M x 64	None	None
160MB	(1) 16M x 64	(1) 4M x 64	None	None
192MB	(1) 16M x 64	(1) 8M x 64	None	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	None
256MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64	None	None
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	None
512MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: 512KB cache is located on the Pentium II CPU.

VIDEO MEMORY CONFIGURATION

Note: 1MB video memory is factory installed and is not configurable. The location is unidentified.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	J5	J6	J7
233MHz	66MHz	3.5x	Closed	Open	Open
266MHz	66MHz	4x	Open	Closed	Open
300MHz	66MHz	4.5x	Open	Open	Closed
