G586VBP (REV. 0)

DIAMOND FLOWER, INC.

G586VBP (REV. 0)

Device Type

Mainboard

Processor

Pentium

Processor Speed

75/90/100/120MHz

Chip Set

VIA

Video Chip Set

None

Maximum Onboard Memory

128MB

Maximum Video Memory

None

Cache

256/512/1024/2048KB

BIOS

Award

Dimensions

330mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2)

NPU Options

None

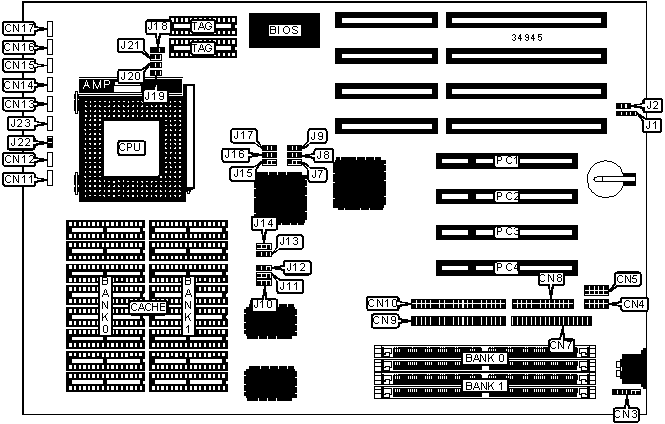

CONNECTIONS

Purpose

Location

Purpose

Location

PS/2 mouse interface

CN3

IDE interface 1

CN9

Serial port 1

CN4

IDE interface 2

CN10

Serial port 2

CN5

External battery

J1

Floppy drive interface

CN7

32-bit PCI slots

PC1 – PC4

Parallel port

CN8

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

CN11

Unidentified

»

Factory configured - do not alter

CN12

Unidentified

»

Factory configured - do not alter

CN13

Unidentified

»

Factory configured - do not alter

CN14

Unidentified

»

Factory configured - do not alter

CN15

Unidentified

»

Factory configured - do not alter

CN16

Unidentified

»

Factory configured - do not alter

CN17

Unidentified

»

Battery type select internal

J2

Pins 1 & 2 closed

Battery type select external

J2

Open

»

Cache type select write back

J18

Pins 1 & 2 closed

Cache type select write through

J18

Pins 2 & 3 closed

»

Factory configured - do not alter

J23

Unidentified

SIMM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(2) 256K x 36

None

4MB

(2) 512K x 36

None

4MB

(2) 256K x 36

(2) 256K x 36

6MB

(2) 512K x 36

(2) 256K x 36

8MB

(2) 1M x 36

None

10MB

(2) 1M x 36

(2) 256K x 36

12MB

(2) 1M x 36

(2) 512K x 36

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

18MB

(2) 2M x 36

(2) 256K x 36

20MB

(2) 2M x 36

(2) 512K x 36

SIMM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

34MB

(2) 4M x 36

(2) 256K x 36

36MB

(2) 4M x 36

(2) 512K x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

66MB

(2) 8M x 36

(2) 256K x 36

68MB

(2) 8M x 36

(2) 512K x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

256KB

(8) 32K x 8

None

(2) 32K x 8

512KB (A)

(8) 64K x 8

None

(2) 32K x 8

512KB (B)

(8) 32K x 8

(8) 32K x 8

(2) 32K x 8

1MB (A)

(8) 128K x 8

None

(2) 32K x 8

1MB (B)

(8) 64K x 8

(8) 64K x 8

(2) 32K x 8

2MB

(8) 128K x 8

(8) 128K x 8

(2) 128K x 8

CACHE JUMPER CONFIGURATION

Size

J7

J8

J9

J15

J16

J17

256KB

2 & 3

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

512KB (A)

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2

2 & 3

512KB (B)

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1MB (A)

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

2 & 3

1MB (B)

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

2MB

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CACHE TYPE SELECTION

Type

J13

J14

»
Mixed

Pins 1 & 2 closed

Pins 1 & 2 closed

3.3v

Pins 2 & 3 closed

Pins 2 & 3 closed

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

J10

J11

J12

J22

75MHz

50MHz

1.5x

2 & 3

1 & 2

2 & 3

Closed

90MHz

60MHz

1.5x

1 & 2

1 & 2

1 & 2

Open

100MHz

66MHz

1.5x

1 & 2

2 & 3

2 & 3

Open

120MHz

60MHz

2x

1 & 2

1 & 2

1 & 2

Open

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION

Voltage

J19

J20

J21

»
3.3v

Closed

Open

Open

3.45v

Open

Closed

Open

3.8v

Open

Open

Closed

CMOS MEMORY SELECTION

Setting

J1

J2

»
Normal operation

Open

Pins 1 & 2 closed

Clear

Pins 2 & 3 closed

Pins 2 & 3 closed

Note: J1 & J2 configure both CMOS and the external battery.

Device Type	Mainboard
Processor	Pentium
Processor Speed	75/90/100/120MHz
Chip Set	VIA
Video Chip Set	None
Maximum Onboard Memory	128MB
Maximum Video Memory	None
Cache	256/512/1024/2048KB
BIOS	Award
Dimensions	330mm x 220mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2)
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse interface	CN3	IDE interface 1	CN9
Serial port 1	CN4	IDE interface 2	CN10
Serial port 2	CN5	External battery	J1
Floppy drive interface	CN7	32-bit PCI slots	PC1 – PC4
Parallel port	CN8

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	CN11	Unidentified
»	Factory configured - do not alter	CN12	Unidentified
»	Factory configured - do not alter	CN13	Unidentified
»	Factory configured - do not alter	CN14	Unidentified
»	Factory configured - do not alter	CN15	Unidentified
»	Factory configured - do not alter	CN16	Unidentified
»	Factory configured - do not alter	CN17	Unidentified
»	Battery type select internal	J2	Pins 1 & 2 closed
	Battery type select external	J2	Open
»	Cache type select write back	J18	Pins 1 & 2 closed
	Cache type select write through	J18	Pins 2 & 3 closed
»	Factory configured - do not alter	J23	Unidentified

SIMM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(2) 256K x 36	None
4MB	(2) 512K x 36	None
4MB	(2) 256K x 36	(2) 256K x 36
6MB	(2) 512K x 36	(2) 256K x 36
8MB	(2) 1M x 36	None
10MB	(2) 1M x 36	(2) 256K x 36
12MB	(2) 1M x 36	(2) 512K x 36
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
18MB	(2) 2M x 36	(2) 256K x 36
20MB	(2) 2M x 36	(2) 512K x 36

SIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
34MB	(2) 4M x 36	(2) 256K x 36
36MB	(2) 4M x 36	(2) 512K x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
66MB	(2) 8M x 36	(2) 256K x 36
68MB	(2) 8M x 36	(2) 512K x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
256KB	(8) 32K x 8	None	(2) 32K x 8
512KB (A)	(8) 64K x 8	None	(2) 32K x 8
512KB (B)	(8) 32K x 8	(8) 32K x 8	(2) 32K x 8
1MB (A)	(8) 128K x 8	None	(2) 32K x 8
1MB (B)	(8) 64K x 8	(8) 64K x 8	(2) 32K x 8
2MB	(8) 128K x 8	(8) 128K x 8	(2) 128K x 8

CACHE JUMPER CONFIGURATION
Size	J7	J8	J9	J15	J16	J17
256KB	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
512KB (A)	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2	2 & 3
512KB (B)	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
1MB (A)	1 & 2	1 & 2	2 & 3	1 & 2	2 & 3	2 & 3
1MB (B)	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3
2MB	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

CACHE TYPE SELECTION
Type		J13	J14
»	Mixed	Pins 1 & 2 closed	Pins 1 & 2 closed
	3.3v	Pins 2 & 3 closed	Pins 2 & 3 closed

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	J10	J11	J12	J22
75MHz	50MHz	1.5x	2 & 3	1 & 2	2 & 3	Closed
90MHz	60MHz	1.5x	1 & 2	1 & 2	1 & 2	Open
100MHz	66MHz	1.5x	1 & 2	2 & 3	2 & 3	Open
120MHz	60MHz	2x	1 & 2	1 & 2	1 & 2	Open
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION
Voltage		J19	J20	J21
»	3.3v	Closed	Open	Open
	3.45v	Open	Closed	Open
	3.8v	Open	Open	Closed

CMOS MEMORY SELECTION
Setting		J1	J2
»	Normal operation	Open	Pins 1 & 2 closed
	Clear	Pins 2 & 3 closed	Pins 2 & 3 closed
Note: J1 & J2 configure both CMOS and the external battery.
