Device Type

Mainboard

Processor

AMK5/AMK6/CX 6x86/Pentium/MMX/Pentium OverDrive/

Processor Speed

75/90/100/120/133/150/166/180/200/233

Chip Set

Intel

Maximum Onboard Memory

256MB DRAM (EDO supported)

Cache

256/512

BIOS

Award

I/O Options

32-bit PCI slots (4), floppy drive interface, IDE interface (2), parallel port, serial ports (2), PS/2 mouse port, PS/2 or AT keyboard port/USB connectors (2) IR connector/green PC connector

Dimensions

250mm x 220mm

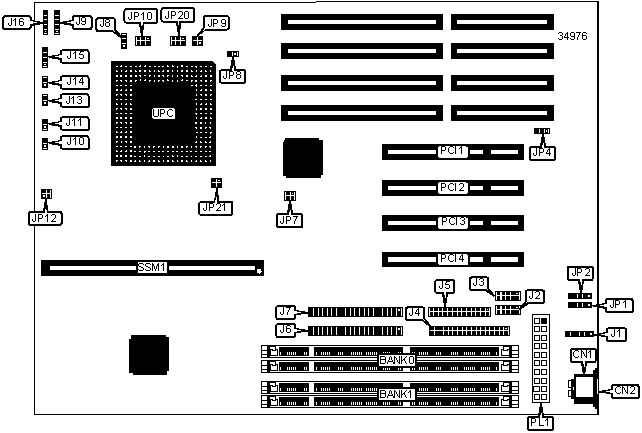

CONNECTIONS

Purpose

Location

Purpose

Location

PS/2 mouse connector

J1

Green PC connector

J13

Serial port 1

J2

Reset switch

J14

Serial port 2

J3

Speaker

J15

Floppy drive interface

J4

Power LED & keylock

J16

Parallel port

J5

PS/2 keyboard connector

CN1

IDE interface 1

J6

AT keyboard connector

CN2

IDE interface 2

J7

Power connector

PL1

Fan connector

J8

USB connector

JP1

IR connector

J9

USB connector

JP2

IDE interface LED

J10

Cache slot

SSM1

Green PC LED

J11

32-bit PCI slots

PCI1-4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Display adapter set to color

JP4

Pins 1&2 closed

Display adapter set to mono

JP4

Pins 2&3 closed

»

CMOS memory normal operation

JP8

open

CMOS memory clear

JP8

closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1MB x 36

None

16MB

(2) 2MB x 36

None

16MB

(2) 1MB x 36

(2) 1MB x 36

24MB

(2) 1MB x 36

(2) 2MB x 36

32MB

(2) 4MB x 36

None

32MB

(2) 2MB x 36

(2) 2MB x 36

40MB

(2) 1MB x 36

(2) 4MB x 36

48MB

(2) 2MB x 36

(2) 4MB x 36

64MB

(2) 8MB x 36

None

64MB

(2) 4MB x 36

(2) 4MB x 36

72MB

(2) 1MB x 36

(2) 8MB x 36

80MB

(2) 8MB X36

(2) 2MB X 36

96MB

(2) 4MB x 36

(2) 8MB x 36

128MB

(2) 16MB x 36

None

128MB

(2) 8MB x 36

(2) 8MB x 36

136MB

(2) 1MB x 36

(2) 16MB x 36

144MB

(2) 2MB x 36

(2) 16MB x 36

160MB

(2) 4MB x 36

(2) 16MB x 36

192MB

(2) 8MB x 36

(2) 8MB x 36

192 MB

(2) 16MB x 36

(2) 8MB x 36

256 MB

(2) 16MB x 36

(2) 16MB x 36

Note: Banks 0 & 1 are interchangable.

CACHE CONFIGURATION

Note: The G586IPC come with 256KB or 512KB cache installed (location unidentified). If it has 256KB installed it may be upgraded to 512KB by adding 256KB in slot SSM1.

CPU SPEED SELECTION (CX 6X86)

Speed

Clock speed

Multiplier

JP7

JP12

120MHz

50MHz

2x

1 & 2 closed, 3 & 4 closed

Pins 1 & 2 closed

133MHz

55MHz

2x

Open

Pins 1 & 2 closed

150MHz

60MHz

2x

Pins 1 & 2 closed

Pins 1 & 2 closed

166MHz

66Mhz

2x

Pins 3 & 4 closed

Pins 1 & 2 closed

CPU SPEED SELECTION (AM K5)

Speed

Clock speed

Multiplier

JP7

JP12

75MHz

50MHz

1.5x

1 & 2 closed, 3 & 4 closed

Open

90MHz

60 MHz

1.5x

Pins 1 & 2 closed

Open

100MHz

66MHz

1.5x

Pins 3 & 4 closed

Open

120MHz

60MHz

1.5x

Pins 1 & 2 closed

Open

133MHz

66MHz

1.5x

Pins 3 & 4 closed

Open

166MHz

66MHz

1.75x

Pins 3 & 4 closed

1 & 2 closed, 3 & 4 closed

CPU SPEED SELECTION (AM K6)

Speed

Clock speed

Multiplier

JP7

JP12

166MHz

66MHz

1.75x

Pins 3 & 4 closed

1 & 2 closed, 3 & 4 closed

CPU SPEED SELECTION (INTEL)

Speed

Clock speed

Multiplier

JP7

JP12

75MHz

50MHz

1.5x

1 & 2 closed, 3 & 4 closed

Open

90MHz

60MHz

1.5x

Pins 1 & 2 closed

Open

100MHz

66MHz

1.5x

Pins 3 & 4 closed

Open

120MHz

60MHz

2x

Pins 1 & 2 closed

Pins 1 & 2 closed

133MHz

66MHz

2x

Pins 3 & 4 closed

Pins 1 & 2 closed

150MHz

60MHz

2.5x

Pins 1 & 2 closed

1 & 2 closed, 3 & 4 closed

166MHz

66MHz

2.5x

Pins 3 & 4 closed

1 & 2 closed, 3 & 4 closed

200MHz

66MHz

3x

Pins 3 & 4 closed

Pins 3 & 4 closed

CPU SPEED SELECTION (INTEL MMX)

Speed

Clock speed

Multiplier

JP7

JP12

166MHz

66MHz

2.5x

Pins 3 & 4 closed

1 & 2 closed, 3 & 4 closed

200MHz

66MHz

3x

Pins 3 & 4 closed

Pins 3 & 4 closed

233MHz

66MHz

3.5x

Pins 3 & 4 closed

Open

CPU VOLTAGE SELECTION

Voltage

JP9

JP10

JP20

JP21

2.5V

3&4 closed

1 & 3 , 2 & 4

5 & 6 closed

Open

2.8V

3&4 closed

1 & 3 , 2 & 4

3 & 4 closed

Open

2.9V

3&4 closed

1 & 3 , 2 & 4

1 & 2 closed

Open

3.3V

3&4 closed

3 & 5 , 4 & 6

3 & 4 closed

1 & 2 , 3 & 4

3.5V

1&2

3 & 5 , 4 & 6

3 & 4

1 & 2 , 3 & 4

Note: Numbers designate pins that should be in the closed position.
