DIGITAL EQUIPMENT CORPORATION
DIGITAL SERVER 7100
|
Device Type |
Mainboard |
|
Processor |
Pentium Pro |
|
Processor Speed |
120/133/150/166/180/200/210/233/240/266/270/300/330/333366MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
4GB |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB (located on Pentium Pro CPU) |
|
BIOS |
Unidentified |
|
Dimensions |
305mm x 244mm |
|
I/O Options |
32-bit PCI slots (8), floppy drive interface, parallel port, PS/2 mouse port, serial ports (2) |
|
NPU Options |
None |
|

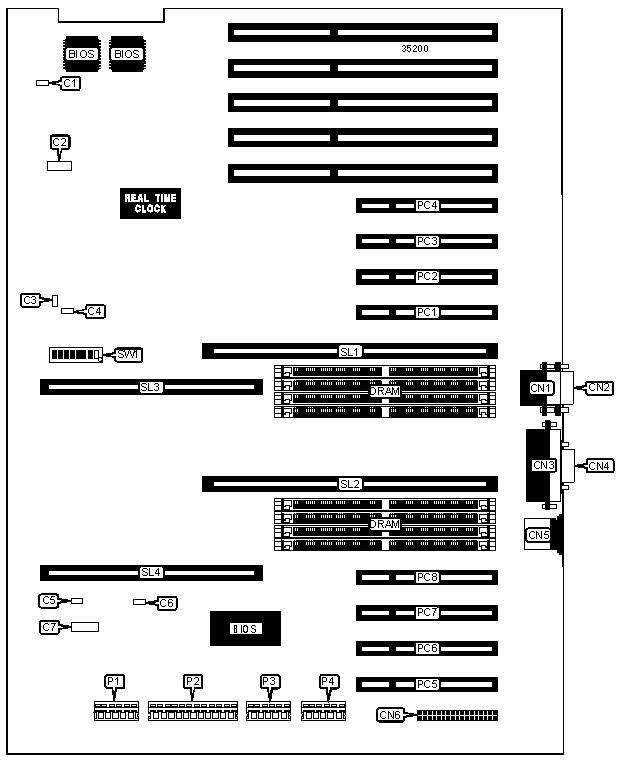

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Chassis fan power |
C1 |
VGA port |
CN4 |
|
RSM connector |
C2 |
PS/2 mouse port |
CN5 |
|
Speaker |
C3 |
Floppy drive interface |
CN6 |
|
Chassis fan power |
C4 |
Power control connector |
P1 |
|
Chassis fan power |
C5 |
5v power |
P2 |
|
Chassis fan power |
C6 |
3.3v power |
P3 |
|
OCP connector |
C7 |
Power backplane connector |
P4 |
|
Serial port |
CN1 |
32-bit PCI slots |
PC1 – PC8 |
|
Serial port |
CN2 |
Memory slots |
SL1 & SL2 |
|
Parallel port |
CN3 |
CPU slots |
SL3 & SL4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
BIOS upgrade enabled |
SW1/1 |
On |
|
BIOS upgrade disabled |
SW1/1 |
Off | |
|
» |
BIOS normal operation |
SW1/2 |
Off |
|
BIOS recovery mode |
SW1/2 |
On | |
|
» |
Boot block update disabled |
SW1/3 |
Off |
|
Boot block update enabled |
SW1/3 |
On | |
|
» |
Password normal operation |
SW1/4 |
Off |
|
Password clear |
SW1/4 |
On | |
|
» |
RSM not installed |
SW1/5 |
On |
|
RSM installed |
SW1/5 |
Off | |
|
» |
CMOS memory normal operation |
SW1/6 |
Off |
|
CMOS memory clear |
SW1/6 |
On | |
|
» |
Factory configured - do not alter |
SW1/8 |
Off |
|
SIMM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
128MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
CPU BUS SPEED SELECTION | |
|
Bus speed |
SW1/7 |
|
60MHz |
Off |
|
66MHz |
On |
|

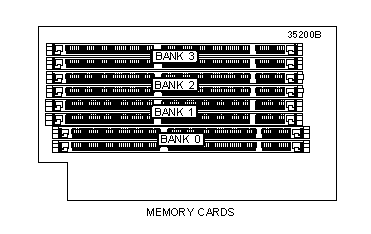

DIMM CONFIGURATION | ||||
|
Size |
Bank 0’s |
Bank 1’s |
Bank 2’s |
Bank 3’s |
|
128MB |
(4) 4M x 64 |
None |
None |
None |
|
256MB |
(4) 4M x 64 |
(4) 4M x 64 |
None |
None |
|
256MB |
(4) 8M x 64 |
None |
None |
None |
|
384MB |
(4) 4M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
None |
|
384MB |
(4) 8M x 64 |
(4) 4M x 64 |
None |
None |
|
512MB |
(4) 4M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
|
512MB |
(4) 8M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
None |
|
512MB |
(4) 8M x 64 |
(4) 8M x 64 |
None |
None |
|
512MB |
(4) 16M x 64 |
None |
None |
None |
|
640MB |
(4) 8M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
|
640MB |
(4) 8M x 64 |
(4) 8M x 64 |
(4) 4M x 64 |
None |
|
640MB |
(4) 16M x 64 |
(4) 4M x 64 |
None |
None |
|
768MB |
(4) 8M x 64 |
(4) 8M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
|
768MB |
(4) 8M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
None |
|
768MB |
(4) 16M x 64 |
(4) 8M x 64 |
None |
None |
|
768MB |
(4) 16M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
None |
|
896MB |
(4) 8M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
(4) 4M x 64 |
|
896MB |
(4) 16M x 64 |
(4) 8M x 64 |
(4) 4M x 64 |
None |
|
896MB |
(4) 16M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
|
1024MB |
(4) 8M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
|
1024MB |
(4) 16M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
None |
|
1024MB |
(4) 16M x 64 |
(4) 16M x 64 |
None |
None |
|
1024MB |
(4) 32M x 64 |
None |
None |
None |
|
DIMM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0’s |
Bank 1’s |
Bank 2’s |
Bank 3’s |
|
1152MB |
(4) 16M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
(4) 4M x 64 |
|
1152MB |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 4M x 64 |
None |
|
1152MB |
(4) 32M x 64 |
(4) 4M x 64 |
None |
None |
|
1280MB |
(4) 16M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
|
1280MB |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 8M x 64 |
None |
|
1280MB |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
|
1280MB |
(4) 32M x 64 |
(4) 8M x 64 |
None |
None |
|
1280MB |
(4) 32M x 64 |
(4) 4M x 64 |
(4) 4M x 64 |
None |
|
1408MB |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 8M x 64 |
(4) 4M x 64 |
|
1408MB |
(4) 32M x 64 |
(4) 8M x 64 |
(4) 4M x 64 |
None |
|
1536MB |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
|
1536MB |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 16M x 64 |
None |
|
1536MB |
(4) 32M x 64 |
(4) 16M x 64 |
None |
None |
|
1536MB |
(4) 32M x 64 |
(4) 8M x 64 |
(4) 8M x 64 |
None |
|
1664MB |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 4M x 64 |
|
1664MB |
(4) 32M x 64 |
(4) 16M x 64 |
(4) 4M x 64 |
None |
|
1792MB |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 8M x 64 |
|
1792MB |
(4) 32M x 64 |
(4) 16M x 64 |
(4) 8M x 64 |
None |
|
2048MB |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 16M x 64 |
(4) 16M x 64 |
|
2048MB |
(4) 32M x 64 |
(4) 32M x 64 |
None |
None |
|
2048MB |
(4) 32M x 64 |
(4) 16M x 64 |
(4) 16M x 64 |
None |
|
2176MB |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 4M x 64 |
None |
|
2304MB |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 8M x 64 |
None |
|
2560MB |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 16M x 64 |
None |
|
3072MB |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 32M x 64 |
None |
|
3200MB |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 4M x 64 |
|
3328MB |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 8M x 64 |
|
3584MB |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 16M x 64 |
|
4096MB |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 32M x 64 |
(4) 32M x 64 |
|
Note: The above memory configuration requires the use of 2 DIMMs per card and 2 memory cards. Both bank 0’s must be filled before filling the bank 1’s. | ||||
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VRM connector |
VRM1 |
VRM connector |
VRM2 |
|

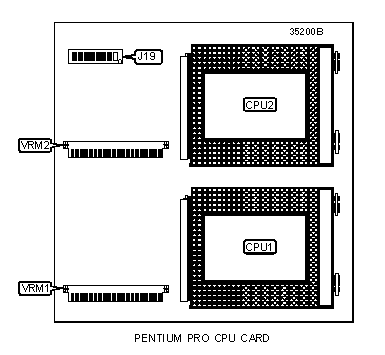

CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
|
