DTK COMPUTER, INC.
PRM-0076I (VER. 3.00)
|
Device Type |
Mainboard |
|
Processor |
Pentium II |
|
Processor Speed |
233/266/300/333MHz |
|
Chip Set |
Intel 440LX |
|
Maximum Onboard Memory |
768MB (EDO & SDRAM supported) |
|
Cache |
512KB (located on the Pentium II CPU) |
|
BIOS |
Award |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, IDE interface (2), parallel port, PS/2 mouse port, serial ports (2), USB connectors (2), IR connector, AGP slot, ATX power connector |
|
Dimensions |
305mm x 180mm |
|

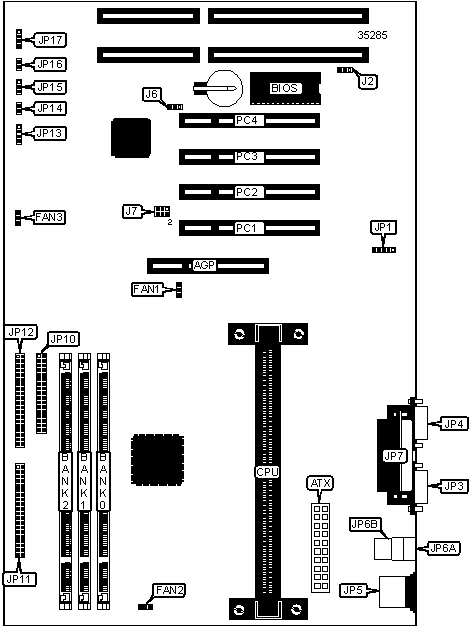

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
Parallel port |
JP7 |
|
ATX power connector |
ATX |
Floppy drive interface |
JP10 |
|
CPU fan power |
FAN1 |
IDE interface 2 |
JP11 |
|
System fan power |
FAN2 |
IDE interface 1 |
JP12 |
|
System fan power |
FAN3 |
IDE interface LED |
JP13 |
|
IR connector |
JP1 |
Power switch |
JP14 |
|
Serial port 1 |
JP3 |
Power LED |
JP15 |
|
Serial port 2 |
JP4 |
Reset switch |
JP16 |
|
PS/2 mouse port |
JP5 |
Speaker |
JP17 |
|
USB connector 1 |
JP6A |
32-bit PCI slots |
PC1 - PC4 |
|
USB connector 2 |
JP6B | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Flash BIOS voltage select 12v |
J2 |
Pins 2 & 3 closed | |
|
Flash BIOS voltage select 5v |
J2 |
Pins 1 & 2 closed | |
|
» |
CMOS memory normal operation |
J6 |
Pins 1 & 2 closed |
|
CMOS memory clear |
J6 |
Pins 2 & 3 closed | |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(1) 1MB x 64 |
None |
None |
|
16MB |
(1) 1MB x 64 |
(1) 1MB x 64 |
None |
|
16MB |
(1) 2MB x 64 |
None |
None |
|
24MB |
(1) 1MB x 64 |
(1) 1MB x 64 |
(1) 1MB x 64 |
|
24MB |
(1) 2MB x 64 |
(1) 1MB x 64 |
None |
|
32MB |
(1) 2MB x 64 |
(1) 2MB x 64 |
None |
|
32MB |
(1) 4MB x 64 |
None |
None |
|
40MB |
(1) 2MB x 64 |
(1) 2MB x 64 |
(1) 1MB x 64 |
|
40MB |
(1) 4MB x 64 |
(1) 1MB x 64 |
None |
|
48MB |
(1) 2MB x 64 |
(1) 2MB x 64 |
(1) 2MB x 64 |
|
48MB |
(1) 4MB x 64 |
(1) 2MB x 64 |
None |
|
64MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
None |
|
64MB |
(1) 8MB x 64 |
None |
None |
|
72MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
(1) 1MB x 64 |
|
72MB |
(1) 8MB x 64 |
(1) 1MB x 64 |
None |
|
80MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
(1) 2MB x 64 |
|
80MB |
(1) 8MB x 64 |
(1) 2MB x 64 |
None |
|
96MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
(1) 4MB x 64 |
|
96MB |
(1) 8MB x 64 |
(1) 4MB x 64 |
None |
|
128MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
None |
|
128MB |
(1) 16MB x 64 |
None |
None |
|
DRAM CONFIGURATION (CONT.) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
136MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
(1) 1MB x 64 |
|
136MB |
(1) 16MB x 64 |
(1) 1MB x 64 |
None |
|
144MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
(1) 2MB x 64 |
|
144MB |
(1) 16MB x 64 |
(1) 2MB x 64 |
None |
|
160MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
(1) 4MB x 64 |
|
160MB |
(1) 16MB x 64 |
(1) 4MB x 64 |
None |
|
192MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
(1) 8MBx 64 |
|
192MB |
(1) 16MB x 64 |
(1) 8MB x 64 |
None |
|
256MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
None |
|
256MB |
(1) 32MB x 64 |
None |
None |
|
264MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 1MB x 64 |
|
272MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 2MB x 64 |
|
288MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 4MB x 64 |
|
320MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 8MB x 64 |
|
384MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 16MB x 64 |
|
384MB |
(1) 32MB x 64 |
(1) 16MB x 64 |
None |
|
512MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
None |
|
768MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 32MB x 64 |
|
Note: Board accepts EDO and SDRAM. Maximum EDO is 768MB. Maximum SDRAM is 384MB. | |||
|
CPU SPEED SELECTION | |||
|
Speed |
Clock speed |
Multiplier |
J7 |
|
233MHz |
66MHz |
3.5x |
Pins 5 & 6 closed |
|
266MHz |
66MHz |
4x |
Pins 1 & 2, 3 & 4 closed |
|
300MHz |
66MHz |
4.5x |
Pins 3 & 4 closed |
|
333MHz |
66MHz |
5x |
Pins 1 & 2 closed |
