Device Type

Mainboard

Processor

Pentium/Pentium Pro

Processor Speed

90/100/120/133/150/166MHz

Chip Set

Alpha AXP

Video Chip Set

None

Maximum Onboard Memory

512MB

Maximum Video Memory

None

Cache

256/512KB

BIOS

Unidentified

Dimensions

220mm x 220mm

I/O Options

32-bit PCI slots (3), IDE inteface, floppy drive interface, CPU slot

NPU Options

None

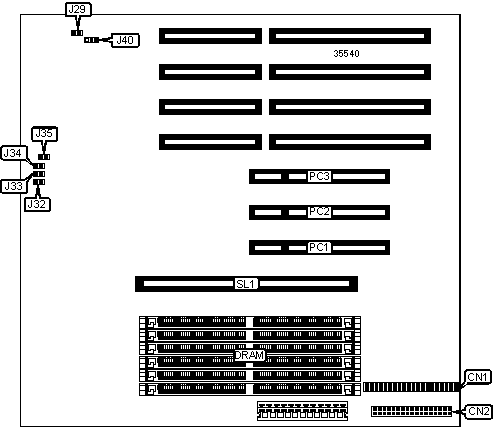

CONNECTIONS

Purpose

Location

Purpose

Location

IDE interface

CN1

32-bit PCI slots

PC1 - PC3

Floppy drive interface

CN2

CPU slot

SL1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

J29

Open

CMOS memory clear

J29

Closed

»

Password normal operation

J32

Open

Password clear

J32

Closed

»

Monitor type select monochrome

J33

Open

Monitor type select color

J33

Closed

»

Flash BIOS normal operation

J34

Open

Flash BIOS recovery mode

J34

Closed

»

Flash BIOS upgrade enabled

J35

Closed

Flash BIOS upgrade disabled

J35

Open

»

Boot block programming disabled

J40

Pins 1 & 2 closed

Boot block programming enabled

J40

Pins 2 & 3 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(2) 1M x 36

None

None

16MB

(2) 2M x 36

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

24MB

(2) 2M x 36

(2) 1M x 36

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

None

32MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 2M x 36

(2) 2M x 36

None

36MB

(2) 8M x 36

None

None

36MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

36MB

(2) 4M x 36

(2) 4M x 36

None

40MB

(2) 4M x 36

(2) 1M x 36

None

40MB

(2) 2M x 36

(2) 2M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

SIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

48MB

(2) 4M x 36

(2) 2M x 36

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

56MB

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

72MB

(2) 8M x 36

(2) 1M x 36

None

72MB

(2) 4M x 36

(2) 4M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

None

80MB

(2) 4M x 36

(2) 4M x 36

(2) 2M x 36

88MB

(2) 8M x 36

(2) 2M x 36

(2) 1M x 36

96MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

104MB

(2) 8M x 36

(2) 4M x 36

(2) 1M x 36

128MB

(2) 16M x 36

None

None

128MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

None

136MB

(2) 8M x 36

(2) 8M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

None

160MB

(2) 8M x 36

(2) 8M x 36

(2) 4M x 36

168MB

(2) 16M x 36

(2) 4M x 36

(2) 1M x 36

176MB

(2) 16M x 36

(2) 4M x 36

(2) 2M x 36

192MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

None

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

200MB

(2) 16M x 36

(2) 8M x 36

(2) 1M x 36

256MB

(2) 32M x 36

None

None

256MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

272MB

(2) 32M x 36

(2) 1M x 36

(2) 1M x 36

272MB

(2) 32M x 36

(2) 2M x 36

None

288MB

(2) 32M x 36

(2) 2M x 36

(2) 2M x 36

288MB

(2) 32M x 36

(2) 4M x 36

None

320MB

(2) 32M x 36

(2) 4M x 36

(2) 4M x 36

SIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

320MB

(2) 32M x 36

(2) 8M x 36

None

384MB

(2) 32M x 36

(2) 8M x 36

(2) 8M x 36

384MB

(2) 32M x 36

(2) 16M x 36

None

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 16M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 32M x 36

None

Note: Maximum memory for the Pentium is 384MB.

CACHE CONFIGURATION

Note: 256/512KB cache is located on the CPU card.
