CHAINTECH COMPUTER COMPANY, LTD.
CT-6BTA2
|
 Device Type  |
 Mainboard  |
|
 Processor  |
 Pentium II/Celeron  |
|
 Processor Speed  |
 233/266/300/333/350/366/400/450MHz  |
|
 Chip Set  |
 Intel 440BX  |
|
 Video Chip Set  |
 None  |
|
 Maximum Onboard Memory  |
 384MB (SDRAM supported)  |
|
 Maximum Video Memory  |
 None  |
|
 Cache  |
 0/128/256/512KB (located on the CPU)  |
|
 BIOS  |
 Award  |
|
 Dimensions  |
 305mm x 205mm  |
|
 I/O Options  |
 32-bit PCI slots (4), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROMs (2), SB-link connector, wake on LAN connector  |

|

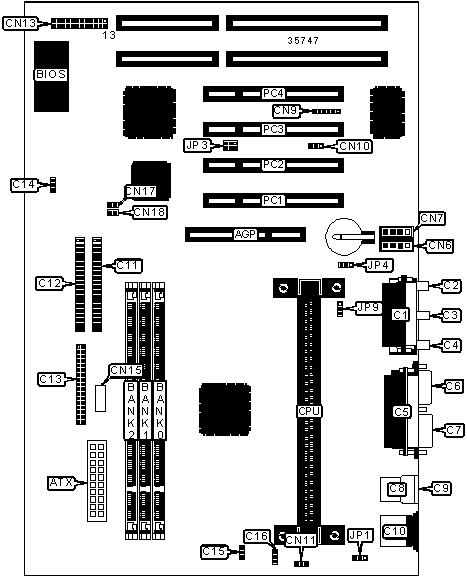

 CONNECTIONS  |
|||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 AGP slot  |
 AGP  |
 Audio in - CD-ROM  |
 CN6  |
|
 ATX power connector  |
 ATX  |
 Audio in - CD-ROM  |
 CN7  |
|
 Game/MIDI port  |
 C1  |
 IR connector  |
 CN9  |
|
 Microphone in  |
 C2  |
 Wake on LAN connector  |
 CN10  |
|
 Line in  |
 C3  |
 Chassis intrusion connector  |
 CN11  |
|
 Line out  |
 C4  |
 Power LED & keylock  |
 CN13/pins 1 - 5  |
|
 Parallel port  |
 C5  |
 Speaker  |
 CN13/pins 7 - 10  |
|
 Serial port 2  |
 C6  |
 Soft off power supply  |
 CN13/pins 11 & 12  |
|
 Serial port 1  |
 C7  |
 Turbo LED  |
 CN13/pins 13 & 14  |
|
 USB connector 1  |
 C8  |
 Green PC connector  |
 CN13/pins 16 & 17  |
|
 USB connector 2  |
 C9  |
 Green PC LED  |
 CN13/pins 18 & 19  |
|
 PS/2 mouse port  |
 C10  |
 Reset switch  |
 CN13/pins 21 & 22  |
|
 IDE interface 2  |
 C11  |
 IDE interface LED  |
 CN13/pins 23 & 24  |
|
 IDE interface 1  |
 C12  |
 Fan II connector  |
 CN15  |
|
 Floppy drive interface  |
 C13  |
 Volume down connector  |
 CN17  |
|
 Chassis fan power  |
 C14  |
 Volume up connector  |
 CN18  |
|
 Chassis fan power  |
 C15  |
 SB-link connector  |
 JP3  |
|
 CPU fan power  |
 C16  |
 32-bit PCI slots  |
 PC1 - PC4  |
|
 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Label  |
 Position  |
|
|
 »  |
 Keyboard power on disabled  |
 JP1  |
 Pins 1 & 2 closed  |
|

  |
 Keyboard power on enabled  |
 JP1  |
 Pins 2 & 3 closed  |
|
 »  |
 CMOS memory normal operation  |
 JP4  |
 Pins 1 & 2 closed  |
|

  |
 CMOS memory clear  |
 JP4  |
 Pins 2 & 3 closed  |
|
 DIMM CONFIGURATION  |
|||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
|
 16MB  |
 (1) 2M x 64  |
 None  |
 None  |
|
 32MB  |
 (1) 4M x 64  |
 None  |
 None  |
|
 32MB  |
 (1) 2M x 64  |
 (1) 2M x 64  |
 None  |
|
 48MB  |
 (1) 4M x 64  |
 (1) 2M x 64  |
 None  |
|
 48MB  |
 (1) 2M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
|
 64MB  |
 (1) 8M x 64  |
 None  |
 None  |
|
 DIMM CONFIGURATION (CON'T)  |
|||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
|
 64MB  |
 (1) 4M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
|
 64MB  |
 (1) 4M x 64  |
 (1) 4M x 64  |
 None  |
|
 80MB  |
 (1) 8M x 64  |
 (1) 2M x 64  |
 None  |
|
 80MB  |
 (1) 4M x 64  |
 (1) 4M x 64  |
 (1) 2M x 64  |
|
 96MB  |
 (1) 8M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
|
 96MB  |
 (1) 8M x 64  |
 (1) 4M x 64  |
 None  |
|
 96MB  |
 (1) 4M x 64  |
 (1) 4M x 64  |
 (1) 4M x 64  |
|
 112MB  |
 (1) 8M x 64  |
 (1) 4M x 64  |
 (1) 2M x 64  |
|
 128MB  |
 (1) 16M x 64  |
 None  |
 None  |
|
 128MB  |
 (1) 8M x 64  |
 (1) 4M x 64  |
 (1) 4M x 64  |
|
 128MB  |
 (1) 8M x 64  |
 (1) 8M x 64  |
 None  |
|
 144MB  |
 (1) 16M x 64  |
 (1) 2M x 64  |
 None  |
|
 144MB  |
 (1) 8M x 64  |
 (1) 8M x 64  |
 (1) 2M x 64  |
|
 160MB  |
 (1) 16M x 64  |
 (1) 2M x 64  |
 (1) 2M x 64  |
|
 160MB  |
 (1) 16M x 64  |
 (1) 4M x 64  |
 None  |
|
 160MB  |
 (1) 8M x 64  |
 (1) 8M x 64  |
 (1) 4M x 64  |
|
 176MB  |
 (1) 16M x 64  |
 (1) 4M x 64  |
 (1) 2M x 64  |
|
 192MB  |
 (1) 16M x 64  |
 (1) 4M x 64  |
 (1) 4M x 64  |
|
 192MB  |
 (1) 16M x 64  |
 (1) 8M x 64  |
 None  |
|
 192MB  |
 (1) 8M x 64  |
 (1) 8M x 64  |
 (1) 8M x 64  |
|
 208MB  |
 (1) 16M x 64  |
 (1) 8M x 64  |
 (1) 2M x 64  |
|
 224MB  |
 (1) 16M x 64  |
 (1) 8M x 64  |
 (1) 4M x 64  |
|
 256MB  |
 (1) 16M x 64  |
 (1) 8M x 64  |
 (1) 8M x 64  |
|
 384MB  |
 (1) 16M x 64  |
 (1) 16M x 64  |
 (1) 16M x 64  |
|
 Note: Board accepts SDRAM memory.  |
|||
|
 CACHE CONFIGURATION  |
|
 Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU.  |
|
 CPU SPEED CONFIGURATION  |
||
|
 Speed  |
 JP9  |
|
|
 »  |
 Determined by CPU  |
 Pins 2 & 3 closed  |
|

  |
 100MHz  |
 Pins 1 & 2 closed  |
