DIAMOND FLOWER, INC.
P5BV3+ (REV.B+)
|
Device Type |
Mainboard |
|
Processor |
CX 6X86MX/CX 6X86MII/IBM 6X86MX/AM K6/AM K6-2/IDT C6/IDT WINCHIP2/Pentium MMX |
|
Processor Speed |
166/200/250/266/300/333/350MHz |
|
Chip Set |
VIA |
|
Maximum Onboard Memory |
256MB |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
305mm x 244mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, |
|

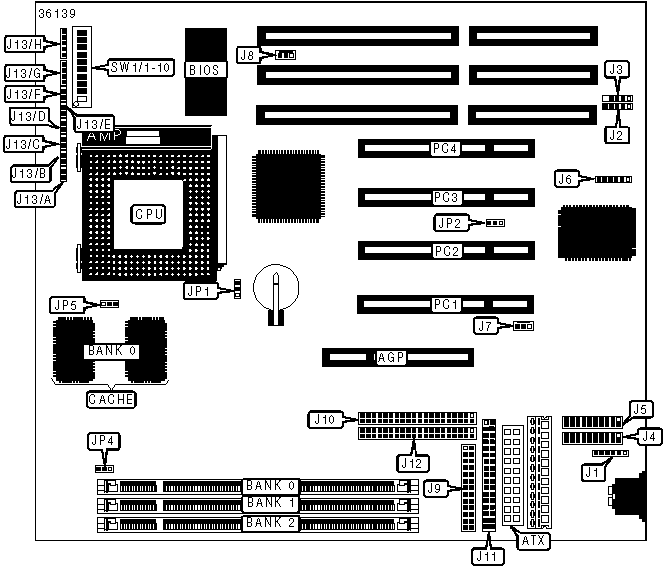

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
Floppy drive interface |
J11 |
|
ATX power connector |
ATX |
IDE interface 1 |
J12 |
|
PS/2 mouse interface |
J1 |
Standby LED |
J13/A |
|
USB connector 1 |
J2 |
Soft off power supply |
J13/B |
|
USB connector 2 |
J3 |
IDE interface LED |
J13/C |
|
Serial port 1 |
J4 |
Green PC LED |
J13/D |
|
Serial port 2 |
J5 |
Green switch |
J13/E |
|
IR connector |
J6 |
Reset switch |
J13/F |
|
AGP fan power |
J7 |
Speaker |
J13/G |
|
CPU fan power |
J8 |
Power LED & keylock |
J13/H |
|
Parallel port |
J9 |
32-bit PCI slots |
PC1 - PC4 |
|
IDE interface 2 |
J10 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
JP1 |
Pins 2 & 3 closed |
|
CMOS memory clear |
JP1 |
Pins 1 & 2 closed | |
|
» |
AT power on |
JP2 |
Pins 2 & 3 closed |
|
ATX power on |
JP2 |
Pins 1 & 2 closed | |
|
» |
SDRAM clock = AGP clock |
JP4 |
Pins 1 & 2 closed |
|
SDRAM clock = CPU clock |
JP4 |
Pins 2 & 3 closed | |
|
DIMM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
8MB |
(1) 1M x 64 |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
16MB |
(1) 2M x 64 |
None |
None |
|
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
32MB |
(1) 4M x 64 |
None |
None |
|
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
|
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
64MB |
(1) 8M x 64 |
None |
None |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
None |
|
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
|
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
88MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
DIMM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
104MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
128MB |
(1) 16M x 64 |
None |
None |
|
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
None |
|
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
|
152MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
|
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
|
168MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
|
176MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
|
200MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
|
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
|
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
512KB |
(1) 64K x 64 |
|
CPU SPEED SELECTION (INTEL MMX) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
On |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
On |
On |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
On |
On |
Off |
Off |
Off |
|
CPU SPEED SELECTION (CX 6X86 MX) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
66MHz |
2.5x |
Off |
On |
On |
On |
On |
Off |
|
233MHz |
75MHz |
2.5x |
On |
On |
Off |
On |
On |
Off |
|
266MHz |
83MHz |
2.5x |
Off |
On |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (CX 6X86 MII) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
300MHz |
66MHz |
3.5x |
Off |
On |
On |
Off |
Off |
Off |
|
300MHz |
75MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
333MHz |
83MHz |
3x |
Off |
On |
Off |
Off |
On |
Off |
|
350MHz |
100MHz |
3x |
Off |
Off |
Off |
Off |
On |
Off |
|
400MHz |
100MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (IBM 6X86MX) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
66MHz |
2.5x |
Off |
On |
On |
On |
On |
Off |
|
233MHz |
75MHz |
2.5x |
On |
On |
Off |
On |
On |
Off |
|
266MHz |
83MHz |
2.5x |
Off |
On |
Off |
On |
On |
Off |
|
300MHz |
66MHz |
3.5x |
Off |
On |
On |
Off |
Off |
Off |
|
300MHz |
75MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
333MHz |
83MHz |
3x |
Off |
On |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (AM K6) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
200MHz |
66MHz |
3x |
Off |
On |
On |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
On |
On |
Off |
Off |
Off |
|
266MHz |
66MHz |
4x |
Off |
On |
On |
On |
Off |
On |
|
300MHz |
66MHz |
4.5x |
Off |
On |
On |
On |
On |
On |
|
CPU SPEED SELECTION (AM K6-2) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
250MHz |
100MHz |
2.5x |
Off |
Off |
Off |
On |
On |
Off |
|
266MHz |
66MHz |
4x |
Off |
On |
On |
On |
Off |
On |
|
300MHz |
100MHz |
3x |
Off |
Off |
Off |
Off |
On |
Off |
|
333MHz |
95MHz |
3.5x |
On |
Off |
Off |
Off |
Off |
Off |
|
350MHz |
100MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
400MHz |
100MHz |
4x |
Off |
Off |
Off |
On |
Off |
On |
|
CPU SPEED SELECTION (IDT C6) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
180MHz |
60MHz |
3x |
On |
On |
On |
Off |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
On |
On |
Off |
On |
Off |
|
225MHz |
75MHz |
3x |
On |
On |
Off |
Off |
On |
Off |
|
240MHz |
66MHz |
4x |
Off |
On |
On |
On |
Off |
On |
|
CPU SPEED SELECTION (IDT WINCHIP2) | ||||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
240MHz |
66MHz |
4x |
Off |
On |
On |
On |
Off |
On |
|
266MHz |
83MHz |
3x |
Off |
On |
Off |
Off |
On |
Off |
|
300MHz |
100MHz |
3x |
Off |
Off |
Off |
Off |
On |
Off |
|
CPU VOLTAGE SELECTION (DUAL) | |||||
|
Voltage |
JP5 |
SW1/7 |
SW1/8 |
SW1/9 |
SW1/10 |
|
2.1v |
Pins 1 & 2 closed |
On |
Off |
Off |
Off |
|
2.2v |
Pins 1 & 2 closed |
Off |
On |
Off |
Off |
|
2.5v |
Pins 1 & 2 closed |
On |
Off |
On |
Off |
|
2.8v |
Pins 1 & 2 closed |
Off |
Off |
Off |
On |
|
2.9v |
Pins 1 & 2 closed |
On |
Off |
Off |
On |
|
3.2v |
Pins 1 & 2 closed |
Off |
Off |
On |
On |
|
3.3v |
Pins 2 & 3 closed |
On |
Off |
On |
On |
|
3.5v |
Pins 2 & 3 closed |
On |
On |
On |
On |
