Processor	80386DX
Processor speed	25MHz
Chip Set	Unidentified
Max. Onboard DRAM	32MB
Cache	32KB
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	Bus mouse
NPU Options	80387/3167

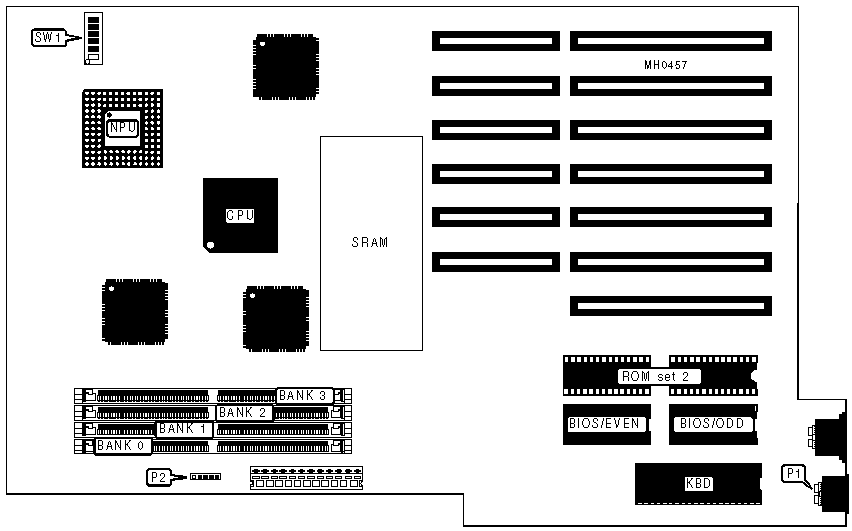

CONNECTIONS
Purpose	Location	Purpose	Location
Bus mouse	P1	Power LED & keylock	P2
Note:Location of P2 unidentified

USER CONFIGURABLE SETTINGS
Function		Switch	Position
»	Power-on password enabled	SW1/1	On
	Power-on password disabled	SW1/1	Off
»	ROM set 2 enabled	SW1/2	On
	ROM set 2 disabled	SW1/2	Off
»	Cache enabled	SW1/3	On
	Cache disabled	SW1/3	Off
»	Bus speed select 8MHz	SW1/4	On
	Bus speed select 8.3MHz	SW1/4	Off
»	Bus mouse enabled (IRQ12)	SW1/5	On
	Bus mouse disabled	SW1/5	Off
»	Factory configured - do not alter	SW1/6	On

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
2MB	(1) 512K x 36	NONE	NONE	NONE
4MB	(1) 512K x 36	(1) 512K x 36	NONE	NONE
6MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	NONE
8MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
8MB	(1) 2M x 36	NONE	NONE	NONE
10MB	(1) 2M x 36	(1) 512K x 36	NONE	NONE
12MB	(1) 2M x 36	(1) 512K x 36	(1) 512K x 36	NONE
14MB	(1) 2M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
16MB	(1) 2M x 36	(1) 2M x 36	NONE	NONE
18MB	(1) 2M x 36	(1) 2M x 36	(1) 512K x 36	NONE
20MB	(1) 2M x 36	(1) 2M x 36	(1) 512K x 36	(1) 512K x 36
24MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	NONE
26MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	(1) 512K x 36
32MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36

CACHE CONFIGURATION
Size	Bank 0
32KB	(4) 16K x 4
Note:Cache is factory installed and is not configurable.
