Processor	80486DX
Processor Speed	33MHz
Chip Set	VLSI
Max. Onboard DRAM	8MB
Cache	64/256KB
BIOS	Phoenix
Dimensions	350mm x 304mm
I/O Options	32-bit external memory card slot
NPU Options	4167

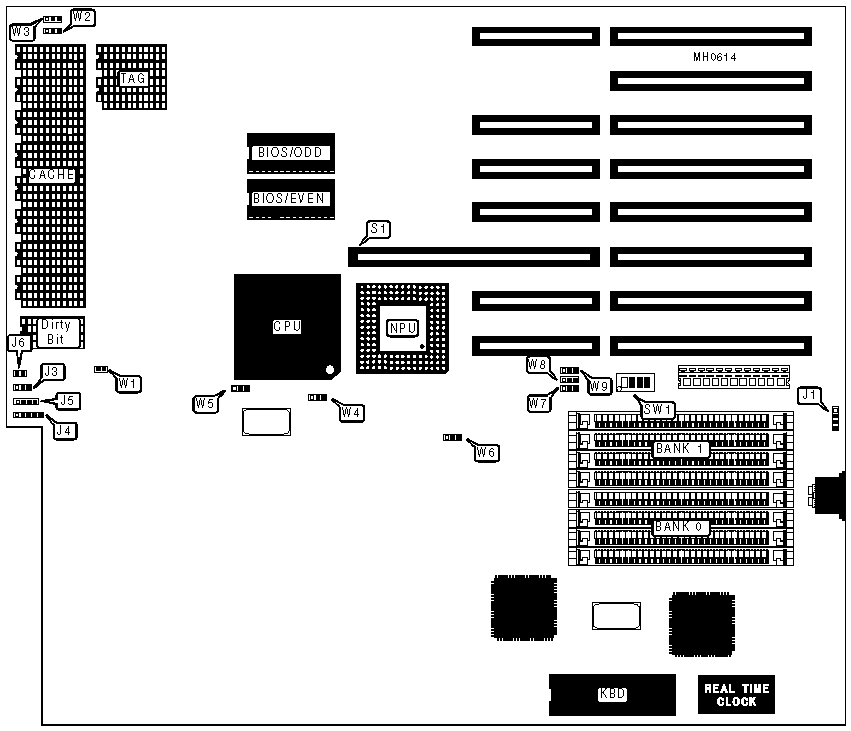

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Speaker	J5
Keylock	J3	Reset switch	J6
Power LED	J4	32-bit external memory card	S1

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	W1	N/A
»	Factory configured - do not alter	W4	pins 1 & 2 closed
»	Factory configured - do not alter	W5	pins 2 & 3 closed
»	CPU speed switchable from keyboard	W6	pins 2 & 3 closed
	CPU speed select slow	W6	pins 1 & 2 closed
	CPU speed select fast	W6	Open
»	Monitor type select monochrome	W7	Closed
	Monitor type select color	W7	Open
»	Factory configured - do not alter	W8	pins 1 & 2 closed
»	Factory configured - do not alter	W9	pins 1 & 2 closed
Note:Hyundai warns that W6 should not be altered from the factory setting of pins 2 & 3 closed.

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
4MB	(4) 1M x 9	NONE	NONE	NONE
8MB	(4) 1M x 9	(4) 1M x 9	NONE	NONE
12MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	NONE
16MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9
Note:Banks 2 & 3 are used when a proprietary external memory card is installed.

DRAM SWITCH CONFIGURATION
Size	SW1/1	SW1/2	SW1/3	SW1/4
4MB	On	On	On	On
8MB	Off	On	On	Off
12MB	Off	On	Off	On
16MB	Off	On	Off	Off

CACHE CONFIGURATION
Size	Bank 0	TAG	Dirty Bit
64KB	(8) 16K x 4	(2) 16K x 4	(1) 16K x 1
256KB	(8) 64K x 4	(2) 64K x 4	(1) 64K x 1

CACHE JUMPER CONFIGURATION
Size	W2	W3
64KB	pins 1 & 2 closed	pins 1 & 2 closed
256KB	pins 2 & 3 closed	pins 2 & 3 closed
