Processor

80286

Processor Speed

10MHz

Chip Set

VLSI

Max. Onboard DRAM

1MB

Cache

None

BIOS

Award/Intek

Dimensions

355mm x 304mm

I/O Options

None

NPU Options

80287

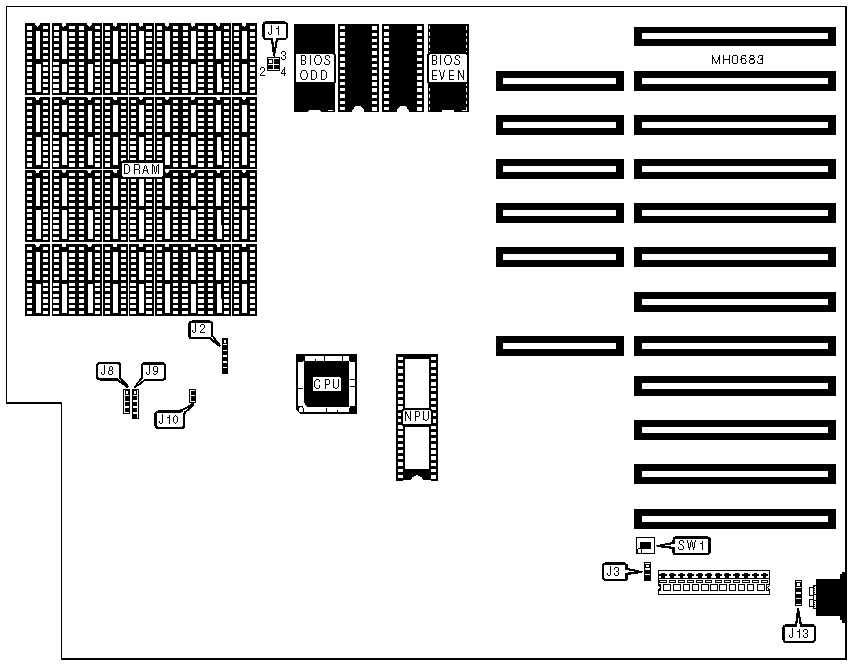

CONNECTIONS

Purpose

Location

Purpose

Location

Speaker

J8

Reset switch

J10

Power LED & keylock

J9

External battery

J13

USER CONFIGURABLE SETTINGS

Function

Jumper/Switch

Position

»

BIOS type select 2764 or 27128

J1

Open

BIOS type select 27256

J1

pins 1 & 2, 3 & 4 closed

»

CPU speed switchable from keyboard

J3

pins 1 & 2 closed

CPU speed select fast (10MHz)

J3

pins 2 & 3 closed

CPU speed select slow (8MHz)

J3

Open

»

Monitor type select monochrome

SW1

Off

Monitor type select color

SW1

On

DRAM CONFIGURATION

Size

Bank 0

1MB

(36) 41256

DRAM JUMPER CONFIGURATION

Base memory

Extended memory

J2

512KB

0KB

pins 2 & 3 closed

640KB

0KB

pins 5 & 6 closed

512KB

512KB

pins 4 & 5 closed

640KB

384KB

pins 1 & 2 closed

Notes: All main boards come with 1MBstandard and can not be altered, configurations are provided for compatibility with older software.
