Processor	80286
Processor Speed	12MHz
Chip Set	C & T
Max. Onboard DRAM	4MB (on CPU/NPU card)
Cache	None
BIOS	Award
Dimensions	350mm x 304mm
I/O Options	Floppy drive interface, parallel port, proprietary CPU/NPU card serial port
NPU Options	80287 (on CPU/NPU card)

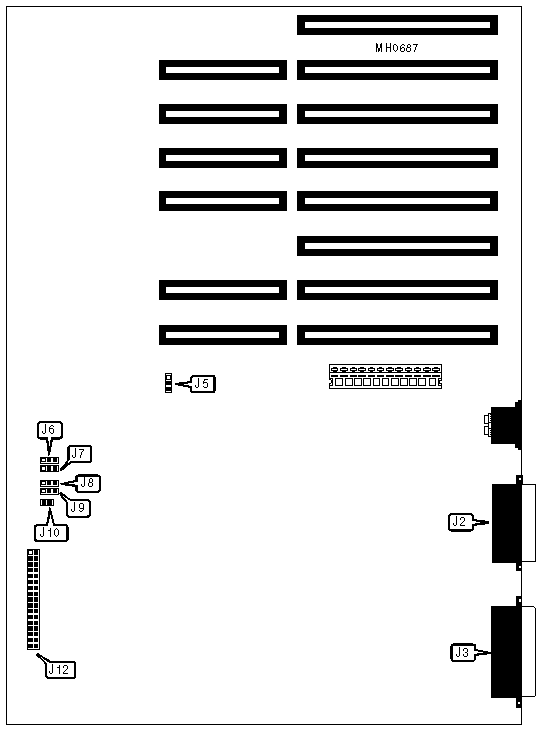

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port	J2	Keyboard & power good signal	J5
Parallel port	J3	Floppy drive interface	J12
Note:Jumper J5 connects to jumper J5 on the CPU card.

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Serial port select COM1	J6 & J7	pins 1 & 2 closed
	Serial port select COM2	J6 & J7	pins 2 & 3 closed
	Serial port disabled	J6 & J7	Open
»	Parallel port select LPT1	J8 & J9	pins 1 & 2 closed
	Parallel port select LPT2	J8 & J9	pins 2 & 3 closed
	Parallel port disabled	J8 & J9	Open
»	Floppy drive interface enabled	J10	Closed
	Floppy drive interface enabled	J10	Open

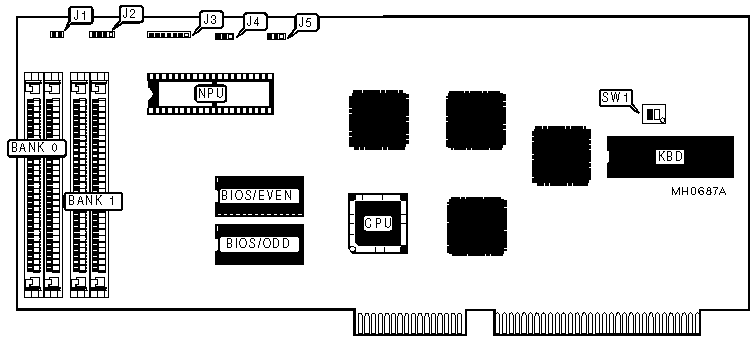

CONNECTIONS (CPU CARD)
Purpose	Location	Purpose	Location
Speaker	J1	Keylock	J3 pins 4 & 5
External battery	J2	Reset switch	J3 pins 6 & 7
Turbo LED	J3 pins 1 - 3	Keyboard & power good signal	J5

USER CONFIGURABLE SETTINGS (CPU CARD)
Function		Jumper	Position
»	Monitor type select color	J4	pins 2 & 3 closed
	Monitor type select monochrome	J4	pins 1 & 2 closed

DRAM CONFIGURATION (CPU CARD)
Size	Bank 0	Bank 1
640KB	(2) 256K x 9	(2) 64K x 9
1MB	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9

DRAM SWITCH CONFIGURATION (CPU CARD)
Size	SW1/1	SW1/2
640KB	Off	On
1MB	Off	Off
2MB	On	On
4MB	On	On
