EMPAC INTERNATIONAL
ERI MagnumCache386
|
Processor |
80386DX |
|
Processor Speed |
40MHz |
|
Chip Set |
C & T/OPTI |
|
Max. Onboard DRAM |
64MB |
|
Cache |
64/256/1024KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 221mm |
|
I/O Options |
None |
|
NPU Options |
80387/3167 |
|

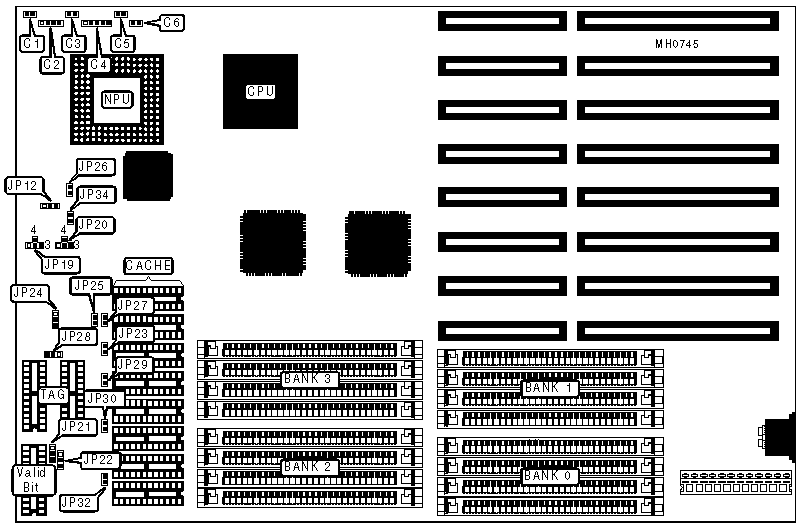

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Reset switch |
C1 |
Power LED & keylock |
C4 |
|
Speaker |
C2 |
Turbo switch |
C6 |
|
Turbo LED |
C3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Monitor type select color |
C5 |
Closed |
|
Monitor type select monochrome |
C5 |
Open | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
3MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
|
4MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
9MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
NONE |
|
10MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
18MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 4M x 9 |
NONE |
|
24MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
34MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
40MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||||
|
Size |
Cacheable DRAM |
Bank 0 |
TAG |
Valid-Bit |
|
64KB |
4MB |
(8) 64K x 1 |
(1) 64K x 1 |
NONE |
|
64KB |
8MB |
(8) 64K x 1 |
(1) 64K x 1 |
(1) 16K x 1 |
|
256KB |
32MB |
(8) 64K x 4 |
(1) 64K x 4 |
NONE |
|
256KB |
64MB |
(8) 64K x 4 |
(1) 64K x 4 |
(1) 64K x 1 |
|
1MB |
64MB |
(8) 256K x 4 |
(1) 256K x 4 |
NONE |
|
1MB |
64MB |
(8) 256K x 4 |
(1) 256K x 4 |
(1) 256K x 1 |
|
CACHE JUMPER CONFIGURATION | |||||||
|
Size |
JP12 |
JP19 |
JP20 |
JP21 |
JP22 |
JP23 |
JP24 |
|
64KB |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
1 & 2 |
Open |
1 & 2 |
|
64KB |
1 & 2 |
1 & 2 |
1 & 2 |
Open |
1 & 2 |
Open |
1 & 2 |
|
256KB |
2 & 3 |
2 & 4 |
2 & 4 |
1 & 2 |
2 & 3 |
Closed |
2 & 3 |
|
256KB |
2 & 3 |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
Closed |
2 & 3 |
|
1MB |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
Open |
1 & 2 |
|
1MB |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
Open |
1 & 2 |
|
Note:Pins designated should be in the closed position. | |||||||
|
CACHE JUMPER CONFIGURATION (CON’T) | ||||||||
|
Size |
JP25 |
JP26 |
JP27 |
JP28 |
JP29 |
JP30 |
JP32 |
JP34 |
|
64KB |
Open |
Open |
Closed |
1 & 2 |
Closed |
Closed |
Closed |
Open |
|
64KB |
Open |
Closed |
Closed |
1 & 2 |
Closed |
Closed |
Closed |
Closed |
|
256KB |
Closed |
Open |
Open |
2 & 3 |
Open |
Open |
Open |
Open |
|
256KB |
Closed |
Closed |
Open |
2 & 3 |
Open |
Open |
Open |
Closed |
|
1MB |
Closed |
Open |
Open |
2 & 3 |
Open |
Open |
Open |
Open |
|
1MB |
Closed |
Closed |
Open |
2 & 3 |
Open |
Open |
Open |
Closed |
|
Note:Pins designated should be in the closed position. | ||||||||
