Processor	80386SX
Processor Speed	20/25MHz
Chip Set	HP
Max. Onboard DRAM	16MB
Cache	None
BIOS	HP
Dimensions	330mm x 218mm
I/O Options	IDE interface, VGA port
NPU Options	80387SX

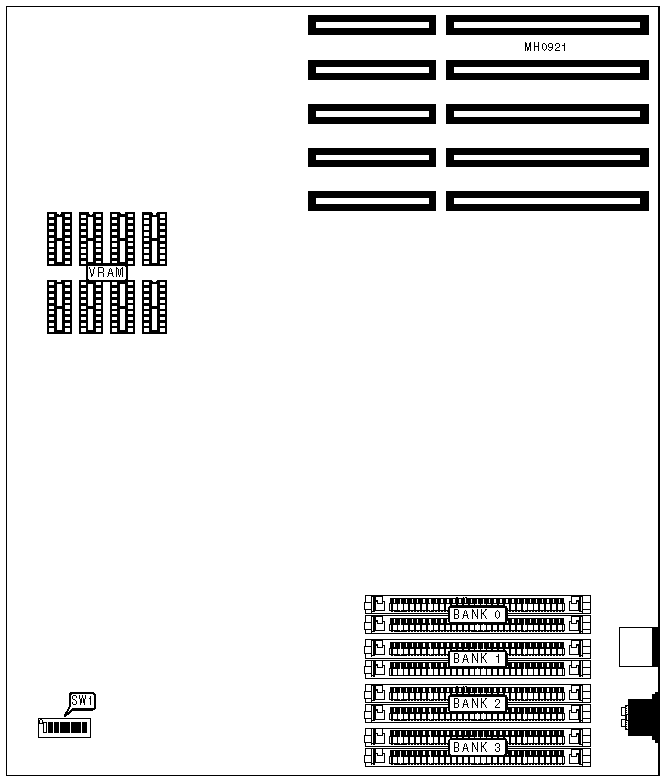

USER CONFIGURABLE SETTINGS
Function		Switch	Position
»	IRQ12 select mouse port	SW1/1	Off
	IRQ12 disabled	SW1/1	On
»	IRQ9 disabled	SW1/2	Off
	IRQ9 select VGA port	SW1/2	On
»	VGA port enabled	SW1/3	Off
	VGA port disabled	SW1/3	On
»	Password check enabled	SW1/4	Off
	Password check disabled (password clear)	SW1/4	On
»	CMOS memory normal operation	SW1/5	Off
	CMOS memory clear	SW1/5	On
»	Security mode disabled (CMOS setup may be changed)	SW1/6	Off
	Security mode enabled (CMOS setup may not be changed)	SW1/6	On
»	Factory configured - do not alter	SW1/7	Off
»	Factory configured - do not alter	SW1/8	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
2MB	(2) 1M x 9	NONE	NONE	NONE
4MB	(2) 1M x 9	(2) 1M x 9	NONE	NONE
6MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	NONE
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
10MB	(2) 1M x 9	(2) 4M x 9	NONE	NONE
12MB	(2) 1M x 9	(2) 1M x 9	(2) 4M x 9	NONE
14MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 4M x 9
16MB	(2) 4M x 9	(2) 4M x 9	NONE	NONE

VIDEO MEMORY CONFIGURATION
Size	Bank 0
256KB	NONE
512KB	(8) 4832
