Processor	80386SX
Processor Speed	20MHz
Chip Set	WD
Max. Onboard DRAM	14MB
Cache	32KB
BIOS	Epson/Seiko
Dimensions	3O4mm x 272mm
I/O Options	Parallel port, serial port, floppy drive interface, IDE interface, bus mouse port, VGA port
NPU Options	80387SX

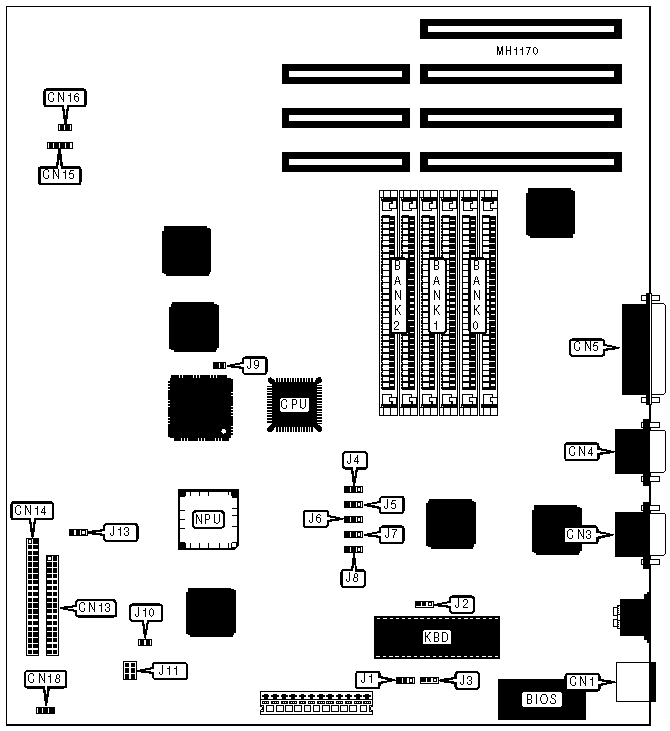

CONNECTIONS
Purpose	Location	Purpose	Location
Mouse port	CN1	Floppy drive interface	CN13
VGA port	CN3	IDE interface	CN14
Serial port (COM1)	CN4	Turbo/IDE interface LED	CN15
Parallel port	CN5	Speaker	CN16

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	J1	pins 1 & 2 closed
	Monitor type select monochrome	J1	pins 2 & 3 closed
»	Onboard VGA interface enabled	J2	pins 1 & 2 closed
	Onboard VGA interface disabled	J2	pins 2 & 3 closed
»	Password enabled	J3	pins 1 & 2 closed
	Password disabled	J3	pins 2 & 3 closed
»	Factory configured - do not alter	J4	pins 1 & 2 closed
»	Factory configured - do not alter	J5	pins 2 & 3 closed
»	Factory configured - do not alter	J6	pins 1 & 2 closed
»	Factory configured - do not alter	J7	pins 2 & 3 closed
»	Factory configured - do not alter	J8	pins 1 & 2 closed
»	Factory configured - do not alter	J9	pins 2 & 3 closed
»	Factory configured - do not alter	J10	pins 2 & 3 closed
»	Factory configured - do not alter	J13	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
2MB	NONE	NONE	NONE
2.5MB	(2) 256K x 9	NONE	NONE
3MB	(2) 256K x 9	(2) 256K x 9	NONE
3.5MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
4MB	(2) 1M x 9	NONE	NONE
4.5MB	(2) 256K x 9	(2) 1M x 9	NONE
5MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9
6MB	(2) 1M x 9	(2) 1M x 9	NONE
6.5MB	(2) 256K x 9	(2) 1M x 9	(2) 1M x 9
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
8.5MB	(2) 256K x 9	(2) 4M x 9	NONE
10MB	(2) 4M x 9	NONE	NONE
11MB	(2) 256K x 9	(2) 256K x 9	(2) 4M x 9
12MB	(2) 1M x 9	(2) 4M x 9	NONE
12MB	(2) 4M x 9	(2) 1M x 9	NONE
14MB	(2) 1M x 9	(2) 1M x 9	(2) 4M x 9
14MB	(2) 4M x 9	(2) 1M x 9	(2) 1M x 9
Note:Board is supplied with 2MB factory installed.
