Processor	Pentium
Processor Speed	60/66MHz
Chip Set	SIS
Max. Onboard DRAM	128MB
Cache	256/512/1024KB
BIOS	Award
Dimensions	330mm x 218mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, serial ports (2)
NPU Options	None

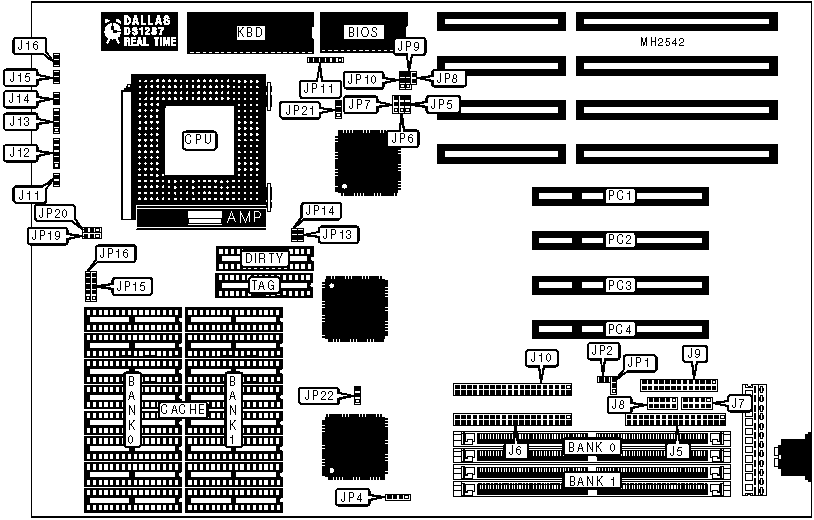

CONNECTIONS
Purpose	Location	Purpose	Location
Floppy drive interface	J5	Power LED & keylock	J12
IDE interface (primary)	J6	Speaker	J13
Serial port 1	J7	Reset switch	J14
Serial port 2	J8	Turbo LED	J15
Parallel port	J9	Turbo switch	J16
IDE interface (secondary)	J10	32-bit PCI slots	PC1 - PC4
IDE interface LED	J11

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	On board multi I/O enabled	JP1	pins 1 & 2 closed
	On board multi I/O disabled	JP1	pins 2 & 3 closed
»	IDE interface enabled	JP2	Open
	IDE interface disabled	JP2	Closed
»	Parallel port mode select normal	JP8	Open
	Parallel port mode select ECP	JP8	Closed
»	BIOS type select EPROM	JP11	pins 2 & 3, 4 & 5 closed
	BIOS type select flash	JP11	pins 1 & 2, 5 & 6 closed
»	Parallel port IRQ select IRQ7	JP21	pins 1 & 2 closed
	Parallel port IRQ select IRQ5	JP21	pins 2 & 3 closed
»	Parity check enabled	JP22	pins 1 & 2 closed
	Parity check disabled	JP22	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(2) 256K x 36	NONE
4MB	(2) 256K x 36	(2) 256K x 36
4MB	(2) 512K x 36	NONE
8MB	(2) 512K x 36	(2) 512K x 36
8MB	(2) 1M x 36	NONE
16MB	(2) 1M x 36	(2) 1M x 36
16MB	(2) 2M x 36	NONE
20MB	(2) 256K x 36	(2) 2M x 36
32MB	(2) 2M x 36	(2) 2M x 36
32MB	(2) 4M x 36	NONE
36MB	(2) 512K x 36	(2) 4M x 36
40MB	(2) 1M x 36	(2) 4M x 36
48MB	(2) 2M x 36	(2) 4M x 36
64MB	(2) 4M x 36	(2) 4M x 36
64MB	(2) 8M x 36	NONE
80MB	(2) 2M x 36	(2) 8M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	NONE

DRAM JUMPER CONFIGURATION
Size	JP4
2MB	pins 2 & 3 closed
4MB	pins 2 & 3 closed
4MB	pins 1 & 2, 3 & 4 closed
8MB	pins 1 & 2, 3 & 4 closed
8MB	pins 2 & 3 closed
16MB	pins 2 & 3 closed
16MB	pins 1 & 2, 3 & 4 closed
20MB	pins 1 & 2, 3 & 4 closed

DRAM JUMPER CONFIGURATION (CON’T)
Size	JP4
32MB	pins 1 & 2, 3 & 4 closed
32MB	pins 2 & 3 closed
36MB	pins 1 & 2, 3 & 4 closed
40MB	pins 2 & 3 closed
48MB	pins 1 & 2, 3 & 4 closed
64MB	pins 2 & 3 closed
64MB	pins 1 & 2, 3 & 4 closed
80MB	pins 1 & 2, 3 & 4 closed
128MB	pins 1 & 2, 3 & 4 closed
128MB	pins 2 & 3 closed

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG	DIRTY
256KB	(8) 32K x 8	NONE	(1) 8K x 8	(1) 8K x 8
512KB	(8) 32K x 8	(8) 32K x 8	(1) 32K x 8	(1) 32K x 8
512KB	(8) 64K x 8	NONE	(1) 32K x 8	(1) 32K x 8
1MB	(8) 64K x 8	(8) 64K x 8	(1) 32K x 8	(1) 32K x 8
1MB	(8) 128K x 8	NONE	(1) 32K x 8	(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP13	JP14	JP15	JP16
256KB	Open	Open	Open	1 & 2, 3 & 4
512KB	Open	Closed	Open	2 & 3, 4 & 5
512KB	Open	Closed	1 & 2	1 & 2, 3 & 4
1MB	Closed	Closed	2 & 3	2 & 3, 4 & 5
1MB	Closed	Closed	1 & 2, 3 & 4	1 & 2, 3 & 4
Note: Pins designated should be in the closed position.

CPU SPEED CONFIGURATION
Speed	JP5	JP6	JP7
60MHz	pins 1 & 2 closed	pins 2 & 3 closed	pins 1 & 2 closed
66MHz	pins 2 & 3 closed	pins 1 & 2 closed	pins 2 & 3 closed

CPU SIGNAL CONFIGURATION
Setting	JP19	JP20
Write back	pins 1 & 2 closed	N/A
Write through	pins 2 & 3 closed	N/A
Always invalidated	N/A	pins 1 & 2 closed
Write to invalidated	N/A	pins 2 & 3 closed

DMA CONFIGURATION
DRQ/DACK	JP9	JP10
DRQ1/DACK1	pins 2 & 3 closed	pins 1 & 2 closed
DRQ3/DACK3	pins 1 & 2 closed	pins 2 & 3 closed
