EDOM INTERNATIONAL CORPORATION
486PIG (MP046)
|
Processor |
SL80486SX/CX486DX/AM486DX/AM486DXL/AM486DXL PLUS/SL80486DX/ 80486DX/CX486DX2/AM486DX2/CX486DX2V/SL80486DX2/80486DX2/ AM486DX4/80486DX4/P24D/Pentium Overdrive |
|
Processor Speed |
25/33/40/50(internal)/50/66(internal)/75(internal)/100(internal)MHz |
|
Chip Set |
SIS |
|
Max. Onboard DRAM |
256MB |
|
Cache |
128/256/512/1024KB |
|
BIOS |
Award |
|
Dimensions |
230mm x 220mm |
|
I/O Options |
32-bit PCI slots (3), IDE interfaces (2) |
|
NPU Options |
None |
|

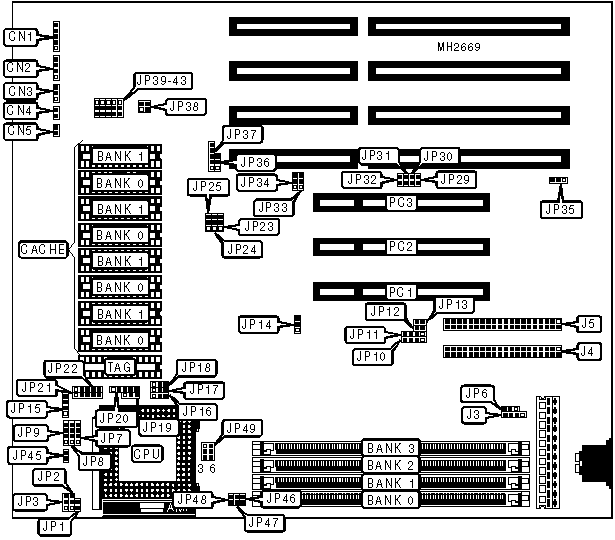

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
CN1 |
IDE interface (primary) |
J4 |
|
Speaker |
CN2 |
IDE interface (secondary) |
J5 |
|
Turbo switch |
CN3 |
IDE interface LED |
JP10 |
|
Reset switch |
CN4 |
IDE interface LED |
JP11 |
|
Turbo LED |
CN5 |
32-bit PCI slots |
PC1 - PC3 |
|
External battery |
J3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CPU type select all CPU types |
JP1 |
Open |
|
CPU type select CX486S2 only |
JP1 |
Closed | |
|
» |
On board IDE 1 IRQ 14 enabled |
JP12 |
Closed |
|
On board IDE 1 IRQ 14 disabled |
JP12 |
Open | |
|
» |
On board IDE 2 IRQ 15 enabled |
JP13 |
Closed |
|
On board IDE 2 IRQ 15 disabled |
JP13 |
Open | |
|
» |
Cache RAS supported |
JP14 |
pins 2 & 3 closed |
|
Cache RAS not supported |
JP14 |
pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
JP29 |
Open |
|
» |
PCI synchronous with CPU |
JP33 |
pins 1 & 2 closed |
|
PCI asynchronous with CPU |
JP33 |
pins 2 & 3 closed | |
|
» |
ACLK delay for CPUCLK |
JP34 |
pins 2 & 3 closed |
|
ACLK & CPUCLK same phase |
JP34 |
pins 1 & 2 closed | |
|
» |
Factory configured - do not alter |
JP38 |
Open |
|
» |
Factory configured - do not alter |
JP39 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP40 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
JP41 |
Open |
|
» |
Factory configured - do not alter |
JP42 |
Open |
|
» |
Factory configured - do not alter |
JP43 |
pins 2 & 3 closed |
|
» |
CPU type select any CPU |
JP45 |
Open |
|
CPU type select CX486M9 2x only |
JP45 |
Closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(1) 256K x 36 |
NONE |
NONE |
NONE |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
2MB |
(1) 512K x 36 |
NONE |
NONE |
NONE |
|
3MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
4MB |
(1) 1M x 36 |
NONE |
NONE |
NONE |
|
5MB |
(1) 1M x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
6MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
|
6MB |
(1) 1M x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
6MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
|
7MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
|
8MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
8MB |
(1) 2M x 36 |
NONE |
NONE |
NONE |
|
10MB |
(1) 1M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
12MB |
(1) 1M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
12MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 4M x 36 |
NONE |
NONE |
NONE |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
17MB |
(1) 4M x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
18MB |
(1) 4M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
|
18MB |
(1) 4M x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
19MB |
(1) 4M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
20MB |
(1) 1M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
|
20MB |
(1) 1M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
20MB |
(1) 4M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
|
20MB |
(1) 4M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
22MB |
(1) 4M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
24MB |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
24MB |
(1) 4M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
24MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
|
28MB |
(1) 1M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
28MB |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
|
32MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
32MB |
(1) 8M x 36 |
NONE |
NONE |
NONE |
|
36MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
36MB |
(1) 1M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
40MB |
(1) 4M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
48MB |
(1) 4M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
48MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
52MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
64MB |
(1) 16M x 36 |
NONE |
NONE |
NONE |
|
65MB |
(1) 16M x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
66MB |
(1) 16M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
|
66MB |
(1) 16M x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
67MB |
(1) 16M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
68MB |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
68MB |
(1) 1M x 36 |
(1) 16M x 36 |
NONE |
NONE |
|
68MB |
(1) 16M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
|
68MB |
(1) 16M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
70MB |
(1) 16M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
72MB |
(1) 16M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
|
72MB |
(1) 16M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
76MB |
(1) 16M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
80MB |
(1) 4M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
80MB |
(1) 4M x 36 |
(1) 16M x 36 |
NONE |
NONE |
|
80MB |
(1) 16M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
|
80MB |
(1) 16M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
88MB |
(1) 16M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
96MB |
(1) 16M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
|
96MB |
(1) 16M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
96MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
100MB |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
112MB |
(1) 4M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
112MB |
(1) 16M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
128MB |
(1) 16M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
|
128MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
128MB |
(1) 16M x 36 |
(1) 16M x 36 |
NONE |
NONE |
|
132MB |
(1) 1M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
NONE |
|
144MB |
(1) 4M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
NONE |
|
160MB |
(1) 16M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
192MB |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
NONE |
|
208MB |
(1) 4M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
208MB |
(1) 16M x 36 |
(1) 4M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
256MB |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
256KB |
(4) 64K x 8 |
NONE |
(1) 32K x 8 |
|
512KB |
(4) 128K x 8 |
NONE |
(1) 32K x 8 |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 32K x 8 |
|
1MB |
(4) 128K x 8 |
(4) 128K x 8 |
(1) 64K x 8 |
|
CACHE JUMPER CONFIGURATION | |||||
|
Size |
JP23 |
JP24 |
JP25 |
JP36 |
JP37 |
|
128KB |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2, 3 & 4 |
|
256KB |
2 & 3 |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3, 4 & 5 |
|
256KB |
2 & 3 |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2, 3 & 4 |
|
512KB |
2 & 3 |
2 & 3 |
1 & 2 |
1 & 2 |
1 & 2, 3 & 4 |
|
512KB |
2 & 3 |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3, 4 & 5 |
|
1MB |
2 & 3 |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3, 4 & 5 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU TYPE CONFIGURATION | ||||
|
Type |
JP2 |
JP3 |
JP7 |
JP8 |
|
SL80486SX |
Open |
Open |
3 & 4 |
Open |
|
CX486DX |
Open |
Open |
2 & 3 |
2 & 3 |
|
AM486DX |
Open |
Open |
Open |
3 & 4 |
|
AM486DXL |
Open |
Open |
Open |
3 & 4 |
|
AM486DXL PLUS |
Open |
Open |
3 & 4 |
Open |
|
SL80486DX |
Open |
Open |
3 & 4 |
Open |
|
80486DX |
Open |
Open |
Open |
Open |
|
CX486DX2 |
Open |
Open |
2 & 3 |
2 & 3 |
|
AM486DX2 |
2 & 3 |
Open |
Open |
Open |
|
CX486DX2V |
Open |
Open |
2 & 3 |
2 & 3 |
|
80486DX2 |
Open |
Open |
Open |
Open |
|
SL80486DX2 |
Open |
Open |
3 & 4 |
Open |
|
AM486DX4 |
1 & 2 |
Open |
Open |
Open |
|
80486DX4 |
Open |
Open |
3 & 4 |
Open |
|
P24D |
1 & 2 |
Open |
1 & 2, 3 & 4 |
Open |
|
Pentium Overdrive |
Open |
1 & 2 |
3 & 4 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE CONFIGURATION (CON’T) | ||||
|
Type |
JP9 |
JP15 |
JP16 |
JP17 |
|
SL80486SX |
2 & 3 |
Open |
2 & 3 |
Open |
|
CX486DX |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
2 & 3 |
|
AM486DX |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
2 & 3 |
Open |
|
AM486DXL |
1 & 2, 3 & 4 |
1 & 2, 3 & 4 |
2 & 3 |
Open |
|
AM486DXL PLUS |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
Open |
|
SL80486DX |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
Open |
|
80486DX |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
Open |
|
CX486DX2 |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
2 & 3 |
|
AM486DX2 |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
Open |
|
CX486DX2V |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
2 & 3 |
|
80486DX2 |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
Open |
|
SL80486DX2 |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
Open |
|
AM486DX4 |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
Open |
|
80486DX4 |
1 & 2, 3 & 4 |
3 & 4 |
2 & 3 |
Open |
|
P24D |
1 & 2, 3 & 4 |
3 & 4 |
1 & 2 |
1 & 2 |
|
Pentium Overdrive |
1 & 2, 3 & 4 |
2 & 3 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU TYPE CONFIGURATION (CON’T) | ||||
|
Type |
JP18 |
JP19 |
JP20 |
JP21 |
|
SL80486SX |
pins 1 & 2 closed |
Open |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
CX486DX |
pins 1 & 2 closed |
Open |
pins 1 & 2 closed |
Open |
|
AM486DX |
pins 2 & 3 closed |
Open |
pins 4 & 5 closed |
Open |
|
AM486DXL |
pins 2 & 3 closed |
Open |
pins 4 & 5 closed |
Open |
|
AM486DXL PLUS |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 4 & 5 closed |
|
SL80486DX |
pins 1 & 2 closed |
Open |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
80486DX |
Open |
Open |
Open |
Open |
|
CX486DX2 |
pins 1 & 2 closed |
Open |
pins 1 & 2 closed |
Open |
|
AM486DX2 |
Open |
Open |
Open |
Open |
|
CX486DX2V |
pins 1 & 2 closed |
Open |
pins 1 & 2 closed |
Open |
|
80486DX2 |
Open |
Open |
Open |
Open |
|
SL80486DX2 |
pins 1 & 2 closed |
Open |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
AM486DX4 |
Open |
Open |
Open |
Open |
|
80486DX4 |
pins 1 & 2 closed |
Open |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
P24D |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
Pentium Overdrive |
pins 1 & 2 closed |
Open |
pins 2 & 3 closed |
Open |
|
CPU TYPE CONFIGURATION (CON’T) | ||||
|
Type |
JP22 |
JP46 |
JP47 |
JP48 |
|
SL80486SX |
pins 4 & 5 closed |
Open |
Open |
Open |
|
CX486DX |
pins 2 & 3 closed |
Open |
Open |
Open |
|
AM486DX |
Open |
Open |
Open |
Open |
|
AM486DXL |
Open |
Open |
Open |
Open |
|
AM486DXL PLUS |
pins 4 & 5 closed |
Open |
Open |
Open |
|
SL80486DX |
pins 4 & 5 closed |
Open |
Open |
Open |
|
80486DX |
Open |
Open |
Open |
Open |
|
CX486DX2 |
pins 2 & 3 closed |
Open |
Open |
Open |
|
AM486DX2 |
Open |
Open |
Closed |
Open |
|
CX486DX2V |
pins 2 & 3 closed |
Open |
Open |
Closed |
|
80486DX2 |
Open |
Open |
Open |
Open |
|
SL80486DX2 |
pins 4 & 5 closed |
Open |
Open |
Open |
|
AM486DX4 |
Open |
Open |
Closed |
Open |
|
80486DX4 |
pins 4 & 5 closed |
Closed |
Open |
Open |
|
P24D |
pins 4 & 5 closed |
Open |
Open |
Open |
|
Pentium Overdrive |
pins 1 & 2 closed |
Open |
Open |
Open |
|
CPU SPEED CONFIGURATION | |||
|
Speed |
JP30 |
JP31 |
JP32 |
|
25MHz |
Open |
Open |
Open |
|
33MHz |
Open |
Closed |
Closed |
|
40MHz |
Open |
Open |
Closed |
|
50iMHz |
Open |
Open |
Open |
|
50MHz |
Open |
Closed |
Open |
|
66iMHz |
Open |
Closed |
Closed |
|
75iMHz |
Open |
Open |
Open |
|
100iMHz |
Open |
Closed |
Closed |
|
CPU VOLTAGE CONFIGURATION | |
|
Voltage |
JP49 |
|
3v |
pins 1 & 2, 4 & 5 closed |
|
4v |
pins 2 & 3, 5 & 6 closed |
|
CMOS CONFIGURATION | ||
|
Setting |
JP6 |
JP35 |
|
CMOS memory normal operation |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
CMOS memory clear |
pins 2 & 3 closed |
pins 2 & 3 closed |
