Processor	80386
Processor Speed	25/33MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	32MB
Maximum Video Memory	None
Cache	128/256KB
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	External memory card, floppy drive interface, IDE interface, parallel port, serial ports (2)
NPU Options	80387/3167

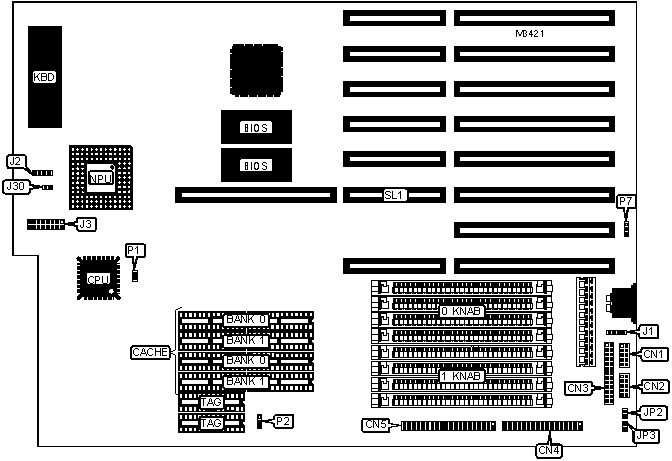

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 2	CN1	External battery	J1
Serial port 1	CN2	Speaker	J2
Parallel port	CN3	Front panel connector	J3
Floppy drive interface	CN4	IDE interface LED	J30
IDE interface	CN5	External memory card	SL1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	P1	Open
»	Factory configured - do not alter	P7	Pins 2 & 3 closed
»	Factory configured - do not alter	JP2	Open
»	Factory configured - do not alter	JP3	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	None
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	None
5MB	(4) 256K x 9	(4) 1M x 9
5MB	(4) 1M x 9	(4) 256K x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	None
17MB	(4) 256K x 9	(4) 4M x 9
17MB	(4) 4M x 9	(4) 256K x 9
20MB	(4) 1M x 9	(4) 4M x 9
20MB	(4) 4M x 9	(4) 1M x 9
32MB	(4) 4M x 9	(4) 4M x 9
Note: To increase memory, install an EV-18107B memory board at SL1.

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG 0/1
128KB	(4) 32K x 8	None	Unidentified
256KB	(4) 32K x 8	(4) 32K x 8	Unidentified
Note: The size and location of the TAG chip for 128KB is unidentified. The location of the 32K x 8 TAG chip for 256KB is unidentified.

CACHE JUMPER CONFIGURATION
Size	P2
128KB	Pins 2 & 3 closed
256KB	Pins 1 & 2 closed
