FIRST INTERNATIONAL COMPUTER, INC.
PT-2003 (REV. A3)
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150/166MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
128MB |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
289mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), VRM connector, cache slot, IR connector, remote control power connector |
|
NPU Options |
None |
|

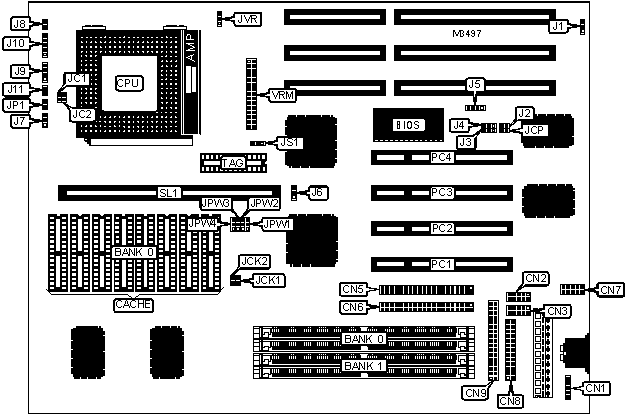

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse interface |
CN1 |
Chassis fan power |
J7 |
|
Serial port 1 |
CN2 |
Green PC connector |
J8 |
|
Serial port 2 |
CN3 |
Speaker |
J9 |
|
IDE interface 1 |
CN5 |
Power LED & keylock |
J10 |
|
IDE interface 2 |
CN6 |
Reset switch |
J11 |
|
IR connector |
CN7 |
IDE interface LED |
JP1 |
|
Parallel port |
CN8 |
32-bit PCI slots |
PC1 - PC4 |
|
Floppy drive interface |
CN9 |
VRM connector |
VRM |
|
Remote control power connector |
J1 |
Cache slot |
SL1 |
|
External battery |
J5 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Password disabled |
JCP |
Open |
|
Password enabled |
JCP |
Closed | |
|
» |
Monitor type select monochrome/EGA/VGA |
J2 |
Open |
|
Monitor type select CGA |
J2 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
TAG |
SL1 |
|
256KB (A) |
(8) 32K x 8 |
(1) 8K x 8 |
Not installed |
|
256KB (B) |
None |
None |
Installed |
|
512KB (A) |
(8) 64K x 8 |
(1) 32K x 8 |
Not installed |
|
512KB (B) |
None |
None |
Installed |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
JS1 |
|
256KB |
Pins 1 & 2 closed |
|
512KB |
Pins 2 & 3 closed |
|
CACHE VOLTAGE CONFIGURATION | ||||
|
Voltage |
JPW1 |
JPW2 |
JPW3 |
JPW4 |
|
Mixed voltage |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
3.3v |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
CPU SPEED SELECTION | |||||||
|
CPU speed |
Clock speed |
Multiplier |
J6 |
JC1 |
JC2 |
JCK1 |
JCK2 |
|
75MHz |
50MHz |
1.5x |
1 & 2 |
Open |
Open |
Closed |
Closed |
|
90MHz |
60MHz |
1.5x |
2 & 3 |
Open |
Open |
Closed |
Open |
|
100MHz |
66MHz |
1.5x |
2 & 3 |
Open |
Open |
Open |
Closed |
|
120MHz |
60MHz |
2x |
2 & 3 |
Closed |
Open |
Closed |
Open |
|
133MHz |
66MHz |
2x |
2 & 3 |
Closed |
Open |
Open |
Closed |
|
150MHz |
60MHz |
2.5x |
2 & 3 |
Closed |
Closed |
Closed |
Open |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
Closed |
Closed |
Open |
Closed |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU VOLTAGE CONFIGURATION | ||
|
Voltage |
JVR | |
| » |
3.38v |
Pins 2 & 3 closed |
|
3.5v |
Pins 1 & 2 closed | |
|
BIOS CONFIGURATION | |||
|
Type |
J3 |
J4 | |
| » |
SST 29EE010 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Intel 28f01bx-t |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
Intel 28F010 |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
