Processor	80286
Processor Speed	12/16MHz
Chip Set	C & T
Video Chip Set	None
Maximum Onboard Memory	4MB
Maximum Video Memory	None
Cache	None
BIOS	AMI
Dimensions	221mm x 221mm
I/O Options	None
NPU Options	80287

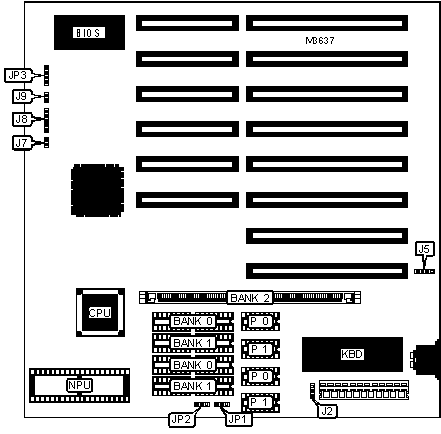

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J5	Turbo LED	J9
Reset switch	J7	Speaker	JP3
Power LED & keylock	J8

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Monitor type select color	J2	Pins 2 & 3 closed
	Monitor type select monochrome	J2	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	P 0	Bank 1	P 1	Bank 2
512KB	(4) 44256	(2) 41256	None	None	None
1MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256	None
1MB	None	None	None	None	(1) 256K x 36
2MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256	(1) 256K x 36
4MB	None	None	None	None	(1) 1M x 36

DRAM JUMPER CONFIGURATION
Type	JP1	JP2
DIP & SIMM memory installed	Pins 2 & 3 closed	Pins 2 & 3 closed
SIMM memory only installed	Pins 1 & 2 closed	Pins 1 & 2 closed
