Processor	Pentium Pro
Processor Speed	150/166/180/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	512MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB (located on Pentium Pro CPU)
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, VRM connector, USB connector, ATX power connector, power on/off switch
NPU Options	None

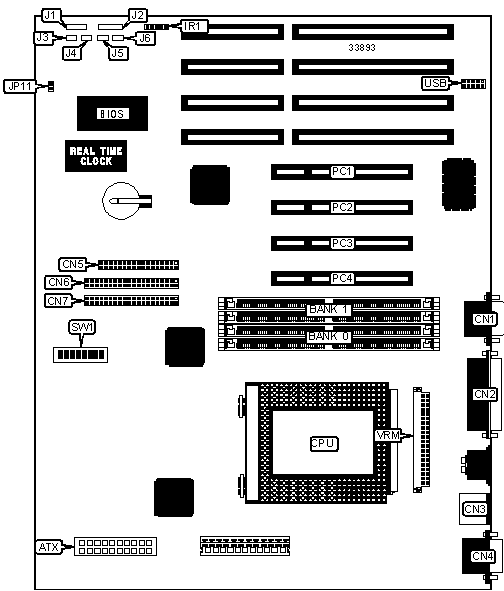

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	IDE interface 1	CN7
Serial port 2	CN1	IR connector	IR1
Parallel port	CN2	Front panel connectors	J1 - J6
PS/2 mouse port	CN3	32-bit PCI slots	PC1 - PC4
Serial port 1	CN4	USB connector	USB
Floppy drive interface	CN5	VRM connector	VRM
IDE interface 2	CN6
Note: The front panel connectors consist of a speaker, power LED & keylock, IDE interface LED, reset switch, turbo LED, green PC connector and power on/off switch. The location of the power on/off switch is unidentified.

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP11	Open
	CMOS memory clear	JP11	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 2M x 36	(2) 4M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 2M x 36	(2) 8M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 16M x 36	None
128MB	(2) 8M x 36	(2) 8M x 36
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 2M x 36	(2) 16M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 8M x 36	(2) 16M x 36
256MB	(2) 32M x 36	None
256MB	(2) 16M x 36	(2) 16M x 36
264MB	(2) 32M x 36	(2) 1M x 36

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
272MB	(2) 2M x 36	(2) 32M x 36
288MB	(2) 32M x 36	(2) 4M x 36
320MB	(2) 8M x 36	(2) 32M x 36
384MB	(2) 32M x 36	(2) 16M x 36
512MB	(2) 32M x 36	(2) 32M x 36
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Banks are interchangeable.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4
150MHz	60MHz	2.5x	Off	On	On	On
166MHz	66MHz	2.5x	Off	On	On	On
180MHz	60MHz	3x	On	Off	On	On
200MHz	66MHz	3x	On	Off	On	On

CPU SPEED SELECTION (CON’T)
CPU speed	Clock speed	Multiplier	SW1/5	SW1/6	SW1/7	SW1/8
150MHz	60MHz	2.5x	On	Off	On	Off
166MHz	66MHz	2.5x	Off	On	Off	On
180MHz	60MHz	3x	On	Off	On	Off
200MHz	66MHz	3x	Off	On	Off	On
