GIGA-BYTE TECHNOLOGY CO., LTD.
GA-586TX
|
Processor |
CX M1/CX M2/IBM M1/IBM M2/AM K5/AM K6/Pentium |
|
Processor Speed |
90/100/120/133/150/166/180/200/233MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
256MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector |
|
NPU Options |
None |
|

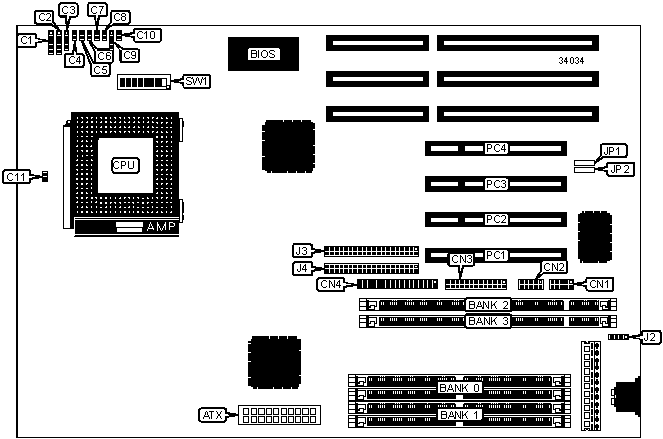

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Chassis fan power |
C11 |
|
IR connector |
C1 |
Serial port 1 |
CN1 |
|
Power LED & keylock |
C2 |
Serial port 2 |
CN2 |
|
Speaker |
C3 |
Parallel port |
CN3 |
|
Turbo LED |
C4 |
Floppy drive interface |
CN4 |
|
Turbo switch |
C5 |
PS/2 mouse interface |
J2 |
|
Reset switch |
C6 |
IDE interface 1 |
J3 |
|
Green PC LED |
C7 |
IDE interface 2 |
J4 |
|
Green PC connector |
C8 |
USB connector |
JP1 |
|
IDE interface LED |
C9 |
USB connector |
JP2 |
|
Soft off power supply |
C10 |
32-bit PCI slots |
PC1 – PC4 |
|
DIMM/DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
8MB |
(2) 1M x 36 |
None |
None |
None |
|
8MB |
None |
None |
(1) 1M x 64 |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
None |
|
16MB |
None |
None |
(1) 2M x 64 |
None |
|
16MB |
None |
None |
(1) 1M x 64 |
(1) 1M x 64 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
None |
|
16MB |
(2) 1M x 36 |
None |
(1) 1M x 64 |
None |
|
24MB |
(2) 1M x 36 |
None |
(1) 2M x 64 |
None |
|
24MB |
(2) 2M x 36 |
None |
(1) 1M x 64 |
None |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
None |
None |
|
24MB |
None |
None |
(1) 1M x 64 |
(1) 2M x 64 |
|
24MB |
(2) 1M x 36 |
None |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
None |
None |
(1) 2M x 64 |
(1) 2M x 64 |
|
32MB |
(2) 1M x 36 |
None |
(1) 1M x 64 |
(1) 2M x 64 |
|
32MB |
(2) 2M x 36 |
None |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(2) 4M x 36 |
None |
None |
None |
|
32MB |
None |
None |
(1) 4M x 64 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
None |
|
32MB |
(2) 2M x 36 |
None |
(1) 2M x 64 |
None |
|
40MB |
(2) 1M x 36 |
None |
(1) 4M x 64 |
None |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
None |
None |
|
40MB |
(2) 1M x 36 |
None |
(1) 2M x 64 |
(1) 2M x 64 |
|
40MB |
(2) 2M x 36 |
None |
(1) 1M x 64 |
(1) 2M x 64 |
|
40MB |
None |
None |
(1) 1M x 64 |
(1) 4M x 64 |
|
40MB |
(2) 4M x 36 |
None |
(1) 1M x 64 |
None |
|
48MB |
None |
None |
(1) 2M x 64 |
(1) 4M x 64 |
|
48MB |
(2) 1M x 36 |
None |
(1) 1M x 64 |
(1) 4M x 64 |
|
48MB |
(2) 2M x 36 |
None |
(1) 2M x 64 |
(1) 2M x 64 |
|
DIMM/DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
48MB |
(2) 4M x 36 |
None |
(1) 1M x 64 |
(1) 1M x 64 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
None |
None |
|
48MB |
(2) 2M x 36 |
None |
(1) 4M x 64 |
None |
|
48MB |
(2) 4M x 36 |
None |
(1) 2M x 64 |
None |
|
56MB |
(2) 1M x 36 |
None |
(1) 2M x 64 |
(1) 4M x 64 |
|
56MB |
(2) 2M x 36 |
None |
(1) 1M x 64 |
(1) 4M x 64 |
|
56MB |
(2) 4M x 36 |
None |
(1) 1M x 64 |
(1) 2M x 64 |
|
64MB |
None |
None |
(1) 4M x 64 |
(1) 4M x 64 |
|
64MB |
(2) 2M x 36 |
None |
(1) 2M x 64 |
(1) 4M x 64 |
|
64MB |
(2) 4M x 36 |
None |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(2) 8M x 36 |
None |
None |
None |
|
64MB |
None |
None |
(1) 8M x 64 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
None |
|
64MB |
(2) 4M x 36 |
None |
(1) 4M x 64 |
None |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
None |
None |
|
72MB |
(2) 8M x 36 |
None |
(1) 1M x 64 |
None |
|
72MB |
(2) 1M x 36 |
None |
(1) 4M x 64 |
(1) 4M x 64 |
|
72MB |
(2) 4M x 36 |
None |
(1) 1M x 64 |
(1) 4M x 64 |
|
72MB |
None |
None |
(1) 1M x 64 |
(1) 8M x 64 |
|
80MB |
None |
None |
(1) 2M x 64 |
(1) 8M x 64 |
|
80MB |
(2) 2M x 36 |
None |
(1) 4M x 64 |
(1) 4M x 64 |
|
80MB |
(2) 4M x 36 |
None |
(1) 2M x 64 |
(1) 4M x 64 |
|
80MB |
(2) 8M x 36 |
None |
(1) 1M x 64 |
(1) 1M x 64 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
None |
None |
|
80MB |
(2) 8M x 36 |
None |
(1) 2M x 64 |
None |
|
88MB |
(2) 8M x 36 |
None |
(1) 1M x 64 |
(1) 2M x 64 |
|
96MB |
None |
None |
(1) 4M x 64 |
(1) 8M x 64 |
|
96MB |
(2) 4M x 36 |
None |
(1) 4M x 64 |
(1) 4M x 64 |
|
96MB |
(2) 8M x 36 |
None |
(1) 2M x 64 |
(1) 2M x 64 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
None |
None |
|
96MB |
(2) 8M x 36 |
None |
(1) 4M x 64 |
None |
|
104MB |
(2) 8M x 36 |
None |
(1) 1M x 64 |
(1) 4M x 64 |
|
112MB |
(2) 8M x 36 |
None |
(1) 2M x 64 |
(1) 4M x 64 |
|
128MB |
(2) 16M x 36 |
None |
None |
None |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
None |
|
128MB |
(2) 8M x 36 |
None |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
None |
None |
(1) 8M x 64 |
(1) 8M x 64 |
|
136MB |
(2) 16M x 36 |
None |
(1) 1M x 64 |
None |
|
136MB |
(2) 1M x 36 |
(2) 16M x 36 |
None |
None |
|
144MB |
(2) 2M x 36 |
(2) 16M x 36 |
None |
None |
|
144MB |
(2) 16M x 36 |
None |
(1) 2M x 64 |
None |
|
144MB |
(2) 16M x 36 |
None |
(1) 1M x 64 |
(1) 1M x 64 |
|
DIMM/DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
152MB |
(2) 16M x 36 |
None |
(1) 1M x 64 |
(1) 2M x 64 |
|
160MB |
(2) 16M x 36 |
None |
(1) 2M x 64 |
(1) 2M x 64 |
|
160MB |
(2) 4M x 36 |
(2) 16M x 36 |
None |
None |
|
160MB |
(2) 16M x 36 |
None |
(1) 4M x 64 |
None |
|
168MB |
(2) 16M x 36 |
None |
(1) 1M x 64 |
(1) 4M x 64 |
|
176MB |
(2) 16M x 36 |
None |
(1) 2M x 64 |
(1) 4M x 64 |
|
192MB |
(2) 16M x 36 |
None |
(1) 4M x 64 |
(1) 4M x 64 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
None |
None |
|
256MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
None |
|
Note: Board accepts EDO memory. | ||||
|
CACHE CONFIGURATION |
|
Note: Board is factory installed with 512KB cache. The location is unidentified. |
|
CPU SPEED SELECTION (CX M1) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/8 |
|
120MHz |
50MHz |
2x |
On |
On |
Off |
Off |
|
133MHz |
55MHz |
2x |
Off |
On |
Off |
Off |
|
150MHz |
60MHz |
2x |
On |
On |
Off |
Off |
|
166MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (IBM M1) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/8 |
|
120MHz |
50MHz |
2x |
On |
On |
Off |
Off |
|
133MHz |
55MHz |
2x |
Off |
On |
Off |
Off |
|
150MHz |
60MHz |
2x |
On |
On |
Off |
Off |
|
166MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
CPU SPEED SELECTION (CX M2) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/8 |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
180MHz |
60MHz |
3x |
On |
Off |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (IBM M2) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/8 |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
180MHz |
60MHz |
3x |
On |
Off |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AM K5) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/8 |
|
133MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
CPU SPEED SELECTION (AM K6) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/8 |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
180MHz |
60MHz |
3x |
On |
Off |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/8 |
|
90MHz |
60MHz |
1.5x |
On |
Off |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
On |
On |
Off |
Off |
|
133MHz |
66MHz |
2x |
Off |
On |
Off |
Off |
|
150MHz |
60MHz |
2.5x |
On |
On |
On |
Off |
|
166MHz |
66MHz |
2.5x |
Off |
On |
On |
Off |
|
180MHz |
60MHz |
3x |
On |
Off |
On |
Off |
|
200MHz |
66MHz |
3x |
Off |
Off |
On |
Off |
|
CPU VOLTAGE SELECTION | ||||
|
Voltage |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
|
Auto |
Off |
Off |
Off |
On |
|
2.0 |
Off |
Off |
Off |
Off |
|
2.1 |
Off |
Off |
On |
Off |
|
2.2 |
Off |
On |
Off |
Off |
|
2.3 |
Off |
On |
On |
Off |
|
2.4 |
On |
Off |
Off |
Off |
|
2.5 |
On |
Off |
On |
Off |
|
2.6 |
On |
On |
Off |
Off |
|
2.7 |
On |
On |
On |
Off |
|
2.8 |
Off |
Off |
Off |
On |
|
2.9 |
Off |
Off |
On |
On |
|
3.0 |
Off |
On |
Off |
On |
|
3.1 |
Off |
On |
On |
On |
|
3.2 |
On |
Off |
Off |
On |
|
3.3 |
On |
Off |
On |
On |
|
3.4 |
On |
On |
Off |
On |
|
3.5 |
On |
On |
On |
On |
