EPSON, INC.
ACTION PC 6000
|
Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
Cirrus Logic |
|
Maximum Onboard Memory |
128MB |
|
Maximum Video Memory |
2MB |
|
Cache |
256/1024KB |
|
BIOS |
Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Floppy drive interface, green PC connector, game interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, riser slot |
|
NPU Options |
None |
|

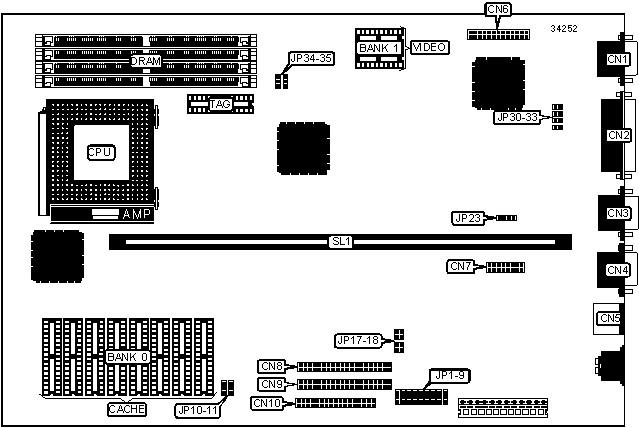

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VGA port |
CN1 |
Game interface |
CN7 |
|
Parallel port |
CN2 |
IDE interface |
CN8 |
|
Serial port 2 |
CN3 |
IDE interface |
CN9 |
|
Serial port 1 |
CN4 |
Floppy drive interface |
CN10 |
|
PS/2 mouse port |
CN5 |
External battery |
JP23 |
|
VGA feature connector |
CN6 |
Riser slot |
SL1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
JP1 |
Unidentified |
|
» |
Factory configured - do not alter |
JP2 |
Unidentified |
|
» |
Factory configured - do not alter |
JP3 |
Unidentified |
|
» |
Floppy drive interface enabled |
JP4 |
Pins 1 & 2 closed |
|
Floppy drive interface disabled |
JP4 |
Pins 2 & 3 closed | |
|
» |
Serial port 1 enabled |
JP5 |
Pins 1 & 2 closed |
|
Serial port 1 disabled |
JP5 |
Pins 2 & 3 closed | |
|
» |
Serial port 1 COM select COM1 |
JP6 |
Pins 1 & 2 closed |
|
Serial port 1 COM select COM3 |
JP6 |
Pins 2 & 3 closed | |
|
» |
Serial port 2 enabled |
JP7 |
Pins 1 & 2 closed |
|
Serial port 2 disabled |
JP7 |
Pins 2 & 3 closed | |
|
» |
Serial port 2 COM select COM2 |
JP8 |
Pins 1 & 2 closed |
|
Serial port 2 COM select COM4 |
JP8 |
Pins 2 & 3 closed | |
|
» |
Game port enabled |
JP9 |
Pins 1 & 2 closed |
|
Game port disabled |
JP9 |
Pins 2 & 3 closed | |
|
» |
IDE interface 1 enabled |
JP10 |
Pins 1 & 2 closed |
|
IDE interface 1 disabled |
JP10 |
Pins 2 & 3 closed | |
|
» |
IDE interface 2 enabled |
JP11 |
Pins 1 & 2 closed |
|
IDE interface 2 disabled |
JP11 |
Pins 2 & 3 closed | |
|
» |
Battery type select internal |
JP23 |
Pins 2 & 3 closed |
|
CMOS memory clear |
JP23 |
Pins 3 & 4 closed | |
|
Battery type select external |
JP23 |
Closed | |
|
» |
VGA IRQ9 disabled |
JP30 |
Open |
|
VGA IRQ9 enabled |
JP30 |
Closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
None |
None |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
None |
None |
|
4MB |
(1) 1M x 36 |
None |
None |
None |
|
6MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
8MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
None |
None |
|
8MB |
(1) 2M x 36 |
None |
None |
None |
|
10MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
12MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
12MB |
(1) 1M x 36 |
(1) 2M x 36 |
None |
None |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
None |
None |
|
16MB |
(1) 4M x 36 |
None |
None |
None |
|
18MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
20MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
20MB |
(1) 1M x 36 |
(1) 4M x 36 |
None |
None |
|
24MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
24MB |
(1) 2M x 36 |
(1) 4M x 36 |
None |
None |
|
32MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
None |
None |
|
32MB |
(1) 8M x 36 |
None |
None |
None |
|
34MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
36MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
36MB |
(1) 1M x 36 |
(1) 8M x 36 |
None |
None |
|
40MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
40MB |
(1) 2M x 36 |
(1) 8M x 36 |
None |
None |
|
48MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
48MB |
(1) 4M x 36 |
(1) 8M x 36 |
None |
None |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
None |
None |
|
66MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
68MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
72MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
80MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
96MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
128MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
Note: The location of the banks is unidentified. | ||||
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
256KB |
(8) 32K x 8 |
Unidentified |
|
1MB |
(8) 128K x 8 |
Unidentified |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JP34 |
JP35 |
|
256KB |
Pins 1 & 2 closed |
Open |
|
1MB |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
1MB |
None |
|
2MB |
1MB |
(2) 256K x 16 |
|
Note: Bank 0 is factory installed and is not configurable. The location is unidentified. | ||
|
DMA CHANNEL SELECTION | |||
|
Channel |
JP17 |
JP18 | |
| » |
1 |
Pins 1 & 2 closed |
Pins 3 & 4 closed |
|
3 |
Pins 3 & 4 closed |
Pins 1 & 2 closed | |
|
ON BOARD VIDEO SELECTION | ||||
|
Setting |
JP31 |
JP32 |
JP33 | |
| » |
Enabled |
Closed |
Closed |
Closed |
|
Disabled |
Open |
Open |
Open | |
