EFA CORPORATION
P5V580-AT
|
Processor |
CX M1/AM K5/Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/200MHz |
|
Chip Set |
VIA |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
512MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
230mm x 220mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2) |
|
NPU Options |
None |
|

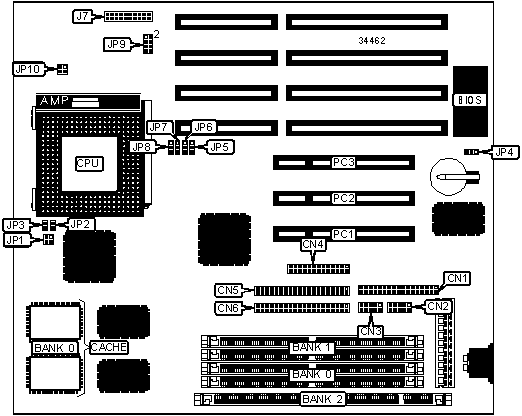

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Floppy drive interface |
CN1 |
Power LED & keylock |
J7/pins 2, 4, 6, 8, 10 |
|
Serial port 1 |
CN2 |
Turbo LED |
J7/pins 11 & 12 |
|
Serial port 2 |
CN3 |
Green PC connector |
J7/pins 13 & 14 |
|
Parallel port |
CN4 |
IDE interface LED |
J7/pins 15 & 16 |
|
IDE interface 2 |
CN5 |
Reset switch |
J7/pins 17 & 18 |
|
IDE interface 1 |
CN6 |
Green PC LED |
J7/pins 19 & 20 |
|
Speaker |
J7/pins 1, 3, 5, 7 |
32-bit PCI slots |
PC1 – PC3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
JP1 |
Unidentified |
|
» |
Factory configured - do not alter (CMOS memory) |
JP4 |
Unidentified |
|
» |
Factory configured - do not alter |
JP5 |
Unidentified |
|
» |
Factory configured - do not alter |
JP9 |
Unidentified |
|
» |
Factory configured - do not alter |
JP10 |
Unidentified |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
256MB |
(2) 32M x 36 |
None |
|
264MB |
(2) 32M x 36 |
(2) 1M x 36 |
|
DRAM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
272MB |
(2) 32M x 36 |
(2) 2M x 36 |
|
288MB |
(2) 32M x 36 |
(2) 4M x 36 |
|
320MB |
(2) 32M x 36 |
(2) 8M x 36 |
|
384MB |
(2) 32M x 36 |
(2) 16M x 36 |
|
512MB |
(2) 32M x 36 |
(2) 32M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Memory installed in Banks 1 & 2 is interchangeable. | ||
|
DIMM CONFIGURATION | |
|
Size |
Bank 2 |
|
8MB |
(1) 1M x 64 |
|
16MB |
(1) 2M x 64 |
|
32MB |
(1) 4M x 64 |
|
64MB |
(1) 8M x 64 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(2) 32K x 32 |
|
512KB |
(2) 64K x 32 |
|
CPU SPEED SELECTION (CYRIX) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP6 |
JP7 |
JP8 |
|
120MHz |
50MHz |
2x |
Open |
Closed |
2 & 3 |
2 & 3 |
2 & 3 |
|
133MHz |
55MHz |
2x |
Open |
Closed |
1 & 2 |
2 & 3 |
2 & 3 |
|
150MHz |
60MHz |
2x |
Open |
Closed |
2 & 3 |
2 & 3 |
1 & 2 |
|
166MHz |
66MHz |
2x |
Open |
Closed |
2 & 3 |
1 & 2 |
2 & 3 |
|
200MHz |
75MHz |
2x |
Open |
Closed |
1 & 2 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU SPEED SELECTION (AMD) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP6 |
JP7 |
JP8 |
|
75MHz |
50MHz |
1.5x |
Open |
Open |
2 & 3 |
2 & 3 |
2 & 3 |
|
90MHz |
60MHz |
1.5x |
Open |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
100MHz |
66MHz |
1.5x |
Open |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
120MHz |
60MHz |
1.5x |
Open |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
133MHz |
66MHz |
1.5x |
Open |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU SPEED SELECTION (INTEL) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP6 |
JP7 |
JP8 |
|
75MHz |
50MHz |
1.5x |
Open |
Open |
2 & 3 |
2 & 3 |
2 & 3 |
|
90MHz |
60MHz |
1.5x |
Open |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
100MHz |
66MHz |
1.5x |
Open |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
120MHz |
60MHz |
2x |
Open |
Closed |
2 & 3 |
2 & 3 |
1 & 2 |
|
133MHz |
66MHz |
2x |
Open |
Closed |
2 & 3 |
1 & 2 |
2 & 3 |
|
150MHz |
60MHz |
2.5x |
Closed |
Closed |
2 & 3 |
2 & 3 |
1 & 2 |
|
166MHz |
66MHz |
2.5x |
Closed |
Closed |
2 & 3 |
1 & 2 |
2 & 3 |
|
200MHz |
66MHz |
3x |
Closed |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||||
