GEMLIGHT COMPUTER, LTD.
GMB-P58VAX (VER. 1.10)
|
Device Type |
Mainboard |
|
Processor |
CX 6X86/CX 6X86L/AM K5/AM K6/Pentium/Pentium MMX |
|
Processor Speed |
90/100/120/133/150/166/200/233/266MHz |
|
Chip Set |
VIA Apollo AP3 |
|
Maximum Onboard Memory |
1GB (EDO & SDRAM supported) |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
305mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, game port, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), ATX power connector, AGP slot, USB connectors (2), wavetable connector, audio in - CD-ROMs (2), microphone in, speaker out, line in |
|

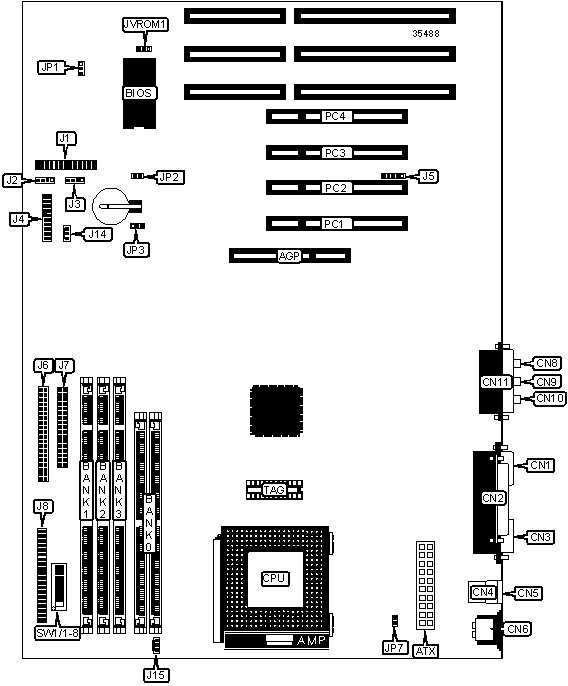

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
Audio in - CD-ROM (Sony) |
J3 |
|
ATX power |
ATX |
IDE interface LED |
J4/pins 1 & 2 |
|
Serial port 2 |
CN1 |
ACPI LED |
J4/pins 3 & 4 |
|
Parallel port |
CN2 |
Power switch |
J4/pins 5 & 6 |
|
Serial port 1 |
CN3 |
Reset switch |
J4/pins 9 & 10 |
|
USB connectors 1 |
CN4 |
Power LED & keylock |
J4/pins 11 - 15 |
|
USB connectors 2 |
CN5 |
Speaker |
J4/pins 17 - 20 |
|
PS/2 mouse port |
CN6 |
IR connector |
J5 |
|
Microphone |
CN8 |
IDE interface 1 |
J6 |
|
Line in |
CN9 |
Floppy drive interface |
J7 |
|
Speaker out |
CN10 |
IDE interface 2 |
J8 |
|
Game port |
CN11 |
Internal modem ring connector |
J14 |
|
Wavetable connector |
J1 |
CPU fan power |
J15 |
|
Audio in - CD-ROM (Mitsumi/Panasonic) |
J2 |
32-bit PCI slots |
PC1 - PC4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CPU overheat alarm disabled |
JP1 |
Open |
|
CPU overheat alarm enabled |
JP1 |
Pins 2 & 3 closed | |
|
» |
On board audio enabled |
JP2 |
Closed |
|
On board audio disabled |
JP2 |
Open | |
|
» |
CMOS memory normal operation |
JP3 |
Pins 1 & 2 closed |
|
CMOS memory clear |
JP3 |
Pins 2 & 3 closed | |
|
» |
Flash BIOS voltage select 5v |
JVROM1 |
Pins 1 & 2 closed |
|
Flash BIOS voltage select 12v |
JVROM1 |
Pins 2 & 3 closed | |
|
SIMM CONFIGURATION | |
|
Size |
Bank 0 |
|
8MB |
(2) 1MB x 36 |
|
16MB |
(2) 2MB x 36 |
|
32MB |
(2) 4MB x 36 |
|
64MB |
(2) 8MB x 36 |
|
128MB |
(2) 16MB x 36 |
|
256MB |
(2) 32MB x 36 |
|
DIMM CONFIGURATION | |||
|
Size |
Bank 1 |
Bank 2 |
Bank 3 |
|
8MB |
(1) 1MB x 64 |
None |
None |
|
16MB |
(1) 1MB x 64 |
(1) 1MB x 64 |
None |
|
16MB |
(1) 2MB x 64 |
None |
None |
|
24MB |
(1) 2MB x 64 |
(1) 1MB x 64 |
None |
|
32MB |
(1) 2MB x 64 |
(1) 2MB x 64 |
None |
|
32MB |
(1) 4MB x 64 |
None |
None |
|
40MB |
(1) 2MB x 64 |
(1) 2MB x 64 |
(1) 1MB x 64 |
|
40MB |
(1) 4MB x 64 |
(1) 1MB x 64 |
None |
|
48MB |
(1) 2MB x 64 |
(1) 2MB x 64 |
(1) 2MB x 64 |
|
48MB |
(1) 4MB x 64 |
(1) 2MB x 64 |
None |
|
64MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
None |
|
64MB |
(1) 8MB x 64 |
None |
None |
|
72MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
(1) 1MB x 64 |
|
72MB |
(1) 8MB x 64 |
(1) 1MB x 64 |
None |
|
80MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
(1) 2MB x 64 |
|
96MB |
(1) 4MB x 64 |
(1) 4MB x 64 |
(1) 4MB x 64 |
|
104MB |
(1) 8MB x 64 |
(1) 4MB x 64 |
None |
|
128MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
None |
|
128MB |
(1) 16MB x 64 |
None |
None |
|
136MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
(1) 1MB x 64 |
|
136MB |
(1) 16MB x 64 |
(1) 1MB x 64 |
None |
|
144MB |
(1) 16MB x 64 |
(1) 2MB x 64 |
None |
|
160MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
(1) 4MB x 64 |
|
160MB |
(1) 16MB x 64 |
(1) 4MB x 64 |
None |
|
192MB |
(1) 8MB x 64 |
(1) 8MB x 64 |
(1) 8MB x 64 |
|
192MB |
(1) 16MB x 64 |
(1) 8MB x 64 |
None |
|
256MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
None |
|
256MB |
(1) 32MB x 64 |
None |
None |
|
264MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 1MB x 64 |
|
264MB |
(1) 32MB x 64 |
(1) 1MB x 64 |
None |
|
272MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 2MB x 64 |
|
272MB |
(1) 32MB x 64 |
(1) 2MB x 64 |
None |
|
288MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 4MB x 64 |
|
288MB |
(1) 32MB x 64 |
(1) 4MB x 64 |
None |
|
320MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 8MB x 64 |
|
320MB |
(1) 32MB x 64 |
(1) 8MB x 64 |
None |
|
384MB |
(1) 16MB x 64 |
(1) 16MB x 64 |
(1) 16MB x 64 |
|
384MB |
(1) 32MB x 64 |
(1) 16MB x 64 |
None |
|
512MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
None |
|
520MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 1MB x 64 |
|
528MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 2MB x 64 |
|
544MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 4MB x 64 |
|
576MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 8MB x 64 |
|
640MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 16MB x 64 |
|
768MB |
(1) 32MB x 64 |
(1) 32MB x 64 |
(1) 32MB x 64 |
|
CPU SPEED SELECTION (INTEL) | ||||||||
|
Speed |
Clock speed |
Multiplier |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
90MHz |
60MHz |
1.5x |
Off |
Off |
Off |
On |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
On |
Off |
Off |
On |
Off |
Off |
|
133MHz |
66MHz |
2x |
On |
Off |
Off |
Off |
Off |
Off |
|
150MHz |
60MHz |
2.5x |
On |
On |
Off |
On |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
On |
On |
Off |
Off |
Off |
Off |
|
200MHz |
66MHz |
3x |
Off |
On |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL MMX) | ||||||||
|
Speed |
Clock speed |
Multiplier |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
166MHz |
66MHz |
2.5x |
On |
On |
Off |
Off |
Off |
Off |
|
200MHz |
66MHz |
3x |
Off |
On |
Off |
Off |
Off |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (CX 6X86) | ||||||||
|
Speed |
Clock speed |
Multiplier |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
150MHz |
60MHz |
2x |
On |
Off |
Off |
On |
Off |
Off |
|
166MHz |
66MHz |
2x |
On |
Off |
Off |
Off |
Off |
Off |
|
200MHz |
60MHz |
2.5x |
On |
Off |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX 6X86L) | ||||||||
|
Speed |
Clock speed |
Multiplier |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
150MHz |
60MHz |
2x |
On |
Off |
Off |
On |
Off |
Off |
|
166MHz |
66MHz |
2x |
On |
Off |
Off |
Off |
Off |
Off |
|
200MHz |
60MHz |
2.5x |
On |
Off |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX 6X86MX) | ||||||||
|
Speed |
Clock speed |
Multiplier |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
166MHz |
60MHz |
2.5x |
On |
On |
Off |
On |
Off |
Off |
|
200MHz |
75MHz |
2x |
On |
Off |
Off |
Off |
On |
Off |
|
200MHz |
66MHz |
2.5x |
On |
On |
Off |
Off |
Off |
Off |
|
233MHz |
75MHz |
2.5x |
On |
On |
Off |
Off |
On |
Off |
|
CPU SPEED SELECTION (AM K5) | ||||||||
|
Speed |
Clock speed |
Multiplier |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
120MHz |
60MHz |
2x |
On |
Off |
Off |
On |
Off |
Off |
|
133MHz |
66MHz |
2x |
On |
Off |
Off |
Off |
Off |
Off |
|
166MHz |
66MHz |
2.5x |
On |
On |
Off |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AM K6) | ||||||||
|
Speed |
Clock speed |
Multiplier |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
166MHz |
66MHz |
2.5x |
On |
On |
Off |
Off |
Off |
Off |
|
200MHz |
66MHz |
3x |
Off |
On |
Off |
Off |
Off |
Off |
|
233MHz |
66MHz |
3.5x |
Off |
Off |
Off |
Off |
Off |
Off |
|
266MHz |
66MHz |
4x |
On |
Off |
On |
Off |
Off |
Off |
|
300MHz |
66MHz |
4.5x |
On |
On |
On |
Off |
Off |
Off |
|
CPU VOLTAGE SELECTION | |||
|
Voltage |
JP7 |
SW1/1 |
SW1/2 |
|
Auto |
Open |
Off |
Off |
|
2.2V |
Closed |
Off |
On |
|
2.8V |
Closed |
Off |
Off |
|
2.9V |
Closed |
On |
Off |
|
3.52V |
Closed |
On |
On |
