Processor	80386SX
Processor Speed	20/25MHz
Chip Set	C & T SCAT
Max. Onboard DRAM	16MB
SRAM Cache	None
BIOS	AMI
Dimensions	240mm x 220mm
I/O Options	None
NPU Options	80387SX

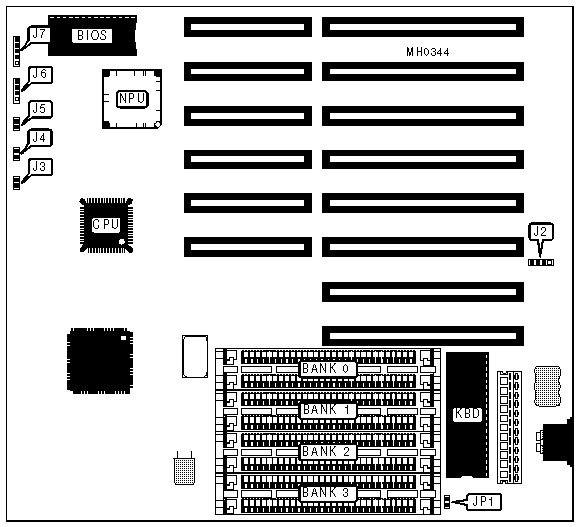

CONNECTIONS
Purpose	Location	Purpose	Location
Internal battery	J2/pins 2 & 4	Reset switch	J5
External battery	J2/pins 1 & 4	Speaker	J6
Turbo switch	J3	Power LED & keylock	J7
Turbo LED	J4

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	J2	pins 3 & 4 open
	CMOS memory clear	J2	pins 3 & 4 closed
»	Monitor type select color	JP1	closed
	Monitor type select monochrome	JP1	open
Note:J2/pin 4 is also used as ground for internal or external battery.

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	NONE	NONE	NONE
1MB	(2) 256K x 9	(2) 256K x 9	NONE	NONE
1.5MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	NONE
2MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE	NONE	NONE
2.5MB	(2) 256K x 9	(2) 1M x 9	NONE	NONE
3MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9	NONE	NONE
4.5MB	(2) 256K x 9	(2) 1M x 9	(2) 1M x 9	NONE
5MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	(2) 1M x 9
6MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	NONE
6.5MB	(2) 256K x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
9MB	(2) 256K x 9	(2) 256K x 9	(2) 4M x 9	NONE
10MB	(2) 1M x 9	(2) 4M x 9	NONE	NONE
16MB	(2) 4M x 9	(2) 4M x 9	NONE	NONE
