Processor	80386SX
Processor Speed	16MHz
Chip Set	Zymos
Max. onboard DRAM	4MB
Cache	None
BIOS	Leading Edge
Dimensions	325mm x 308mm
I/O Options	Floppy drive interface, PS/2 mouse port, parallel port, serial port, video
NPU Options	80387SX

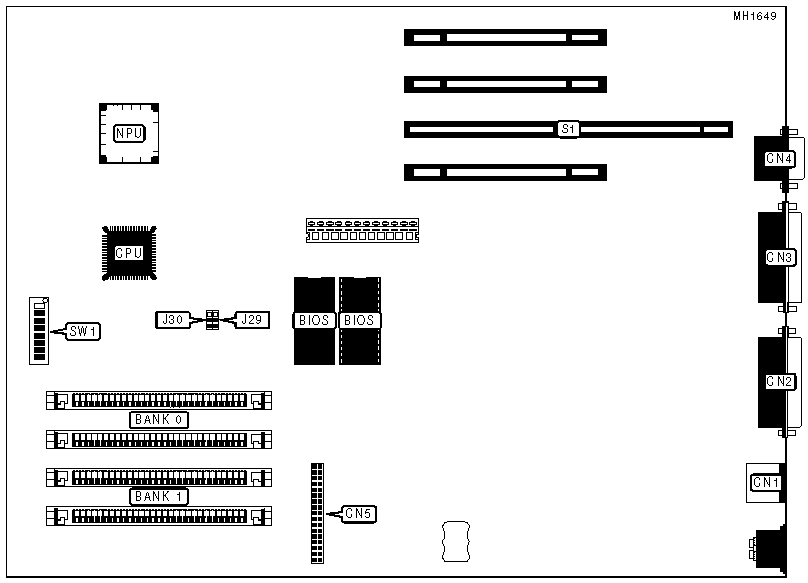

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 Mouse port	CN1	Video port	CN4
Serial port 1 (25 pin)	CN2	Floppy drive interface	CN5
Parallel port	CN3	16-bit MCA slot w/video extension	S1

USER CONFIGURABLE SETTINGS
Function		SW1/switches 1 - 5
»	Factory configured - do not alter	On

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9

DRAM JUMPER/SWITCH CONFIGURATION
Size	J29	J30	SW1/switch 6	SW1/switch 7	SW1/switch 8
1MB	pins 2 & 3	pins 2 & 3	On	Off	On
2MB	pins 1 & 2	pins 1 & 2	Off	On	Off
4MB	pins 1 & 2	pins 1 & 2	On	Off	Off
