Processor

80486SX/80487SX/80486DX/ODP486SX/80486DX2

Processor Speed

20/25/33/50(internal)/66(internal)MHz

Chip Set

Forex

Max. Onboard DRAM

32MB

Cache

64/128/256KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit VESA local bus slots (2)

NPU Options

None

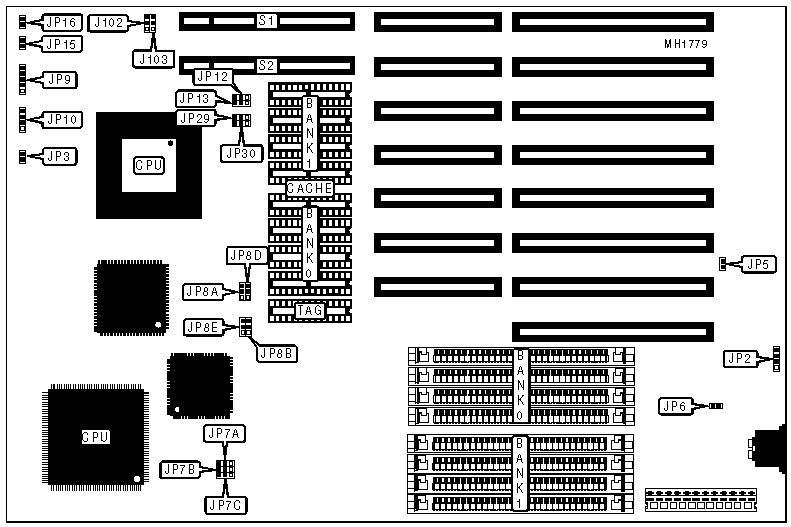

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

JP2

Turbo switch

JP15

Reset switch

JP3

Turbo LED

JP16

Power LED & keylock

JP9

32-bit VESA Local bus slot

S1

Speaker

JP10

32-bit VESA Local bus slot

S2

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Factory configured - do not alter

JP5

Open

»

CMOS memory normal operation

JP6

Open

CMOS memory clear

JP6

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

5MB

(4) 256K x 9

(4) 1M x 9

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

20MB

(4) 1M x 9

(4) 4M x 9

32MB

(4) 4M x 9

(4) 4M x 9

CACHE CONFIGURATION

Size

Max Cachable

Bank 0

Bank 1

TAG

64KB

16MB

(4) 8K x 8

(4) 8K x 8

(1) 8K x 8

128KB

32MB

(4) 32K x 8

NONE

(1) 8K x 8

256KB

32MB

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP8A

JP8B

JP8D

JP8E

64KB

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

128KB

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

256KB

pins 2 & 3 closed

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

CPU TYPE CONFIGURATION

Type

JP12

JP13

JP29

JP30

80486SX

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

80487SX

pins 1 & 2 closed

pins 1 & 2 closed

pins 2 & 3 closed

pins 2 & 3 closed

80486DX

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

ODP486SX

pins 1 & 2 closed

pins 1 & 2 closed

pins 2 & 3 closed

pins 2 & 3 closed

80486DX2

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

CPU SPEED CONFIGURATION

Speed

JP7A

JP7B

JP7C

20MHz

pins 2 & 3 closed

pins 1 & 2 closed

pins 1 & 2 closed

25MHz

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

33MHz

pins 1 & 2 closed

pins 1 & 2 closed

pins 2 & 3 closed

50i MHz

pins 1 & 2 closed

pins 2 & 3 closed

pins 1 & 2 closed

66i MHz

pins 1 & 2 closed

pins 1 & 2 closed

pins 2 & 3 closed

VESA WAIT STATE/BUS SPEED CONFIGURATION

CPU speed

Wait states

JP102

JP103

£ 33MHz

0 wait states

pins 1 & 2 closed

pins 1 & 2 closed

> 33MHz

1 wait state

pins 2 & 3 closed

pins 2 & 3 closed
