Processor	80386DX
Processor Speed	33MHz
Chip Set	Unknown
Max. Onboard DRAM	16MB
Cache	None
BIOS	Phoenix
Dimensions	330mm x 110mm
I/O Options	CPU card slot, Floppy drive interface, IDE interface, PS/2 mouse port, parallel port, serial ports (2)
NPU Options	80387DX

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	IDE interface	CN5
PS/2 mouse port	CN3	Serial port 1 & 2	J13
Floppy drive interface	CN4	CPU card slot	S1

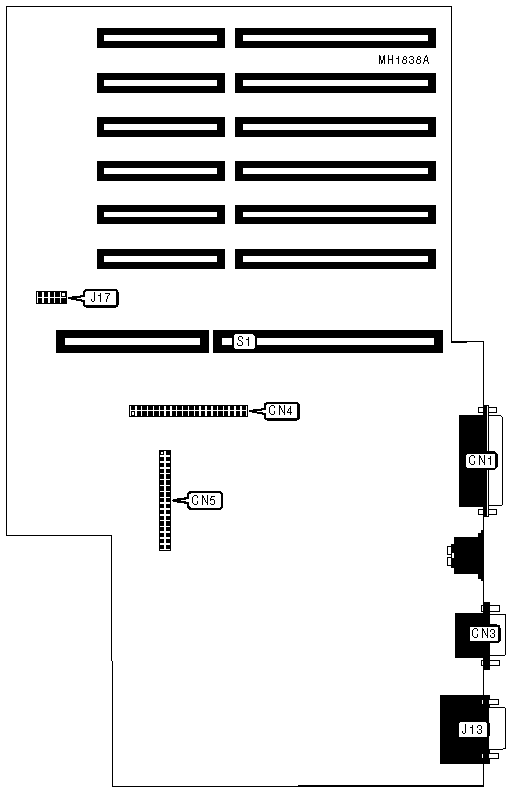

USER CONFIGURABLE SETTINGS/BACKPLANE BOARD
Function		Jumper	Position
»	Monitor type select color	J17	pins 1 & 2 closed
	Monitor type select monochrome	J17	pins 1 & 2 open
»	PS/2 mouse port enabled	J17	pins 3 & 4 closed
	PS/2 mouse port disabled	J17	pins 3 & 4 open
»	Floppy drive interface enabled	J17	pins 5 & 6 closed
	Floppy drive interface disabled	J17	pins 5 & 6 open
»	IDE interface enabled	J17	pins 7 & 8 closed
	IDE interface disabled	J17	pins 7 & 8 open
»	Battery enabled	J17	pins 9 & 10 closed
	Battery disabled	J17	pins 9 & 10 open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(4) 256K x 9	NONE	NONE	NONE
2MB	(4) 256K x 9	(4) 256K x 9	NONE	NONE
3MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	NONE
4MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE	NONE	NONE
5MB	(4) 256K x 9	(4) 1M x 9	NONE	NONE

DRAM CONFIGURATION (CONT.)
Size	Bank 0	Bank 1	Bank 2	Bank 3
6MB	(4) 256K x 9	(4) 256K x 9	(4) 1M x 9	NONE
7MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 1M x 9
8MB	(4) 1M x 9	(4) 1M x 9	NONE	NONE
9MB	(4) 256K x 9	(4) 1M x 9	(4) 1M x 9	NONE
10MB	(4) 256K x 9	(4) 256K x 9	(4) 1M x 9	(4) 1M x 9
12MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	NONE
13MB	(4) 256K x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9
16MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9

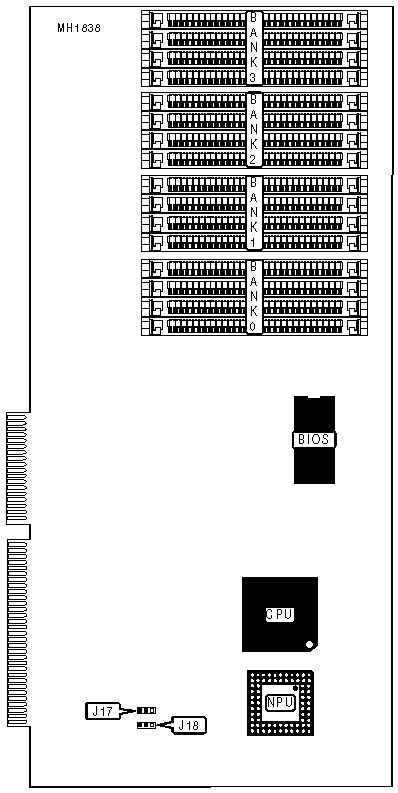

USER CONFIGURABLE SETTINGS/CPU BOARD
Function		Jumper	Position
»	NPU disabled	J17	pins 2 & 3 closed
	NPU enabled	J17	pins 1 & 2 closed
»	80387DX installed	J18	pins 1 & 2 closed
	Weitek installed	J18	pins 2 & 3 closed
