Processor	80286
Processor Speed	12/16MHz
Chip Set	Headland
Max. Onboard DRAM	4MB
Cache	None
BIOS	Phoenix
Dimensions	220mm x 218mm
I/O Options	None
NPU Options	80287

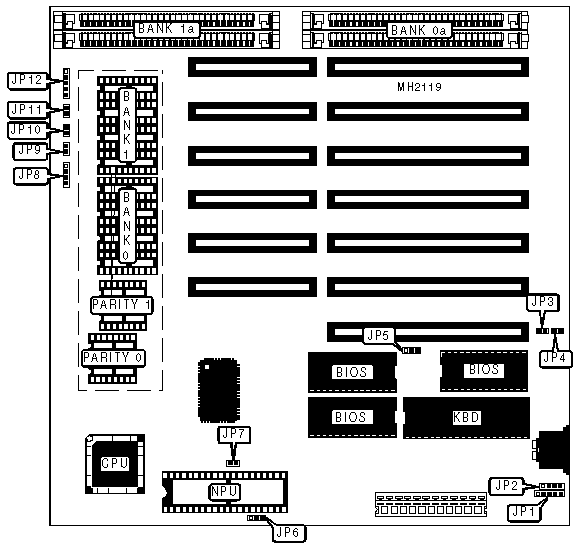

CONNECTIONS
Purpose	Location	Purpose	Location
Keyboard connector	JP1	Turbo switch	JP10
External battery	JP2	Reset switch	JP11
Speaker	JP8	Power LED & keylock	JP12
Turbo LED	JP9

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	On board parity check enabled	JP3	Open
	On board parity check disabled	JP3	Closed
»	CMOS memory normal operation	JP4	Open
	CMOS memory clear	JP4	Closed
»	BIOS type select 27128	JP5	pins 1 & 2 closed
	BIOS type select 27256	JP5	pins 2 & 3 closed
»	NPU clock speed select 4.77MHz	JP6	pins 1 & 2 closed
	NPU clock speed select 8MHz/10.77MHz	JP6	pins 2 & 3 closed
»	Factory configured - do not alter	JP7	Closed
»	CPU clock speed select 12MHz	JP10	Closed
	CPU clock speed select 12MHz	JP10	Open

DRAM CONFIGURATION
Size	Bank 0	Parity 0	Bank 1	Parity 1	Bank Oa	Bank 1a
512KB	(4) 44256 &	(2) 41256	NONE	NONE	(2) 256K x 9	NONE
1MB	(4) 44256 &	(2) 41256	(4) 44256 &	(2) 41256	NONE	NONE
1MB	NONE	NONE	NONE	NONE	(2) 256K x 9	(2) 256K x 9
2MB	NONE	NONE	NONE	NONE	(2) 1M x 9	NONE
2.5MB	(4) 44256 &	(2) 41256	NONE	NONE	(2) 1M x 9	(2) 1M x 9
2.5MB	NONE	NONE	(4) 44256 &	(2) 41256	(2) 1M x 9	(2) 1M x 9
4MB	NONE	NONE	NONE	NONE	(2) 1M x 9	(2) 1M x 9
