INTEL CORPORATION
ZAPPA EXPANDABLE DESKTOP (P54C-PCI TRITON)
|
Processor |
Pentium |
|
Processor Speed |
75/90MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256/512KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
PS/2 mouse port, parallel port, serial ports (2), 32-bit PCI slots (3), green PC connector, floppy drive interface, IDE interfaces (2) |
|
NPU Options |
None |
|

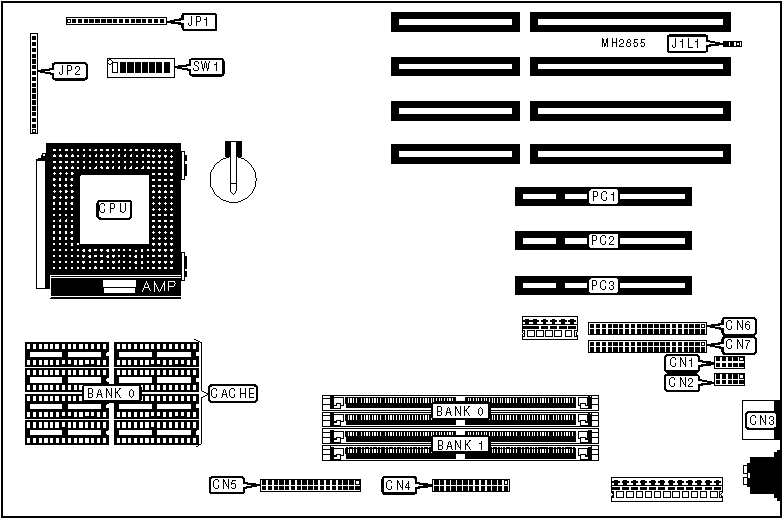

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 2 |
CN1 |
IDE interface LED |
JP1 pins 4 - 8 |
|
Serial port 1 |
CN2 |
Power LED & keylock |
JP1 pins 10 - 15 |
|
PS/2 mouse port |
CN3 |
Reset switch |
JP1 pins 16 - 17 |
|
Parallel port |
CN4 |
Green PC connector |
JP2 pins 1 & 2 |
|
Floppy drive interface |
CN5 |
Infra red connector |
JP2 pins 4 - 8 |
|
IDE interface 2 |
CN6 |
Chassis fan power |
JP2 pins 10 - 12 |
|
IDE interface 1 |
CN7 |
Speaker |
JP2 pins 14 - 17 |
|
Turbo LED |
JP1 pins 1 & 2 |
32-bit PCI slots |
PC1 - PC3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper/Switch |
Position | |
|
» |
Recovery boot enabled |
J1L1 |
pins 1 & 2 closed |
|
Recovery boot disabled |
J1L1 |
pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
SW1/1 |
Off |
|
» |
Factory configured - do not alter |
SW1/2 |
Off |
|
» |
Password memory normal operation |
SW1/3 |
Off |
|
Password memory clear |
SW1/3 |
On | |
|
» |
CMOS memory normal operation |
SW1/4 |
Off |
|
CMOS memory clear |
SW1/4 |
On | |
|
» |
CMOS setup utility enabled |
SW1/5 |
Off |
|
CMOS setup utility disabled |
SW1/5 |
On | |
|
» |
CPU bus clock speed select 2/3 |
SW1/6 |
Off |
|
CPU bus clock speed select 1/2 |
SW1/6 |
On | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
NONE |
(2) 1M x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
16MB |
NONE |
(2) 2M x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
NONE |
(2) 4M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
NONE |
(2) 8M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(8) 32K x 8 |
|
512KB |
(8) 128K x 8 |
|
CPU SPEED CONFIGURATION | ||
|
Speed |
SW1/7 |
SW1/8 |
|
75MHz |
Off |
Off |
|
90MHz |
On |
Off |
