ICL
TEAMSERVER HI SERIES
|
Processor |
80486SX/80486DX/80486DX2/Pentium (depends on CPU board installed) |
|
Processor Speed |
25/33/50(internal)/60/66(internal)/66MHz (depends on CPU board installed) |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
384MB (256MB on external memory card) |
|
Cache |
128KB |
|
BIOS |
Unidentified |
|
Dimensions |
355mm x 305mm |
|
I/O Options |
PS/2 mouse port, parallel port, serial ports (2), VGA feature connector, floppy drive interface, IDE interface, external memory card, CPU slot |
|
NPU Options |
None |
|

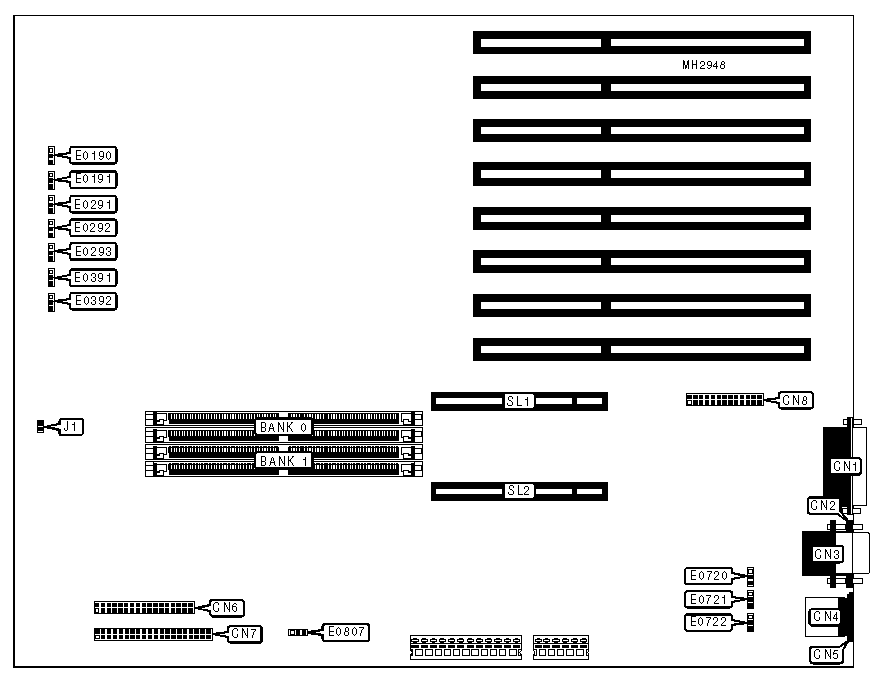

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
IDE interface |
CN7 |
|
Serial port 1 |
CN2 |
VGA feature connector (not used) |
CN8 |
|
Serial port 2 |
CN3 |
Reset switch |
J1 |
|
PS/2 mouse port |
CN4 |
External memory card |
SL1 |
|
Keyboard connector |
CN5 |
CPU slot |
SL2 |
|
Floppy drive interface |
CN6 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Flash BIOS normal operation |
E0190 |
pins 2 & 3 closed |
|
Flash BIOS reset |
E0190 |
pins 1 & 2 closed | |
|
» |
VGA card select HRA10I only |
E0191 |
pins 2 & 3 closed |
|
VGA card select other cards |
E0191 |
pins 1 & 2 closed | |
|
» |
Diskette read/write enabled |
E0291 |
pins 1 & 2 closed |
|
Diskette read/write disabled |
E0291 |
pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
E0292 |
pins 1 & 2 closed |
|
CMOS memory clear |
E0292 |
pins 2 & 3 closed | |
|
» |
Password disabled |
e0293 |
pins 1 & 2 closed |
|
Password enabled |
e0293 |
pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
E0720 |
pins 1 & 2 closed |
|
» |
Flash BIOS normal operation |
E0721 |
pins 1 & 2 closed |
|
flash BIOS forced flash load (insert BIOS disk in drive A) |
E0721 |
pins 2 & 3 closed | |
|
» |
On board video controller address select 046E8H |
E0722 |
pins 2 & 3 closed |
|
On board video controller address select03C3H |
E0722 |
pins 1 & 2 closed | |
|
» |
Boot block write disabled |
E0807 |
pins 1 & 2 closed |
|
Boot block write enabled |
E0807 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
DRAM JUMPER CONFIGURATION | ||
|
Size |
E0391 |
E0392 |
|
1M x 36 or 2M x 36 |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
4M x 36 or 8M x 36 |
pins 2 & 3 closed |
pins 2 & 3 closed |
|

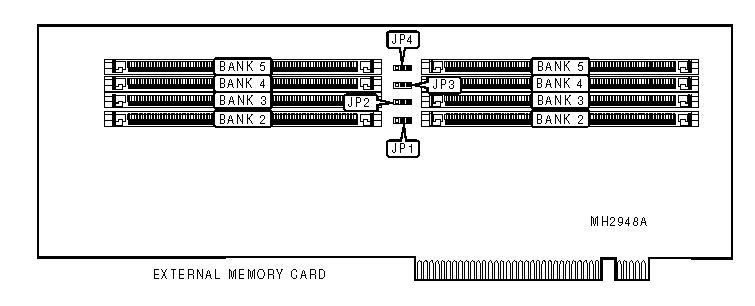

DRAM CONFIGURATION (EXTERNAL MEMORY CARD) | ||||
|
Size |
Bank 2 |
Bank 3 |
Bank 4 |
Bank 5 |
|
8MB |
(2) 1M x 36 |
NONE |
NONE |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
NONE |
|
16MB |
(2) 2M x 36 |
NONE |
NONE |
NONE |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
NONE |
NONE |
|
32MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 2M x 36 |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
NONE |
NONE |
|
32MB |
(2) 4M x 36 |
NONE |
NONE |
NONE |
|
40MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
NONE |
NONE |
|
48MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
NONE |
NONE |
|
56MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 4M x 36 |
NONE |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
NONE |
|
64MB |
(2) 8M x 36 |
NONE |
NONE |
NONE |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
NONE |
NONE |
|
80MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 8M x 36 |
NONE |
|
88MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 8M x 36 |
NONE |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
|
DRAM CONFIGURATION (EXTERNAL MEMORY CARD, CON’T) | ||||
|
Size |
Bank 2 |
Bank 3 |
Bank 4 |
Bank 5 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
NONE |
NONE |
|
112MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 8M x 36 |
NONE |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
NONE |
NONE |
|
160MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 8M x 36 |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
NONE |
|
256MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
DRAM JUMPER CONFIGURATION | ||||
|
Size |
JP1 |
JP2 |
JP3 |
JP4 |
|
1M or 2M installed |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
4M or 8M installed |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CACHE CONFIGURATION |
|
Note: 128KB cache is factory installed and is not configurable. The location is unidentified. |
|

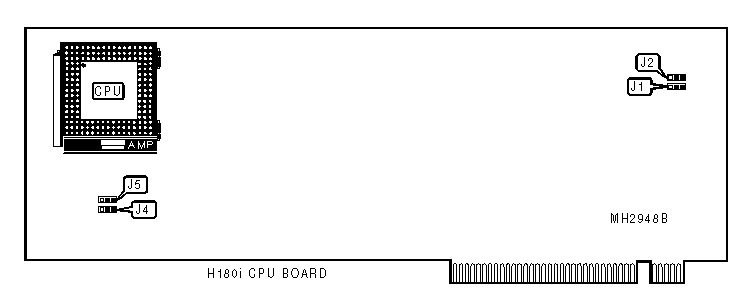

CPU TYPE CONFIGURATION | ||
|
Type |
J4 |
J5 |
|
80486SX |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
80486DX |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
80486DX2 |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
CPU SPEED CONFIGURATION | ||
|
Speed |
J1 |
J2 |
|
25MHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
33MHz |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
50iMHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
66iMHz |
pins 1 & 2 closed |
pins 1 & 2 closed |
