Processor	Pentium Pro
Processor Speed	120/133/150/166MHz
Chip Set	Intel
Max. Onboard DRAM	128MB
Cache	256KB
BIOS	AMI
Dimensions	390mm x 210mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2
NPU Options	None

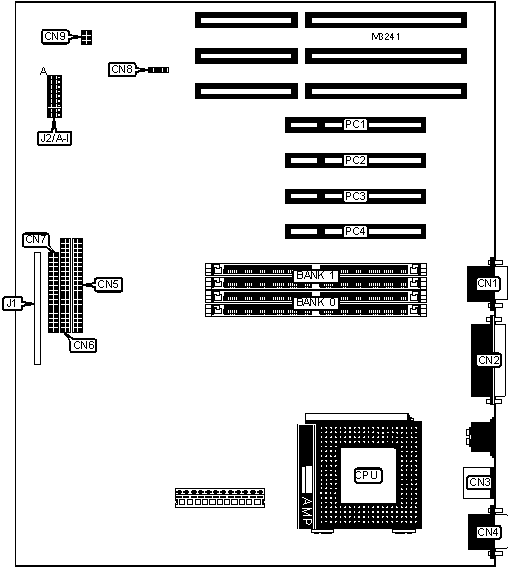

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 2	CN1	Floppy drive interface	CN7
Parallel port	CN2	IDE interface LED	CN8
PS/2 mouse port	CN3	Chassis fan power	CN9
Serial port 1	CN4	Front panel connector	J1
IDE interface 2	CN5	32-bit PCI slots	PC1 - PC4
IDE interface 1	CN6

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	J2/D	Pins 1 & 2 closed
»	Password normal operation	J2/E	Pins 1 & 2 closed
	Password clear	J2/E	Pins 2 & 3 closed
»	CMOS memory normal operation	J2/F	Pins 1 & 2 closed
	CMOS memory clear	J2/F	Pins 2 & 3 closed
»	Flash BIOS normal operation	J2/G	Pins 1 & 2 closed
	Flash BIOS force flash load	J2/G	Pins 2 & 3 closed
»	Boot block disabled	J2/H	Pins 1 & 2 closed
	Boot block enabled	J2/H	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 32	None
16MB	(2) 1M x 32	(2) 1M x 32
16MB	(2) 2M x 32	None
32MB	(2) 2M x 32	(2) 2M x 32
32MB	(2) 4M x 32	None
64MB	(2) 4M x 32	(2) 4M x 32
64MB	(2) 8M x 32	None
128MB	(2) 8M x 32	(2) 8M x 32
Note: Board also accepts x 36 SIMMs.

DRAM SPEED CONFIGURATION
Speed		J2/I
»	60ns	Pins 1 & 2 closed
	70ns	Pins 2 & 3 closed

CACHE CONFIGURATION

Note: 256KB cache is on Pentium Pro CPU.

CPU SPEED CONFIGURATION
Speed	J2/A	J2/B	J2/C
120MHz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
133MHz	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
150(s)MHz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
150MHz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
166MHz	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
