Processor	80486SLC
Processor Speed	25/50(internal)MHz
Chip Set	Unidentified
Video Chip Set	Unidentified
Maximum Onboard Memory	16MB
Maximum Video Memory	512KB
Cache	None
BIOS	Unidentified
Dimensions	254mm x 218mm
I/O Options	Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial port, feature connector, monitor connector, riser slot
NPU Options	Unidentified

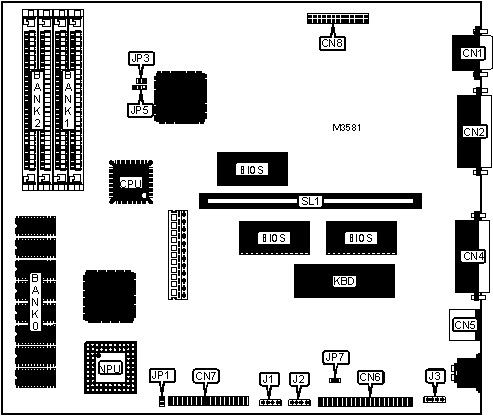

CONNECTIONS
Purpose	Location	Purpose	Location
Monitor connector	CN1	Feature connector	CN8
Parallel port	CN2	Floppy drive power connector	J1
Serial port	CN4	Floppy drive power connector 5.25"	J2
PS/2 mouse port	CN5	IDE interface power connector	J3
IDE interface	CN6	Riser slot	SL1
Floppy drive interface	CN7

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP1	Open
»	Feature connector not used with an Action Media card	JP3	Open
	Feature connector uses adapter card and feature video connector	JP3	Closed
»	On board video enabled	JP5	Pins 1 & 2 closed
	On board video disabled	JP5	Pins 2 & 3 closed
»	Password normal operation	JP7	Open
	Password clear	JP7	Closed

DRAM CONFIGURATION (MODELS 040/04X)
Size	Bank 0	Bank 1	Bank 2
1MB	4MB	None	None
3MB	4MB	(2) 1M x 9	None
5MB	4MB	(2) 1M x 9	(2) 1M x 9
8MB	4MB	(2) 4M x 9	None
16MB	4MB	(2) 4M x 9	(2) 4M x 9
Note: Bank 0 is factory installed and is not configurable. When 16MB is installed, bank 0 is disabled.

VIDEO MEMORY CONFIGURATION

Note: Board is installed with 512KB memory. The location is unidentified.
