Processor	Pentium
Processor Speed	75/90/100/120/133/150/166/200MHz
Chip Set	Intel
Video Chip Set	ATI
Maximum Onboard Memory	128MB (EDO supported)
Maximum Video Memory	2MB
Cache	256/512KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VESA feature connector, riser slot, cache slot, IR connector, wave table connector, audio connector, CD-ROM connector
NPU Options	None

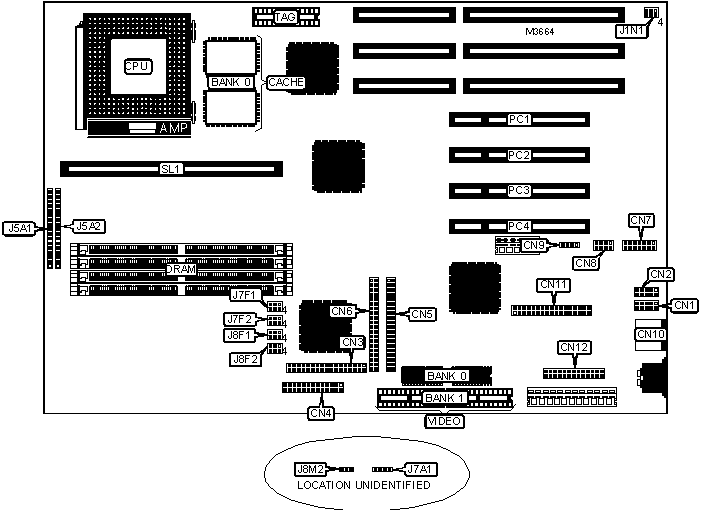

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 1	CN1	Turbo LED	J5A1 pins 1 & 2
Serial port 2	CN2	IDE interface LED	J5A1 pins 5 - 8
Floppy drive interface	CN3	Power LED & keylock	J5A1 pins 10 - 15
Parallel port	CN4	Reset switch	J5A1 pins 16 & 17
IDE interface 1	CN5	Green PC connector	J5A2 pins 1 & 2
IDE interface 2	CN6	IR connector	J5A2 pins 4 - 8
Video connector (optional)	CN7	Chassis fan power	J5A2 pins 10 - 12
Wave table connector	CN8	Speaker	J5A2 pins 14 - 17
CD-ROM interface	CN9	Soft off/sleep	J7A1
PS/2 mouse port	CN10	Soft power supply on	J8M2
Audio connector	CN11	32-bit PCI slots	PC1 - PC4
VESA feature connector	CN12	Cache slot	SL1

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Factory configured - do not alter (pins 1, 2, & 3 only)	J1N1	N/A
»	Password normal operation	J7F1	Pins 4 & 5 closed
	Password clear	J7F1	Pins 5 & 6 closed
»	Setup access enabled	J7F2	Pins 1 & 2 closed
	Setup access disabled	J7F2	Pins 2 & 3 closed
»	CMOS memory normal operation	J7F2	Pins 4 & 5 closed
	CMOS memory clear	J7F2	Pins 5 & 6 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 32	None
16MB	(2) 2M x 32	None
16MB	(2) 1M x 32	(2) 1M x 32
24MB	(2) 2M x 32	(2) 1M x 32
24MB	(2) 1M x 32	(2) 2M x 32
32MB	(2) 4M x 32	None
32MB	(2) 2M x 32	(2) 2M x 32
40MB	(2) 4M x 32	(2) 1M x 32
40MB	(2) 1M x 32	(2) 4M x 32
48MB	(2) 4M x 32	(2) 2M x 32
48MB	(2) 2M x 32	(2) 4M x 32
64MB	(2) 8M x 32	None
64MB	(2) 4M x 32	(2) 4M x 32
72MB	(2) 8M x 32	(2) 1M x 32
72MB	(2) 1M x 32	(2) 8M x 32
80MB	(2) 8M x 32	(2) 2M x 32

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
80MB	(2) 2M x 32	(2) 8M x 32
96MB	(2) 8M x 32	(2) 4M x 32
96MB	(2) 4M x 32	(2) 8M x 32
128MB	(2) 8M x 32	(2) 8M x 32
Note: Board accepts EDO memory. The location of banks 0 & 1 are unidentified. Board also accepts x 36 SIMMs.

CACHE CONFIGURATION
Size	Bank 0	SL1	TAG
256KB	(2) 32K x 32	None	Unidentified
512KB	(2) 32K x 32	256KB module installed	Unidentified
Note: The size of the TAG chip is unidentified.

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
1MB	1MB	None
2MB	1MB	(2) 256K x 16
Note: Bank 0 is factory installed and is not configurable.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	J1N1	J8F1	J8F2
75MHz	50MHz	1.5x	4 & 5	1 & 2, 5 & 6	1 & 2
90MHz	60MHz	1.5x	4 & 5	1 & 2, 4 & 5	1 & 2
100MHz	66MHz	1.5x	4 & 5	2 & 3, 5 & 6	1 & 2
120MHz	60MHz	2x	4 & 5	1 & 2, 4 & 5	2 & 3
133MHz	66MHz	2x	4 & 5	2 & 3, 5 & 6	2 & 3
150MHz	60MHz	2.5x	5 & 6	1 & 2, 4 & 5	2 & 3
166MHz	66MHz	2.5x	5 & 6	2 & 3, 5 & 6	2 & 3
200MHz	66MHz	3x	5 & 6	2 & 3, 5 & 6	1 & 2
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION
Voltage	J8F2
3.3v - 3.3465v	Pins 4 & 5 closed
3.465v - 3.63v	Pins 5 & 6 closed

CPU ISA BUS CLOCK SELECTION
Clock speed		Bus speed	J7F1
	50MHz	8.33MHz	Pins 1 & 2 or 2 & 3 closed
»	60MHz	7.5MHz	Pins 1 & 2 closed
	60MHz	10MHz	Pins 2 & 3 closed
»	66MHz	8.25MHz	Pins 1 & 2 closed
	66MHz	11MHz	Pins 2 & 3 closed
