IBM CORPORATION
APTIVA 2159
|
 Processor  |
 Pentium  |
|
 Processor Speed  |
 133/150/166/200MHz  |
|
 Chip Set  |
 Unidentified  |
|
 Video Chip Set  |
 Unidentified  |
|
 Maximum Onboard Memory  |
 128MB (EDO supported)  |
|
 Maximum Video Memory  |
 2MB  |
|
 Cache  |
 256/512KB  |
|
 BIOS  |
 Unidentified  |
|
 Dimensions  |
 330mm x 218mm  |
|
 I/O Options  |
 Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial port, VESA feature connector, VGA port, VGA interface, riser slot, cache slot, VRM connector, USB connector, Media console connector, wake up on ring connector  |
|
 NPU Options  |
 None  |
|

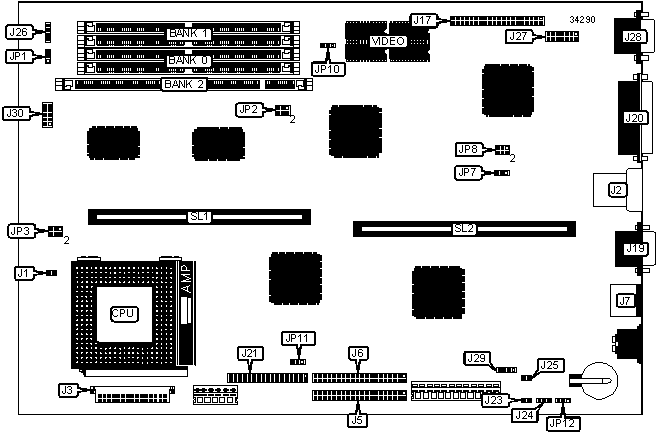

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 Chassis fan power  |
 J1  |
 Soft off power supply  |
 J23  |
|
 USB connector  |
 J2  |
 Auxiliary 5v connector  |
 J24  |
|
 VRM connector  |
 J3  |
 Wake up on ring connector  |
 J25  |
|
 IDE interface 1  |
 J5  |
 IDE interface LED  |
 J26  |
|
 IDE interface 2  |
 J6  |
 VGA interface  |
 J27  |
|
 PS/2 mouse port  |
 J7  |
 VGA port  |
 J28  |
|
 VESA feature connector  |
 J17  |
 Speaker  |
 J29  |
|
 Serial port  |
 J19  |
 Media console connector  |
 J30  |
|
 Parallel port  |
 J20  |
 Cache slot  |
 SL1  |
|
 Floppy drive interface  |
 J21  |
 Riser slot  |
 SL2  |
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Label  |
 Position  | |
|
 External speaker enabled  |
 JP1  |
 Pins 1 & 2 closed  | |
|
 External speaker disabled  |
 JP1  |
 Open  | |
|
 Flash BIOS write protect disabled  |
 JP7  |
 Pins 1 & 2 closed  | |
|
 Flash BIOS write protect enabled  |
 JP7  |
 Pins 2 & 3 closed  | |
|
 »  |
 Factory configured - do not alter  |
 JP8  |
 Unidentified  |
|
 On board video enabled  |
 JP10  |
 Pins 1 & 2 closed  | |
|
 On board video disabled  |
 JP10  |
 Pins 2 & 3 closed  | |
|
 Floppy drive write protect disabled  |
 JP11  |
 Pins 1 & 2 closed  | |
|
 Floppy drive write protect enabled  |
 JP11  |
 Pins 2 & 3 closed  | |
|
 »  |
 CMOS memory normal operation  |
 JP12  |
 Pins 1 & 2 closed  |
|
 CMOS memory clear  |
 JP12  |
 Pins 2 & 3 closed  | |
|
 DRAM CONFIGURATION  | ||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 8MB  |
 (2) 1M x 36  |
 None  |
|
 16MB  |
 (2) 2M x 36  |
 None  |
|
 16MB  |
 (2) 1M x 36  |
 (2) 1M x 36  |
|
 24MB  |
 (2) 2M x 36  |
 (2) 1M x 36  |
|
 32MB  |
 (2) 4M x 36  |
 None  |
|
 32MB  |
 (2) 2M x 36  |
 (2) 2M x 36  |
|
 40MB  |
 (2) 4M x 36  |
 (2) 1M x 36  |
|
 48MB  |
 (2) 4M x 36  |
 (2) 2M x 36  |
|
 64MB  |
 (2) 8M x 36  |
 None  |
|
 64MB  |
 (2) 4M x 36  |
 (2) 4M x 36  |
|
 72MB  |
 (2) 8M x 36  |
 (2) 1M x 36  |
|
 80MB  |
 (2) 8M x 36  |
 (2) 2M x 36  |
|
 96MB  |
 (2) 8M x 36  |
 (2) 4M x 36  |
|
 128MB  |
 (2) 8M x 36  |
 (2) 8M x 36  |
|
 Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Banks are interchangeable.  | ||
|
 DIMM CONFIGURATION  | |
|
 Size  |
 Bank 0  |
|
 8MB  |
 (1) 1M x 64  |
|
 16MB  |
 (1) 2M x 64  |
|
 32MB  |
 (1) 4M x 64  |
|
 64MB  |
 (1) 8M x 64  |
|
 CACHE CONFIGURATION  | |
|
 Size  |
 SL1  |
|
 256KB  |
 256KB module installed  |
|
 512KB  |
 512KB module installed  |
|
 VIDEO MEMORY CONFIGURATION  |
|
 Note: Bank 0 is factory installed with 2MB of video memory and is not configurable.  |
|
 CPU SPEED SELECTION  | ||||
|
 CPU speed  |
 Clock speed  |
 Multiplier  |
 JP2  |
 JP3  |
|
 133MHz  |
 66MHz  |
 2x  |
 1 & 3, 2 & 4  |
 2 & 4, 3 & 5  |
|
 150MHz  |
 60MHz  |
 2.5x  |
 3 & 5, 4 & 6  |
 3 & 5, 4 & 6  |
|
 166MHz  |
 66MHz  |
 2.5x  |
 1 & 3, 2 & 4  |
 3 & 5, 4 & 6  |
|
 200MHz  |
 66MHz  |
 3x  |
 1 & 3, 2 & 4  |
 1 & 3, 4 & 6  |
|
 Note: Pins designated should be in the closed position.  | ||||
