INDUSTRIAL COMPUTER SOURCE
SB586P (V)
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/166/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
Unidentified |
|
Maximum Onboard Memory |
192MB (EDO supported) |
|
Maximum Video Memory |
2MB |
|
Cache |
256/512KB |
|
BIOS |
AMI |
|
Dimensions |
Unidentified |
|
I/O Options |
Floppy drive interface, IDE interface, SCSI interface, parallel port, serial ports (2), VGA feature connector, VGA port, cache slot |
|
NPU Options |
None |
|

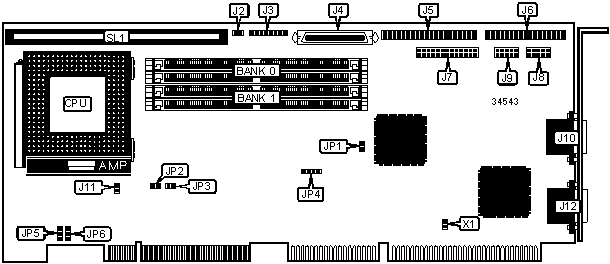

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
IDE interface LED |
J2 |
Serial port 1 |
J8 |
|
Speaker, keyboard, keylock ,reset |
J3 |
Serial port 2 |
J9 |
|
SCSI-2 interface |
J4 |
Parallel port |
J10 |
|
IDE interface |
J5 |
Chassis fan power |
J11 |
|
Floppy drive interface |
J6 |
VGA port |
J12 |
|
VGA feature connector |
J7 |
Cache slot |
SL1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
SCSI bus select 8-bit |
JP1 |
Open | |
|
SCSI bus select 16-bit |
JP1 |
Closed | |
|
» |
CMOS memory normal operation |
X1 |
Open |
|
CMOS memory clear |
X1 |
Closed | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256K x 36 |
None |
|
4MB |
(2) 512K x 36 |
None |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
None |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. 16M x 36 can only be installed in Bank 0. | ||
|
CACHE CONFIGURATION | |
|
Size |
SL1 |
|
256KB |
256KB module installed |
|
512KB |
512KB module installed |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
JP6 |
|
256KB |
Pins 1 & 2 closed |
|
512KB |
Pins 2 & 3 closed |
|
CACHE TYPE CONFIGURATION | |
|
Type |
JP5 |
|
Asynchronous |
Pins 1 & 2 closed |
|
Burst |
Pins 2 & 3 closed |
|
VIDEO MEMORY CONFIGURATION |
|
Note: Board accepts 1MB/2MB video memory. The location of the video memory is unidentified. |
|
CPU SPEED SELECTION | |||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP4 |
|
75MHz |
50MHz |
1.5x |
Open |
Open |
3 & 4 |
|
90MHz |
60MHz |
1.5x |
Open |
Open |
1 & 2, 3 & 4 |
|
100MHz |
66MHz |
1.5x |
Open |
Open |
Open |
|
100MHz |
50MHz |
2x |
Closed |
Open |
3 & 4 |
|
120MHz |
60MHz |
2x |
Closed |
Open |
1 & 2, 3 & 4 |
|
133MHz |
66MHz |
2x |
Closed |
Open |
Open |
|
166MHz |
66MHz |
2.5x |
Closed |
Closed |
Open |
|
200MHz |
66MHz |
3x |
Open |
Closed |
Open |
|
Note: Pins designated should be in the closed position. | |||||
