LANNER ELECTRONICS, INC.
AP-40AHD
|
Device Type |
Mainboard |
|
Processor |
80486SX/CX486DX/CX486DX-GP/80486DX/CX486DX2/CX486DX2-GP/ AM486DX2-SV8B/AM486DX2-V8T/AM486DE2-V8T/80486DX2/ODP486/ CX486DX4/CX486DX4-GP/AM486DX4-V8B/AM486DX4/(SL)AM486DX4/ CX 5X86/ AM 5X86 |
|
Processor Speed |
25/33/40/50(internal)/50/66(internal)/80(internal)/100(internal)/ 120(internal)/133(internal)MHz |
|
Chip Set |
ALI |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
128/256/512KB |
|
BIOS |
Award |
|
Dimensions |
185mm x 122mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), IR connector, PC/104 connectors (2) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PC/104 connector (8-bit) |
CN1 |
Reset switch |
J1 |
|
PC/104 connector (16-bit) |
CN2 |
Power LED & keylock |
J2 |
|
Serial port 1 |
CN3 |
Speaker |
J3 |
|
PS/2 mouse port |
CN4 |
IDE interface LED |
J4 |
|
Serial port 2 |
CN5 |
Turbo switch |
J5 |
|
Floppy drive interface |
CN6 |
Turbo LED |
J6 |
|
Parallel port |
CN7 |
Auxiliary keyboard connector |
KCN1 |
|
IDE interface |
CN8 |
Auxiliary power connector |
PWS1 |
|
IR connector |
IR1 |
Green PC connector |
SMI |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
PS/2 mouse IRQ12 enabled |
JP9 |
Closed |
|
PS/2 mouse IRQ12 disabled |
JP9 |
Open | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(1) 256K x 36 |
None |
|
2MB |
(1) 512K x 36 |
None |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
|
3MB |
(1) 256K x 36 |
(1) 512K x 36 |
|
4MB |
(1) 1M x 36 |
None |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
|
5MB |
(1) 1M x 36 |
(1) 256K x 36 |
|
6MB |
(1) 1M x 36 |
(1) 512K x 36 |
|
8MB |
(1) 2M x 36 |
None |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
|
9MB |
(1) 2M x 36 |
(1) 256K x 36 |
|
10MB |
(1) 2M x 36 |
(1) 512K x 36 |
|
12MB |
(1) 2M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 4M x 36 |
None |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
|
17MB |
(1) 4M x 36 |
(1) 256K x 36 |
|
18MB |
(1) 512K x 36 |
(1) 4M x 36 |
|
20MB |
(1) 4M x 36 |
(1) 1M x 36 |
|
24MB |
(1) 4M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 8M x 36 |
None |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
|
SIMM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
33MB |
(1) 8M x 36 |
(1) 256K x 36 |
|
36MB |
(1) 8M x 36 |
(1) 1M x 36 |
|
40MB |
(1) 8M x 36 |
(1) 2M x 36 |
|
48MB |
(1) 8M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 16M x 36 |
None |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
|
68MB |
(1) 16M x 36 |
(1) 1M x 36 |
|
72MB |
(1) 16M x 36 |
(1) 2M x 36 |
|
80MB |
(1) 16M x 36 |
(1) 4M x 36 |
|
92MB |
(1) 16M x 36 |
(1) 8M x 36 |
|
128MB |
(1) 16M x 36 |
(1) 16M x 36 |
|
Note: Board accepts EDO memory. | ||
|

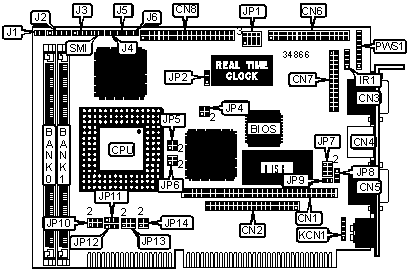

CACHE CONFIGURATION |
|
Note: Board accepts 128/256/512KB cache. The location & chip sizes are unidentified. |
|
CPU SPEED SELECTION | ||
|
Speed |
JP2 |
JP4 |
|
25MHz |
Pins 1 & 2 closed |
Open |
|
33MHz |
Pins 1 & 2 closed |
Pins 1 & 2, 3 & 4 closed |
|
40MHz |
Pins 2 & 3 closed |
Pins 3 & 4 closed |
|
50iMHz |
Pins 1 & 2 closed |
Open |
|
50MHz |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
66iMHz |
Pins 1 & 2 closed |
Pins 1 & 2, 3 & 4 closed |
|
80iMHz |
Pins 2 & 3 closed |
Pins 3 & 4 closed |
|
100iMHz |
Pins 1 & 2 closed |
Pins 1 & 2, 3 & 4 closed |
|
120iMHz |
Pins 2 & 3 closed |
Pins 3 & 4 closed |
|
133iMHz |
Pins 1 & 2 closed |
Pins 1 & 2, 3 & 4 closed |
|
CPU TYPE SELECTION | |||||
|
Type |
JP10 |
JP11 |
JP12 |
JP13 |
JP14 |
|
80486SX |
Open |
1 & 2 |
1 & 2 |
Open |
Open |
|
CX486DX |
2 & 4 |
1 & 2 |
2 & 3 |
2 & 4 |
1 & 2, 3 & 4 |
|
CX486DX-GP |
1 & 3, 4 & 6 |
1 & 2 |
2 & 3 |
1 & 3, 4 & 6 |
Open |
|
80486DX |
Open |
1 & 2 |
2 & 3 |
Open |
Open |
|
CX486DX2 |
2 & 4 |
1 & 2 |
2 & 3 |
2 & 4 |
1 & 2, 3 & 4 |
|
CX486DX2-GP |
1 & 3, 4 & 6 |
1 & 2 |
2 & 3 |
1 & 3, 4 & 6 |
Open |
|
AM486DX2-SV8B |
2 & 4, 3 & 5 |
2 & 3 |
2 & 3 |
2 & 4 |
1 & 2, 3 & 4 |
|
AM486DX2-V8T |
Open |
1 & 2 |
2 & 3 |
3 & 5 |
Open |
|
AM486DE2-66 V8T |
2 & 4 |
1 & 2 |
2 & 3 |
2 & 4, 3 & 5 |
1 & 2, 3 & 4 |
|
80486DX2 |
Open |
1 & 2 |
2 & 3 |
Open |
Open |
|
ODP486 |
Open |
1 & 2 |
2 & 3 |
Open |
Open |
|
CX486DX4 |
2 & 4 |
1 & 2 |
2 & 3 |
2 & 4 |
1 & 2, 3 & 4 |
|
CX486DX4-GP |
1 & 3, 4 & 6 |
1 & 2 |
2 & 3 |
1 & 3, 4 & 6 |
Open |
|
AM486DX4-SV8B |
2 & 4 |
2 & 3 |
2 & 3 |
2 & 4 |
1 & 2, 3 & 4 |
|
AM486DX4-V8T |
Open |
1 & 2 |
2 & 3 |
Open |
Open |
|
(SL) AM486DX4 |
Open |
1 & 2 |
2 & 3 |
2 & 4 |
1 & 2, 3 & 4 |
|
CX 5X86 |
2 & 4 |
1 & 2 |
2 & 3 |
2 & 4 |
1 & 2, 3 & 4 |
|
AM 5X86 |
2 & 4, 3 & 5 |
2 & 3 |
2 & 3 |
2 & 4 |
1 & 2, 3 & 4 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU VOLTAGE SELECTION | |||
|
Voltage |
JP5 |
JP6 | |
| » |
3.3v |
Pins 1 & 2, 3 & 4 closed |
Open |
|
5v |
Open |
Pins 1 & 2, 3 & 4 closed | |
|
WATCHDOG TIMER ACTIVE SELECTION | ||
|
Time out |
JP1 | |
|
.5 sec |
Pins 2 & 3 closed | |
|
1 sec |
Pins 5 & 6 closed | |
|
2 sec |
Pins 8 & 9 closed | |
| » |
4 sec |
Pins 11 & 12 closed |
|
8 sec |
Pins 10 & 11 closed | |
|
16 sec |
Pins 7 & 8 closed | |
|
32 sec |
Pins 4 & 5 closed | |
|
64 sec |
Pins 1 & 2 closed | |
|
WATCHDOG TIMER ACTIVE SELECTION | ||
|
Setting |
JP8 | |
| » |
Reset system |
Pins 1 & 2 closed |
|
NMI system |
Pins 3 & 4 closed | |
|
Disabled |
Open | |
|
ROM DISK ADDRESS SELECTION | |
|
Setting |
JP7 |
|
C8000 |
Pins 1 & 2 closed |
|
D0000 |
Pins 3 & 4 closed |
|
D8000 |
Pins 5 & 6 closed |
