LANNER ELECTRONICS, INC.
EM-500
|
Device Type |
Single board computer |
|
Processor |
CX 6X86/CX M2/AM K5/AM K6/Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/200/233MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
Unidentified |
|
Maximum Onboard Memory |
128MB |
|
Maximum Video Memory |
Unidentified |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
203mm x 146mm |
|
I/O Options |
32-bit PCI slot, Ethernet 100BaseT connector, floppy drive interface, IDE interface, IDE parallel port, PS/2 mouse interface, serial ports (2), VGA interface, IR connector, USB connectors (2), PC/104 connectors (2), flat panel connector, green PC connector |
|
NPU Options |
None |
|

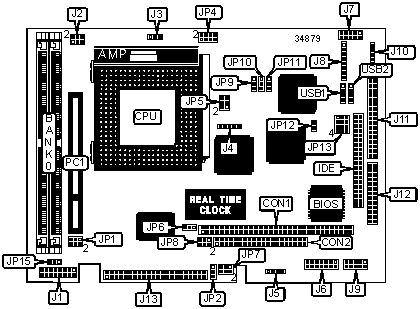

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PC/104 connector (8-bit) |
CON1 |
PS/2 mouse interface |
J8/pins 1 - 4 |
|
PC/104 connector (16-bit) |
CON2 |
Auxiliary keyboard connector |
J8/pins 5 - 8 |
|
IDE interface |
IDE |
Serial port 1 |
J9 |
|
VGA interface |
J1 |
Power connector |
J10 |
|
IDE interface LED |
J2/pins 1 & 2 |
Floppy drive interface |
J11 |
|
Power LED |
J2/pins 3 & 4 |
Parallel port |
J12 |
|
Reset switch |
J2/pins 5 & 6 |
Flat panel connector |
J13 |
|
CPU fan power |
J3 |
Green PC connector |
JP12 |
|
IR connector |
J4 |
USB connector 1 |
USB1 |
|
Power connector |
J5 |
USB connector 2 |
USB2 |
|
Serial port 2 |
J6 |
32-bit PCI slot |
PC1 |
|
Ethernet 100 base-T connector |
J7 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
JP2 |
Unidentified |
|
» |
Factory configured - do not alter |
JP6 |
Pins 1 & 2 closed |
|
» |
Flat panel voltage select 5v |
JP15 |
Pins 1 & 2 closed |
|
Flat panel voltage select 3.3v |
JP15 |
Pins 2 & 3 closed | |
|
SIMM CONFIGURATION | |
|
Size |
Bank 0 |
|
8MB |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
|
CACHE CONFIGURATION |
|
Note: 512KB cache is factory installed and is not configurable. The location is unidentified. |
|
VIDEO MEMORY CONFIGURATION |
|
Note: The size of the video memory is unidentified. The location is unidentified. |
|
CPU SPEED SELECTION (CX 6X86) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP9 |
JP10 |
JP11 |
|
120MHz |
50MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
|
133MHz |
55MHz |
2x |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
|
150MHz |
60MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
|
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU SPEED SELECTION (CX M2) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP9 |
JP10 |
JP11 |
|
200MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
233MHz |
75MHz |
2x |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU SPEED SELECTION (AM K5) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP9 |
JP10 |
JP11 |
|
75MHz |
50MHz |
1.5x |
Open |
2 & 3 |
2 & 3 |
2 & 3 |
|
90MHz |
60MHz |
1.5x |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
100MHz |
66MHz |
1.5x |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
120MHz |
60MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
|
133MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
150MHz |
60MHz |
2.5x |
1 & 2, 3 & 4 |
2 & 3 |
2 & 3 |
1 & 2 |
|
166MHz |
66MHz |
2.5x |
1 & 2, 3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
200MHz |
66MHz |
3x |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU SPEED SELECTION (AM K6) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP9 |
JP10 |
JP11 |
|
166MHz |
66MHz |
2.5x |
1 & 2, 3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
200MHz |
66MHz |
3x |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
233MHz |
66MHz |
3.5x |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU SPEED SELECTION (INTEL) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP9 |
JP10 |
JP11 |
|
75MHz |
50MHz |
1.5x |
Open |
2 & 3 |
2 & 3 |
2 & 3 |
|
90MHz |
60MHz |
1.5x |
Open |
2 & 3 |
2 & 3 |
1 & 2 |
|
100MHz |
66MHz |
1.5x |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
120MHz |
60MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
|
133MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
150MHz |
60MHz |
2.5x |
1 & 2, 3 & 4 |
2 & 3 |
2 & 3 |
1 & 2 |
|
166MHz |
66MHz |
2.5x |
1 & 2, 3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
200MHz |
66MHz |
3x |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU SPEED SELECTION (INTEL MMX) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP9 |
JP10 |
JP11 |
|
166MHz |
66MHz |
2.5x |
1 & 2, 3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
200MHz |
66MHz |
3x |
3 & 4 |
2 & 3 |
1 & 2 |
2 & 3 |
|
233MHz |
66MHz |
3.5x |
Open |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU VOLTAGE SELECTION | ||
|
Voltage |
JP4 | |
|
2.5v |
Pins 3 & 4, 7 & 8 closed | |
|
2.6v |
Pins 1 & 2, 7 & 8 closed | |
|
2.7v |
Pins 7 & 8 closed | |
| » |
2.8v |
Pins 1 & 2, 3 & 4, 5 & 6 closed |
|
2.9v |
Pins 3 & 4, 5 & 6 closed | |
|
3.0v |
Pins 1 & 2, 5 & 6 closed | |
|
3.1v |
Pins 5 & 6 closed | |
|
3.2v |
Pins 1 & 2, 3 & 4 closed | |
|
3.3v |
Pins 3 & 4 closed | |
|
3.4v |
Pins 1 & 2 closed | |
|
3.5v |
Open | |
|
SERIAL PORT 2 SELECTION | ||
|
Type |
JP7 | |
| » |
RS-232 |
Pins 1 & 2 closed |
|
RS-422 |
Pins 3 & 4 closed | |
|
RS-485 |
Pins 5 & 6 closed | |
|
FLASH DISK ADDRESS SELECTION | |
|
Address |
JP8 |
|
C800 |
Pins 1 & 2 closed |
|
D000 |
Pins 3 & 4 closed |
|
D800 |
Pins 5 & 6 closed |
|
FLAT PANEL SELECTION | ||
|
Type |
JP1 | |
|
1024 x 768 DSTN |
Pins 1 & 2, 3 & 4, 5 & 6 closed | |
|
1280 x 1024 TFT |
Pins 3 & 4, 5 & 6 closed | |
|
640 x 480 DSTN |
Pins 1 & 2, 5 & 6 closed | |
|
800 x 600 DSTN |
Pins 5 & 6 closed | |
|
640 x 480 Sharp TFT |
Pins 1 & 2, 3 & 4 closed | |
| » |
640 x 480 18-bit TFT |
Pins 3 & 4 closed |
|
1024 x 768 TFT |
Pins 1 & 2 closed | |
|
800 x 600 TFT |
Open | |
|
WATCHDOG TIMER SELECTION | ||
|
Time out |
JP13 | |
|
.5 sec |
Pins 1 & 5 closed | |
|
1 sec |
Pins 2 & 6 closed | |
|
2 sec |
Pins 3 & 7 closed | |
| » |
4 sec |
Pins 4 & 8 closed |
|
8 sec |
Pins 8 & 12 closed | |
|
16 sec |
Pins 7 & 11 closed | |
|
32 sec |
Pins 6 & 10 closed | |
|
64 sec |
